BGA2711,115 - NXP Semiconductors
BGA2711 Series 5 V 1 to 2 GHz 13.1 dB Gain MMIC Wideband Amplifier - SOT363
Technical Details
| Case/Package | SOT-363 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Frequency | 3.6GHz |
| Gain | 13.9dB |
| Harmonized Tariff Schedule (HTS) Code | 8542.33.00.01 |
| Impedance | 50Ω |
| Introduction Date | 2001-03-30 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Frequency | 3.6GHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Max Supply Current | 16mA |
| Max Supply Voltage | 6V |
| Mount | Surface Mount |
| Noise Figure | 4.8dB |
| Nominal Supply Current | 12.6mA |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operating Supply Current | 12.6mA |
| Operating Supply Voltage | 5V |
| P1dB | 2.8dBm |
| Packaging | Tape & Reel (TR) |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Test Frequency | 1GHz |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

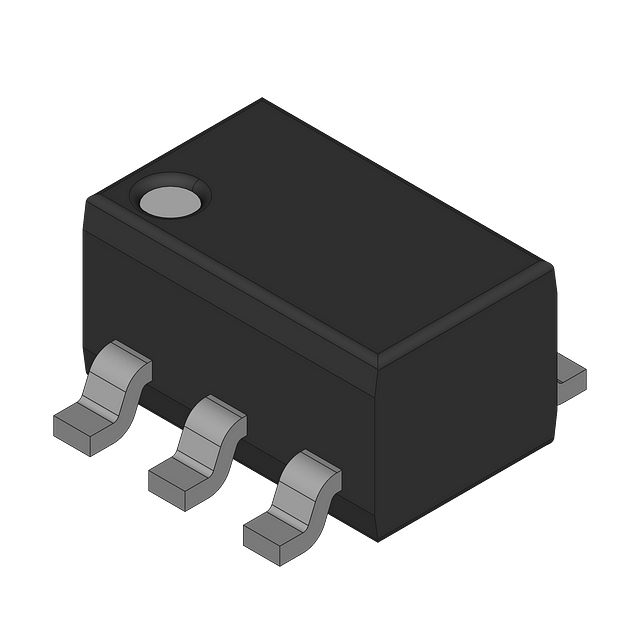

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Avago | Unknown | ||
| Avago | Obsolete | ||
| RFMD | Unknown | ||
| TE Connectivity | Unknown | ||
| NEC | Obsolete | ||
| California Eastern Laboratories | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Infineon | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 121794
|
$ | 0.1189 | 0.0987 | 0.088 | |||||
| Verical |
US: 121794
|
$ | 0.11 | |||||||
