BUK9504-40A,127 - NXP Semiconductors
Trans MOSFET N-CH 40V 198A Automotive 3-Pin(3+Tab) TO-220AB Rail
Technical Details
| Case/Package | TO-220AB |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 75A |
| Drain to Source Breakdown Voltage | 40V |
| Drain to Source Resistance | 5.9mΩ |
| Drain to Source Voltage (Vdss) | 40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 306ns |
| Gate to Source Voltage (Vgs) | 15V |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.75 |
| Input Capacitance | 8.26nF |
| Introduction Date | 2001-10-24 |
| Lifecycle Status | Obsolete |
| Max Dual Supply Voltage | 40V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 300W |
| Radiation Hardening | No |
| Rds On Max | 4mΩ |
| REACH SVHC | Yes |
| Rise Time | 309ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 365ns |
| Turn-On Delay Time | 62ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

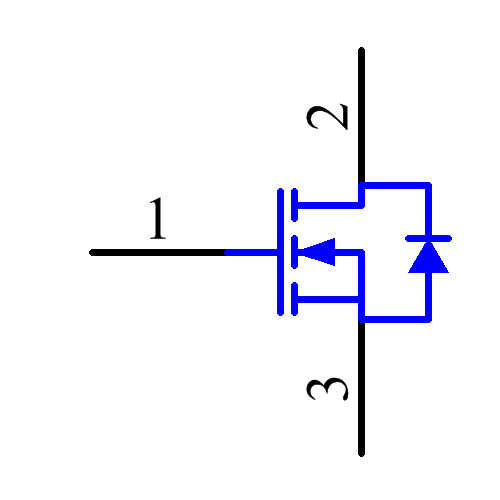

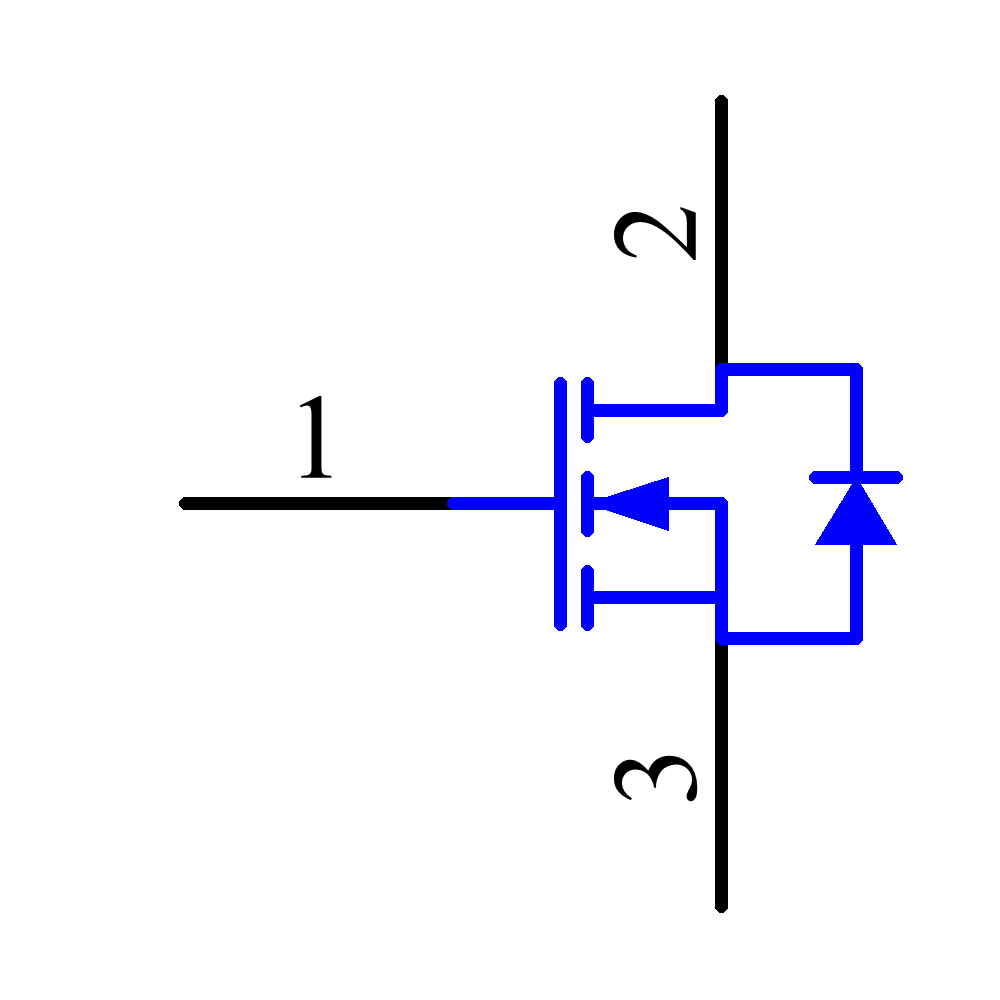

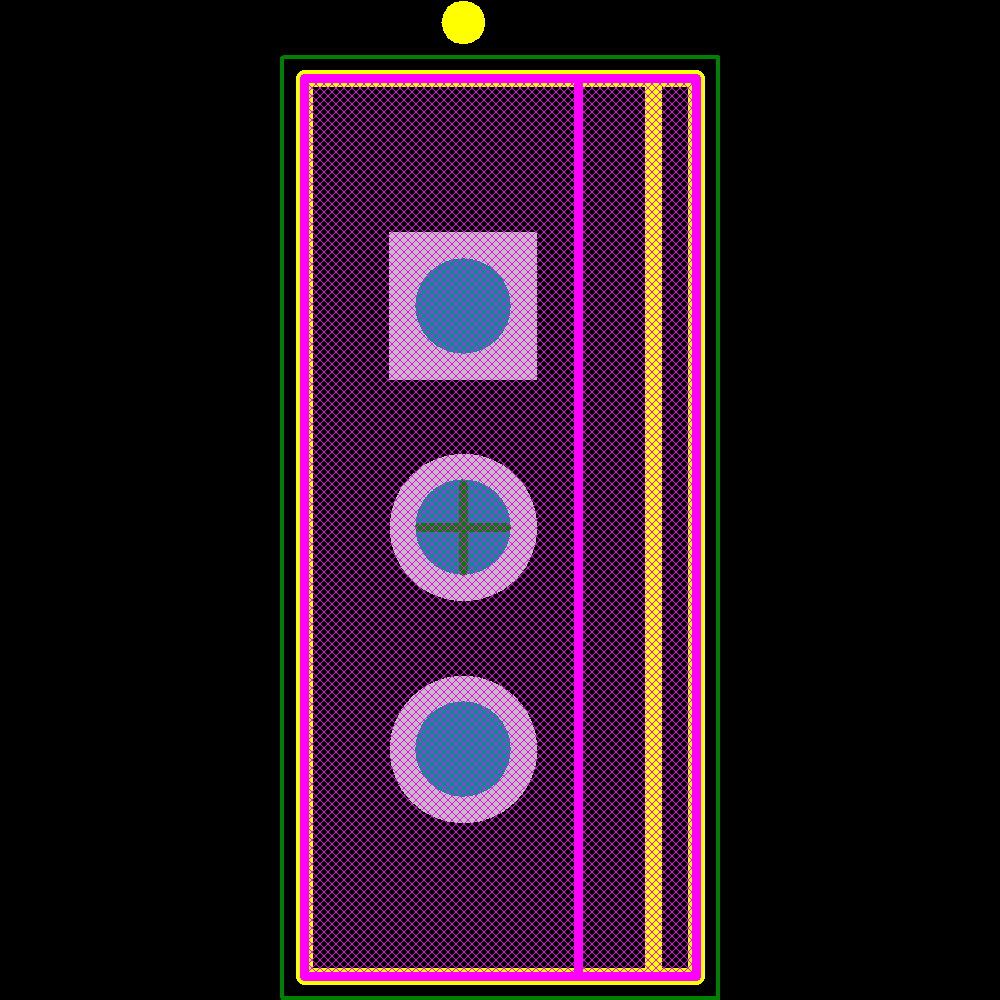

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Vishay | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Advanced Power Technology | Unknown | ||
| Fairchild Semiconductor | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 5030
|
$ | 1.46 | 1.39 | 1.24 | 1.17 | ||||
| Verical |
US: 4000
|
$ | 1.55 | 1.4625 | ||||||
| Verical |
US: 1000
|
$ | 1.55 | 1.4625 | ||||||
