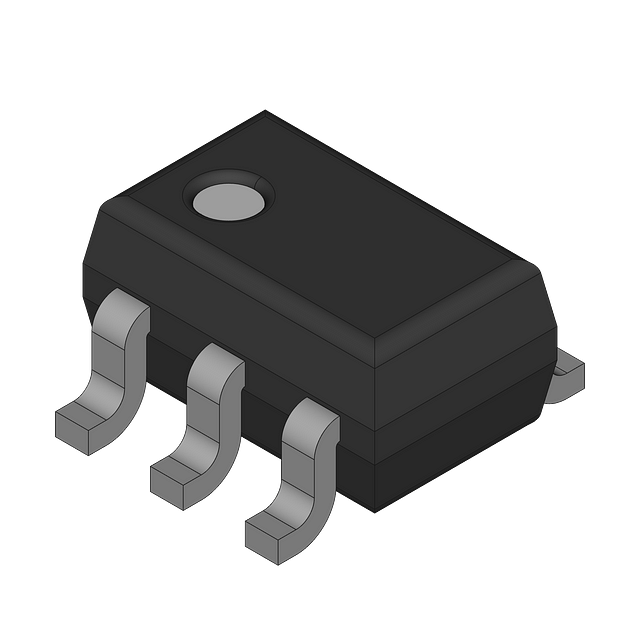

BZA862AVL,115 - NXP Semiconductors
ESD Suppressor Diode TVS Uni-Dir 6.51V Automotive 5-Pin TSSOP T/R
Technical Details
| Breakdown Voltage | 6.2V |
| Capacitance | 22pF |
| Case/Package | SOT-353 |
| China RoHS | Compliant |
| Clamping Voltage | 4V |
| Contact Plating | Tin |
| Depth | 1.35mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 1.2V |
| Height | 6.35mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2003-10-22 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 2.2mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 6.51V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Max Surge Current | 850mA |
| Min Breakdown Voltage | 5.89V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Operating Supply Voltage | 6.2V |
| Peak Pulse Current | 850mA |
| Peak Pulse Power | 6W |
| Peak Reverse Current | 100nA |
| Polarity | Unidirectional |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 4V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Weight | 4.535924g |
| Width | 6.35mm |
| Working Voltage | 6.51V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 134158
|
$ | 0.1802 | 0.1496 | 0.1333 | |||||
| Verical |
US: 133786
|
$ | 0.1666 | |||||||
