MC908QB4CPE - NXP Semiconductors
ROHS3Compliant Through Hole FLASH Internal Microcontroller -40C~85C TA 8MHz 128x 8 2.7V~5.5V
Technical Details
| Access Time | 8µs |
| ADC Channels (Resolution) | 10-Ch 10-Bit |
| Case/Package | DIP |
| China RoHS | Compliant |
| Core Architecture | HC08 |
| Data Bus Width | 8b |
| Density | 32kb |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| EEPROM Memory Size | 0B |
| Frequency | 8MHz |
| Halogen Free | Halogen Free |
| Height - Seated (Max) | 4.44mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.00.01 |
| Interface | SPI |
| Introduction Date | 2005-06-07 |
| Lead Free | Lead Free |
| Length | 19.175mm |
| Lifecycle Status | Production |
| Max Frequency | 8MHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 8.5mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 4kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of I/Os | 1 |
| Number of Interrupts | 1 |
| Number of Pins | 16 |
| Number of Programmable I/O | 13 |
| Number of Terminals | 16 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Peripherals | LVD, POR, PWM |
| RAM Size | 128B |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 2.54mm |
| Termination | Through Hole |
| Width | 7.62mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

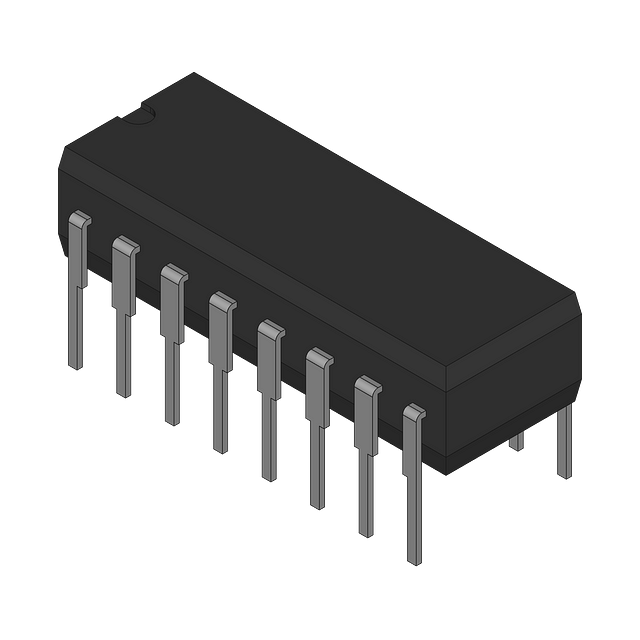

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| NXP Semiconductors | Production | ||
| Freescale Semiconductor | Obsolete | ||
| Freescale Semiconductor | Obsolete | ||
| NXP Semiconductors | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 246
|
$ | 2.85 | 2.71 | 2.42 | 2.28 | ||||
| Verical |
US: 241
|
$ | 3.025 | 2.85 | ||||||
