N74F86D,623 - NXP Semiconductors
Now Nexperia N74F86D - Xor Gate, F/fast Series, 4-FUNC, 2-INPUT, Ttl, PDSO14
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | -1mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 1992-01-01 |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | OR, XOR |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Max Supply Current | 28mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 5V |
| Packaging | Cut Tape (CT) |
| Propagation Delay | 7.5ns |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 4.2ns |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

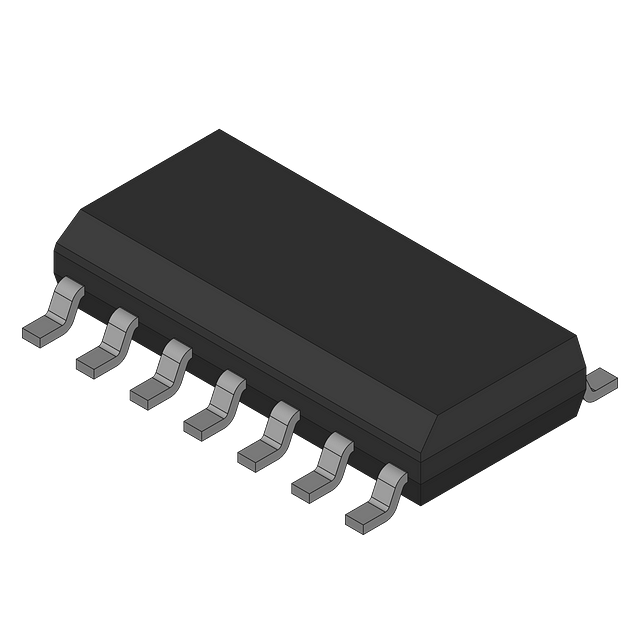

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 12500
|
$ | 0.2318 | 0.1924 | 0.1715 | |||||
| Verical |
US: 5000
|
$ | 0.2144 | |||||||
| Verical |
US: 5000
|
$ | 0.2144 | |||||||
| Verical |
US: 2500
|
$ | 0.2144 | |||||||
