Technical Details
| Accuracy | 1.25% |
| Case/Package | SOP |
| Contact Plating | Tin |
| Dropout Voltage | 1.07V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2011-07-19 |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 11.8V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Min Current Limit | 1A |
| Min Input Voltage | 3.2V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Regulators | 1 |
| Number of Terminals | 3 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Output Voltage Accuracy | 1.25% |
| Packaging | Tape & Reel (TR) |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 68dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Terminal Pitch | 2.3mm |
| Voltage Tolerance | 2.5% |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

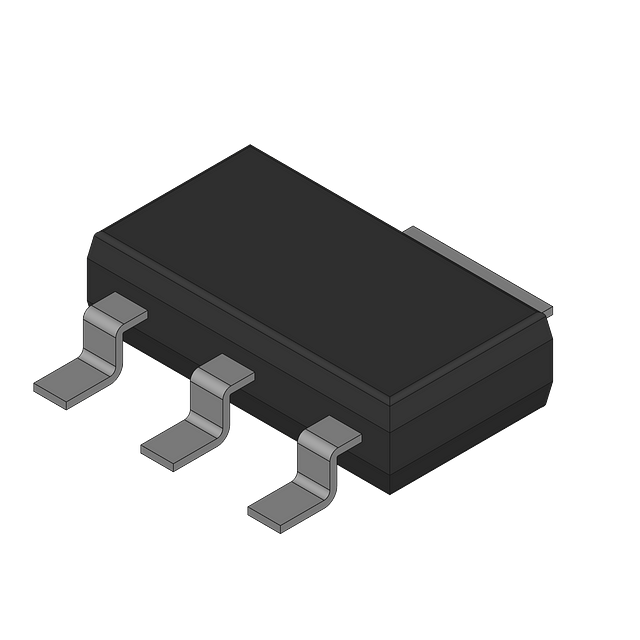

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Diodes Inc. | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| Analog Devices | Unknown | ||
| Microchip | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 255825
|
$ | 0.2648 | 0.2198 | 0.196 | |||||
| Verical |
US: 232825
|
$ | 0.245 | |||||||
| Verical |
US: 18000
|
$ | 0.245 | |||||||
| Verical |
US: 5000
|
$ | 0.245 | |||||||
