PCA9535D,112 - NXP Semiconductors

PCA9535 Series 16-Bit I2C-Bus / SMBus Low Power I/O Port w/ Interrupt - SOIC 24

Technical Details

Case/Package	SOP
China RoHS	Compliant
Frequency	400kHz
Height - Seated (Max)	2.65mm
Interface	I2C, SMBus
Lead Free	Lead Free
Length	15.4mm
Lifecycle Status	EOL
Max Frequency	400kHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Mount	Surface Mount
Number of Bits	16
Number of Channels	16
Number of I/Os	16
Number of Pins	24
Number of Ports	2
Number of Terminals	24
Operating Supply Voltage	3V
Packaging	Cut Tape
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Temperature Grade	Industrial
Terminal Pitch	1.27mm
Weight	1.098005g
Width	7.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

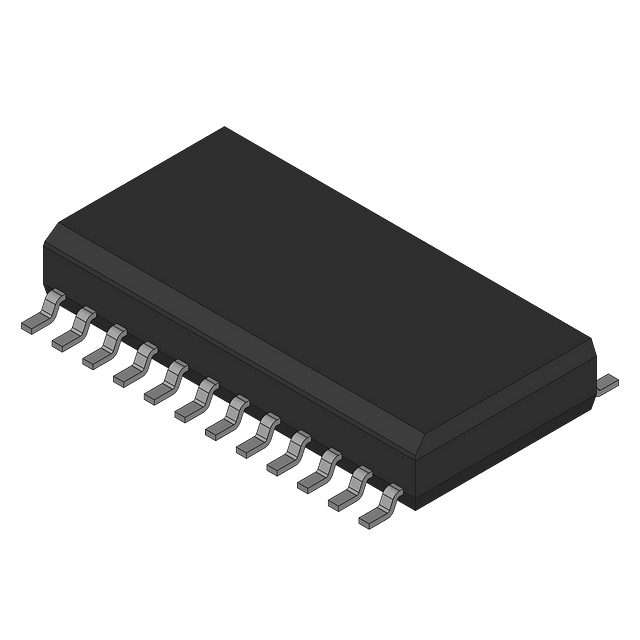

NXP Semiconductors PCA9535D,112 | Rochester Electronics

Rochester Electronics

Datasheets

Future Electronics

Lifecycle Status Indicator

EOL

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
NXP Semiconductors	PCA9535D-T	Obsolete
NXP Semiconductors	PCA9535D	EOL
onsemi	CAT9555WI-T1	Obsolete
NXP Semiconductors	PCA9535CD,118	Obsolete
onsemi	CAT9555WI	Obsolete
NXP Semiconductors	935269567118	Production
Texas Instruments	PCA9535DWG4	Unknown
Texas Instruments	PCA9535DWRG4	Unknown
NXP Semiconductors	PCA9555D/G,118	Obsolete
Texas Instruments	PCA9555DWG4	Unknown

See more alternatives See less alternatives
