PCA9555DB,112 - NXP Semiconductors
I2C/SMBus Interface 100kHz/400kHz 5.5V 24-Pin SSOP Bulk
Technical Details
| Case/Package | SSOP |
| China RoHS | Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 400kHz |
| Height - Seated (Max) | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Interface | I2C, SMBus, Serial |
| Introduction Date | 2001-05-26 |
| Lead Free | Lead Free |
| Length | 8.2mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 160mA |
| Number of Bits | 16 |
| Number of I/Os | 16 |
| Number of Pins | 24 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Supply Voltage | 3V |
| Output Current | 50mA |
| Power Dissipation | 200mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

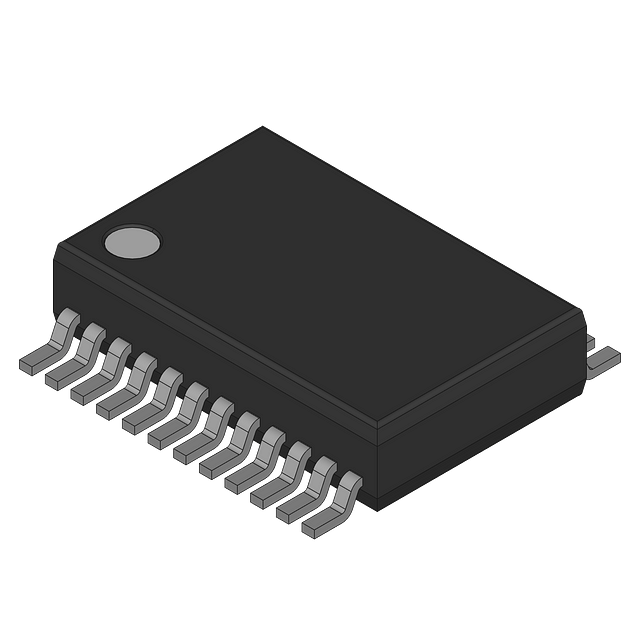

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 43
|
$ | 1.32 | 1.10 | 0.9768 | |||||
