PCA9555 Series 5.5V 160mA 400 kHz 16-bit I2C-bus and SMBus I/O Port-TSSOP-24

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Case/Package TSSOP
China RoHS Compliant
Country of Origin Thailand
Export Control Classification Number (ECCN) Code EAR99
Height 1.1mm
Height - Seated (Max) 1.1mm
Harmonized Tariff Schedule (HTS) Code 8542.39.00.01
Interface I2C, SMBus
Introduction Date 2003-05-13
Length 7.8mm
Lifecycle Status Production
Max Frequency 400kHz
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 85°C
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Supply Voltage 2.3V
Nominal Supply Current 135µA
Number of Bits 16
Number of Channels 16
Number of I/Os 16
Number of Pins 24
Number of Ports 2
Number of Terminals 24
Operating Supply Voltage 3V
REACH SVHC Yes
RoHS Compliant
Schedule B 8542310000, 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Temperature Grade Industrial
Terminal Pitch 650µm
Width 4.4mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

NXP Semiconductors PCA9555PW,118 | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Future Electronics

Lifecycle Status Indicator

   Production

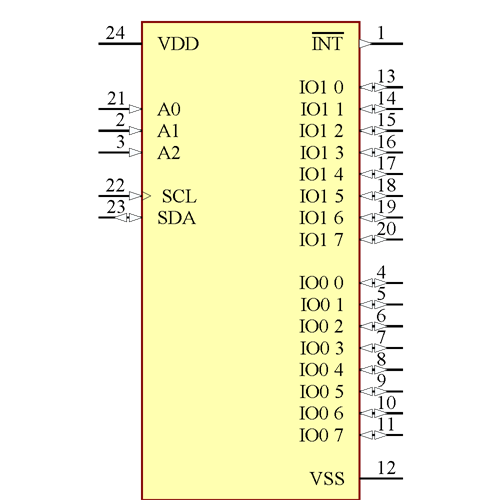

Symbol

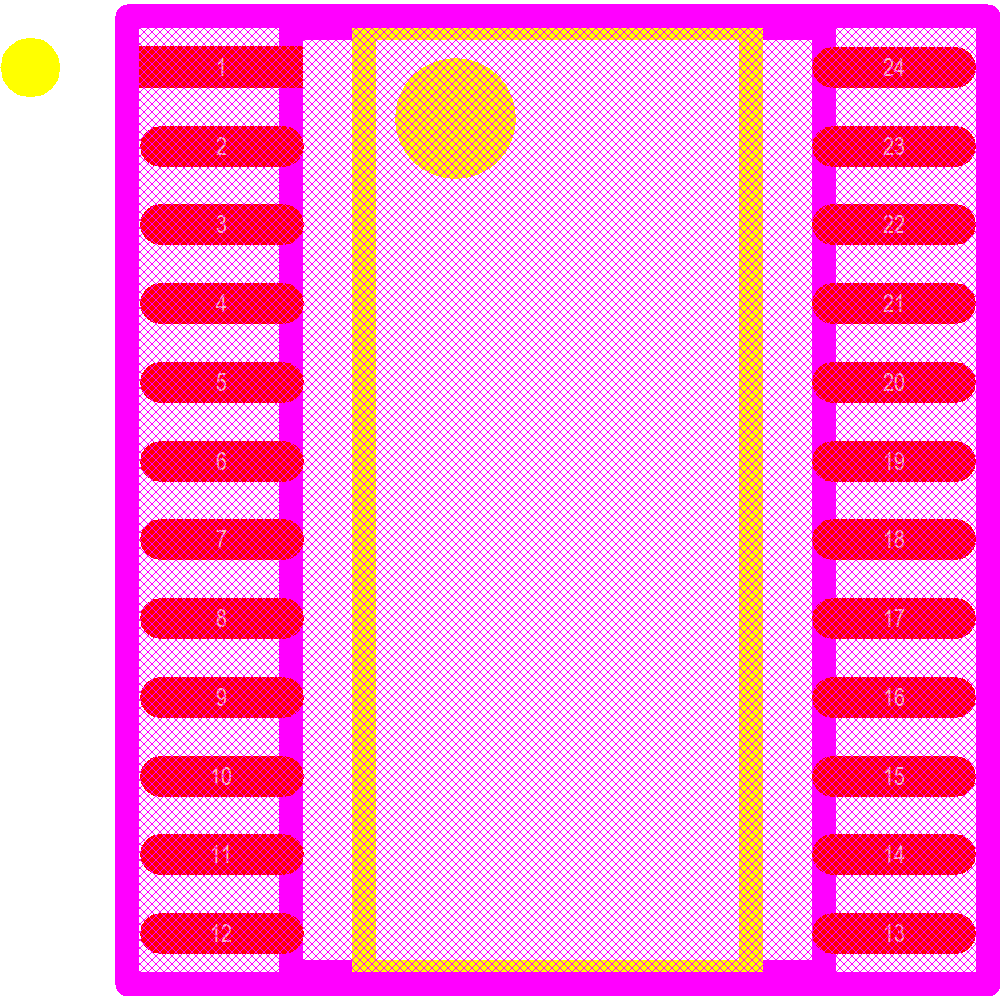

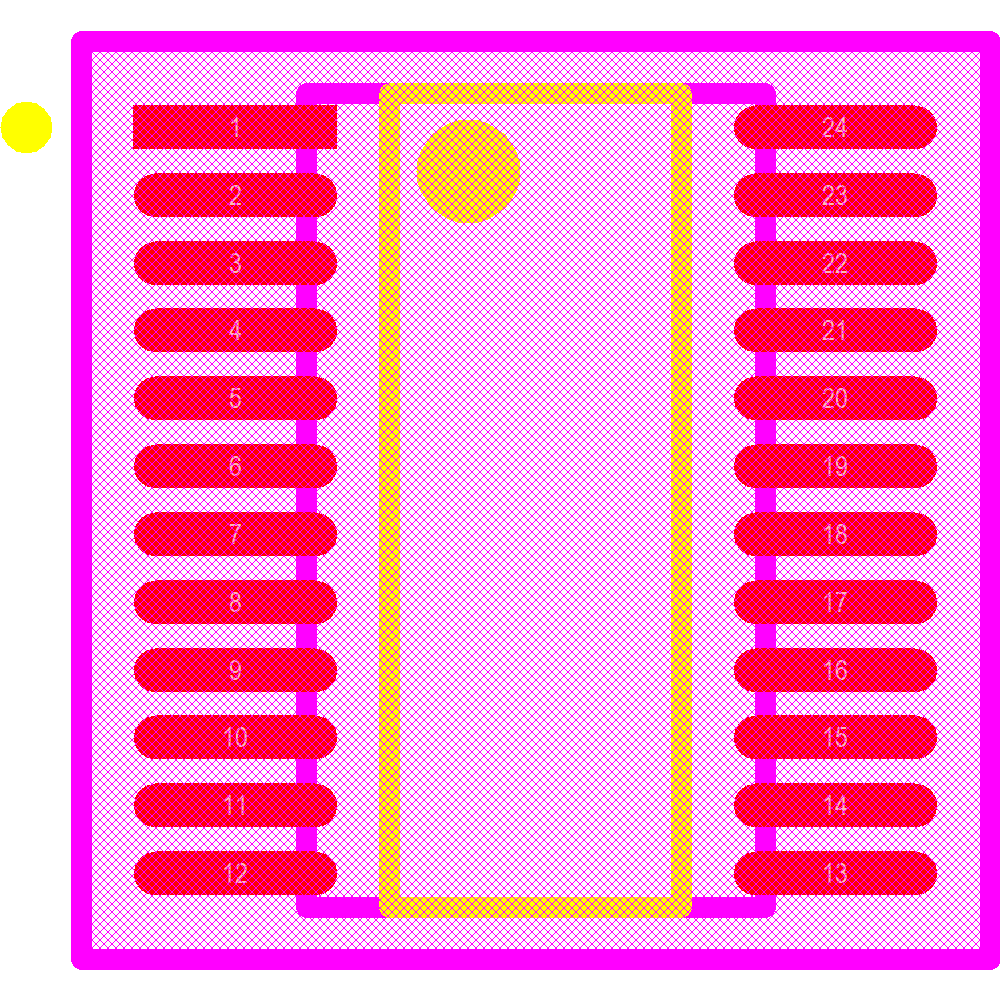

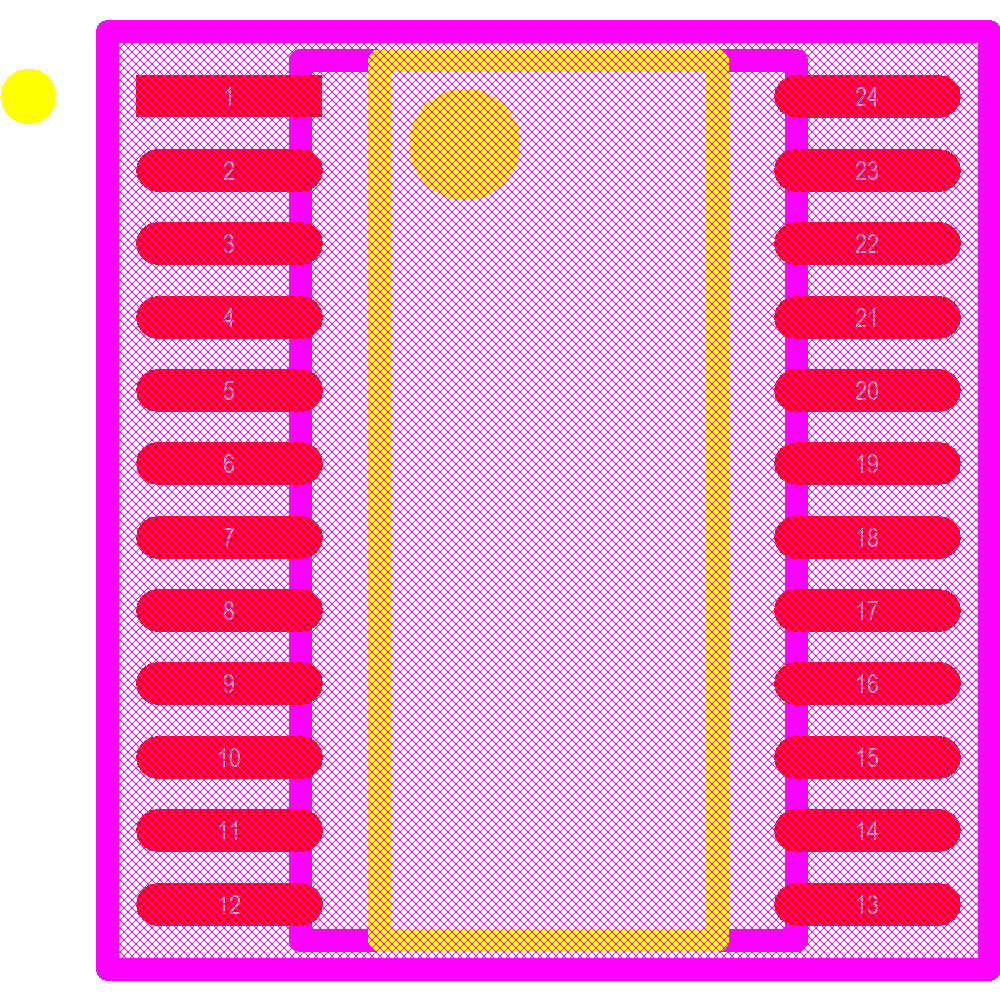

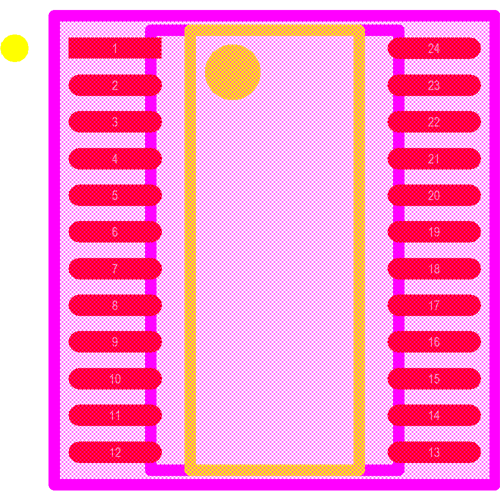

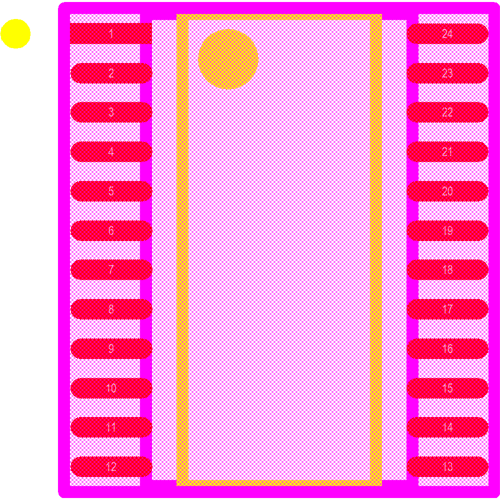

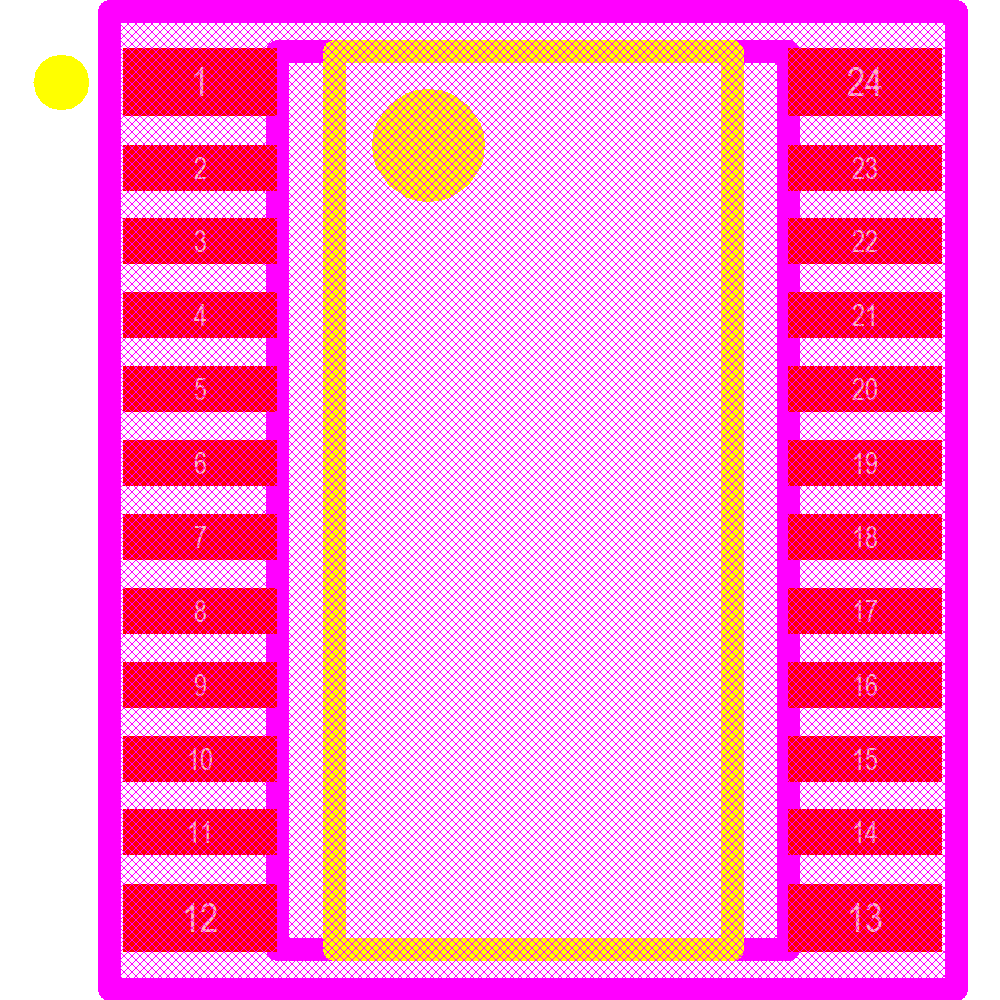

Footprint
