PCA9622DR,118 - NXP Semiconductors
PCA9622 Series 100 mA 5.5 V 1 MHz SMT 16-bit I2C-Bus LED Driver - TSSOP-32
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 1MHz |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 2009-06-12 |
| Lead Free | Lead Free |
| Length | 11mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 1.6A |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1.8W |
| Max Supply Current | 12mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Number of Characters | 16 |
| Number of Circuits | 1 |
| Number of Outputs | 16 |
| Number of Pins | 32 |
| Number of Segments | 16 |
| Number of Terminals | 32 |
| Operating Supply Voltage | 3.3V |
| Output Current | 100mA |
| Output Current per Channel | 100mA |
| Output Voltage | 40V |
| Power Dissipation | 1.8W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Temperature Grade | Industrial |
| Terminal Pitch | 650µm |
| Width | 6.1mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

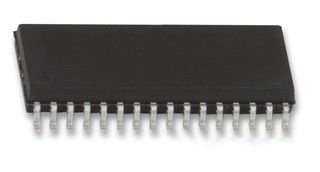

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Flip Electronics |
US: 8000
|
$ | ||||||||
| Farnell |
DE: 0
|
$ | 4.6474 | 3.6859 | 3.3777 | 3.3037 | 2.675 | 2.675 | ||
| Farnell |
DE: 0
|
$ | 2.675 | 2.675 | ||||||
