PCA9685PW,118 - NXP Semiconductors

PCA9685 Series 5.5V 25 mA 1 MHz 12-bit PWM Fm+I2C-Bus LED Controller - TSSOP-28

Technical Details

Ambient Temperature Range High	85°C
Case/Package	TSSOP
China RoHS	Compliant
Dimming	PWM
Export Control Classification Number (ECCN) Code	EAR99
Frequency	25MHz
Height	1.1mm
Height - Seated (Max)	1.1mm
High Level Output Current	10mA
Harmonized Tariff Schedule (HTS) Code	8542.39.00.01
Introduction Date	2008-07-25
Lead Free	Lead Free
Length	9.7mm
Lifecycle Status	Production
Low Level Output Current	400A
Max Operating Temperature	85°C
Max Power Dissipation	400mW
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Mount	Surface Mount
Nominal Supply Current	6mA
Number of Characters	16
Number of Circuits	1
Number of Outputs	16
Number of Pins	28
Number of Terminals	28
Operating Supply Voltage	3V
Output Current	25mA
Output Current per Channel	25mA
Output Voltage	5V
Packaging	Tape and Reel
Power Dissipation	400W
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Temperature Grade	Industrial
Terminal Pitch	650µm
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

NXP Semiconductors PCA9685PW,118 | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

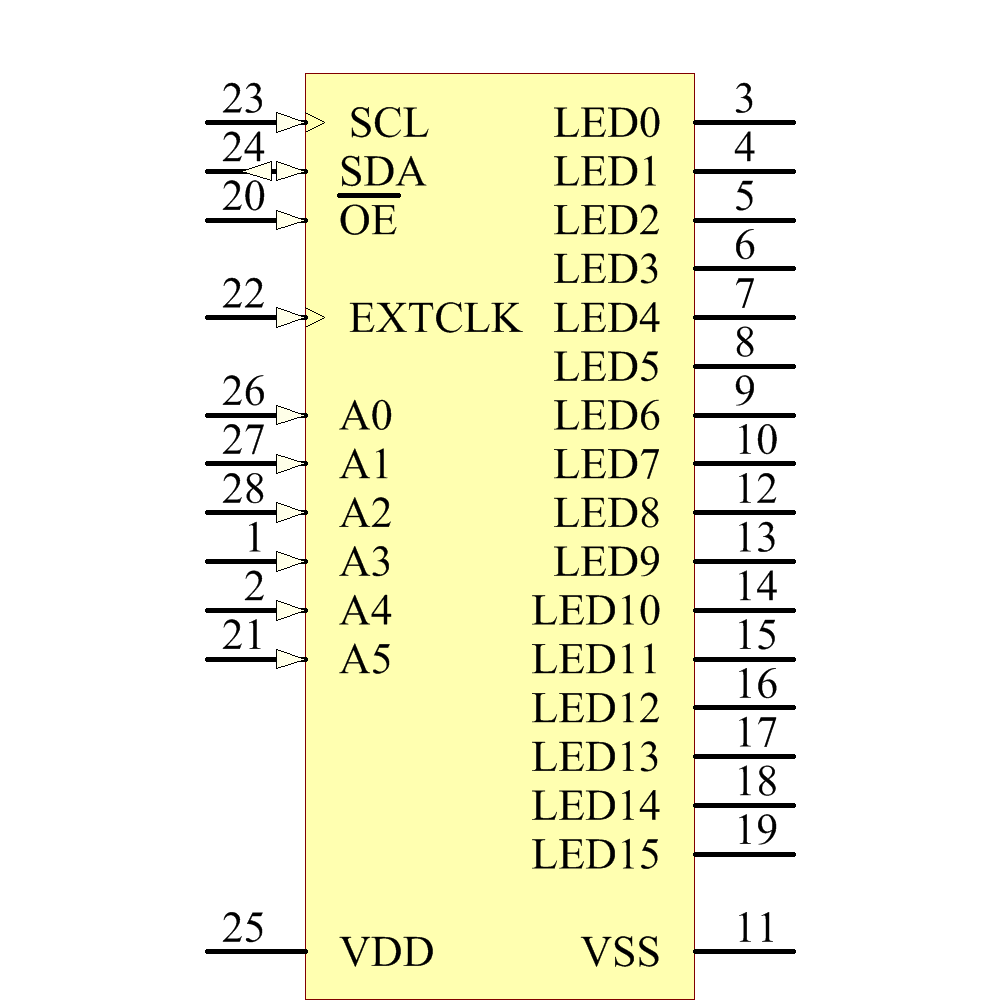

PCA9685PW,118 Symbol - NXP Semiconductors

PCA9685PW,118 Symbol - NXP Semiconductors

PCA9685PW,118 Symbol - NXP Semiconductors

PCA9685PW,118 Symbol - NXP Semiconductors

‹ ›

Footprint

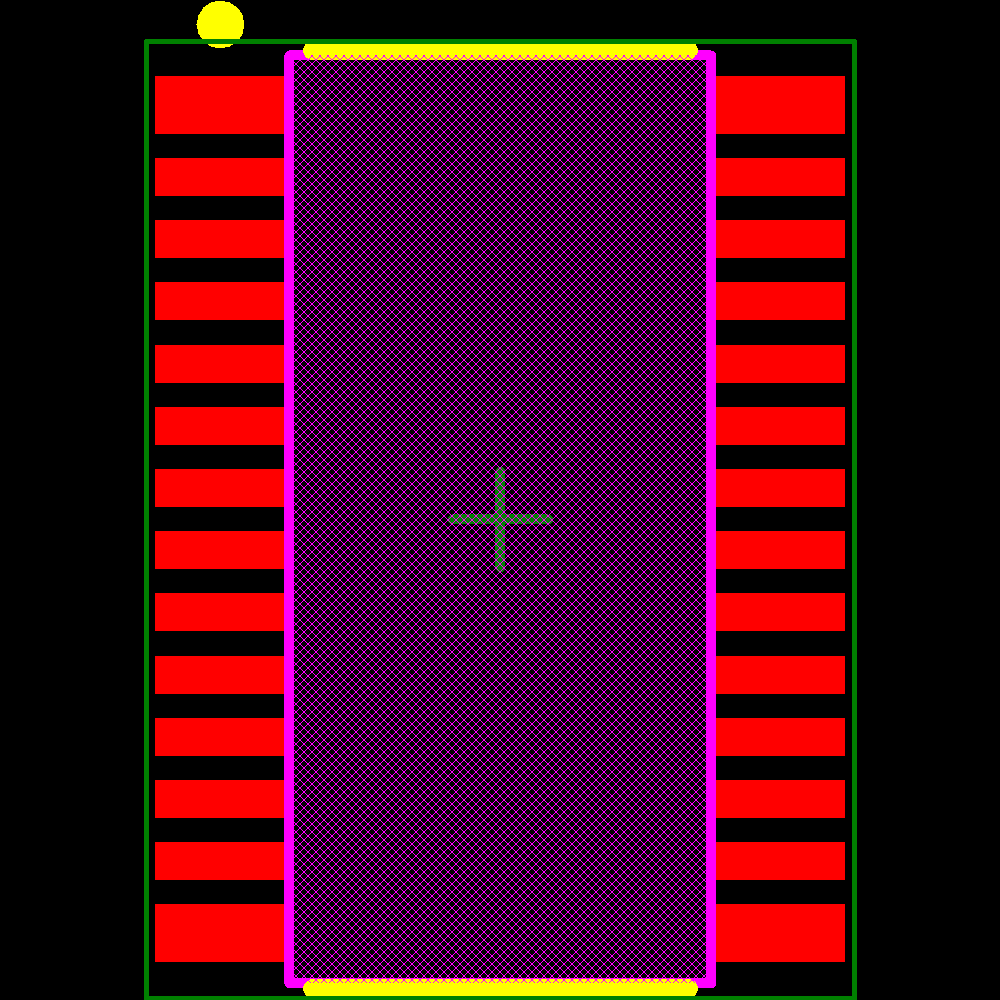

PCA9685PW,118 Footprint - NXP Semiconductors
