Technical Details
| Breakdown Voltage | -40V |
| Case/Package | TO-236-3 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 20mA |
| Drain to Source Breakdown Voltage | 40V |
| Drain to Source Resistance | 30Ω |
| Drain to Source Voltage (Vdss) | 40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -40V |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.00.95 |
| Input Capacitance | 6pF |
| Introduction Date | 1993-03-01 |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Breakdown Voltage | 40V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Digi-Reel® |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Weight | 200.998119mg |
| Width | 1.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

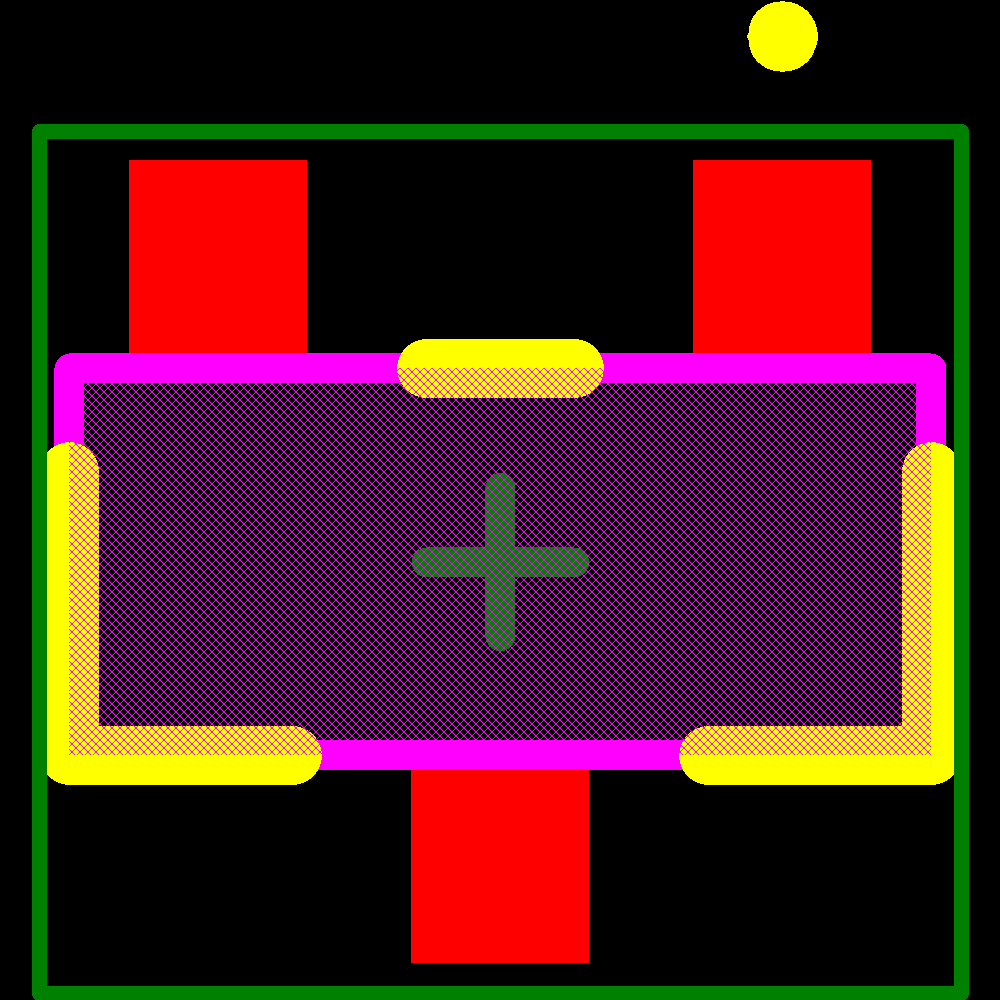

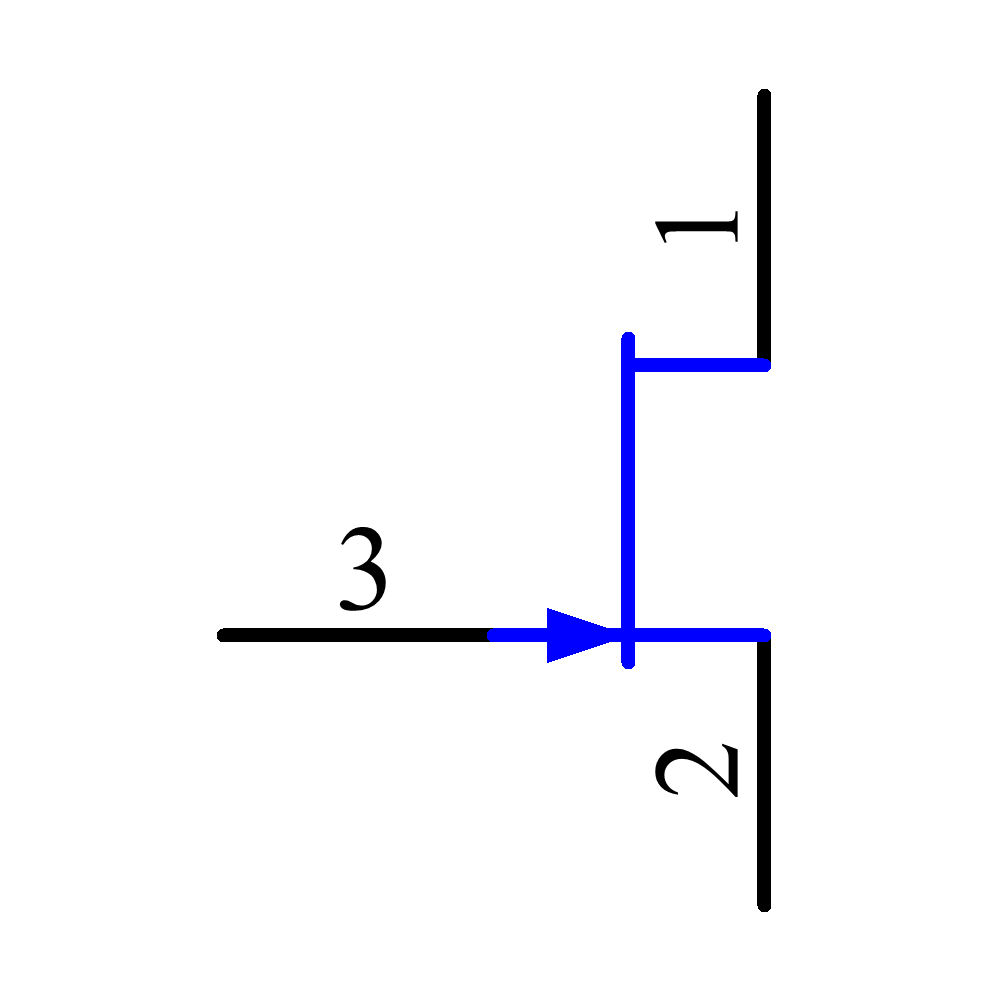

Images
Farnell
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Central Semiconductor | Production | ||
| Central Semiconductor | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Vishay | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Calogic | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete |
