A22NL-RPM-TRA-G100-RA - Omron
Pushbutton, Illum, Momentary, Projected, Metal Bezel, Red, 1 No
Technical Details
| Actuator Length | 19.1008mm |
| Color | Red |
| Contact Resistance | 100mΩ |
| Current Rating | 8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 500kcycles |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | LED |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-24 |
| Length | 43.5102mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 55°C |
| Mechanical Life | 5Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Front, Panel |
| Ratings | Dust Tight, IP66, Water Resistant |
| RoHS | Compliant |
| Sealable | EPOXY |
| Switch Function | Off-Mom |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 120V |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed

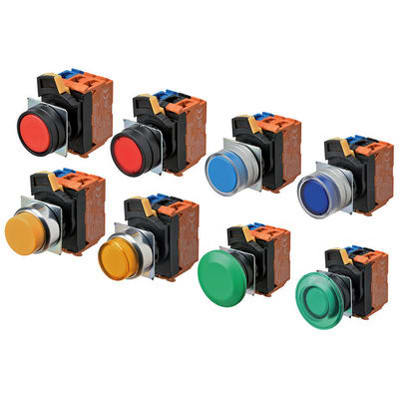

Images
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 0
|
$ | 24.37 | 21.03 | 18.96 | 18.13 | 17.09 | 17.09 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Aztech |
IT: 120
|
$ | 18.40 | 18.40 | 18.40 | 18.40 | 18.40 | 18.40 | ||
| VNN Services |
EU: 7220
|
$ | 3.59 | 3.51 | 3.51 | 3.44 | 3.37 | 3.37 | ||
