A9PS26-0011 - Omron
Switch Push Button DPDT Round Plunger 0.1A 28VAC 28VDC Momentary Contact PC Pins Thru-Hole Tray
Technical Details
| Actuator Length | 3.302mm |
| Ambient Temperature Range High | 80°C |
| Contact Current Rating | 100mA |
| Contact Plating | Gold |
| Contact Resistance | 80mΩ |
| Contact Voltage Rating (AC) | 28V |
| Current Rating | 100mA |
| Electrical Life | 50kcycles |
| Height | 5.6mm |
| Illumination Type | Illuminated |
| Insulation Resistance | 500MΩ |
| Length | 7mm |
| Life (Cycles) | 50kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Force | 4.9N |
| Packaging | Bulk |
| Ratings | Dust Tight, IP64, Water Resistant |
| RoHS | Compliant |
| Sealable | IP64 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 28V |
| Voltage Rating (DC) | 28V |
Compliance
RoHS : Unconfirmed

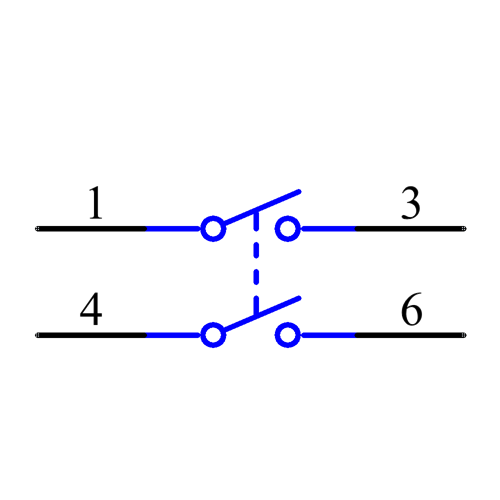

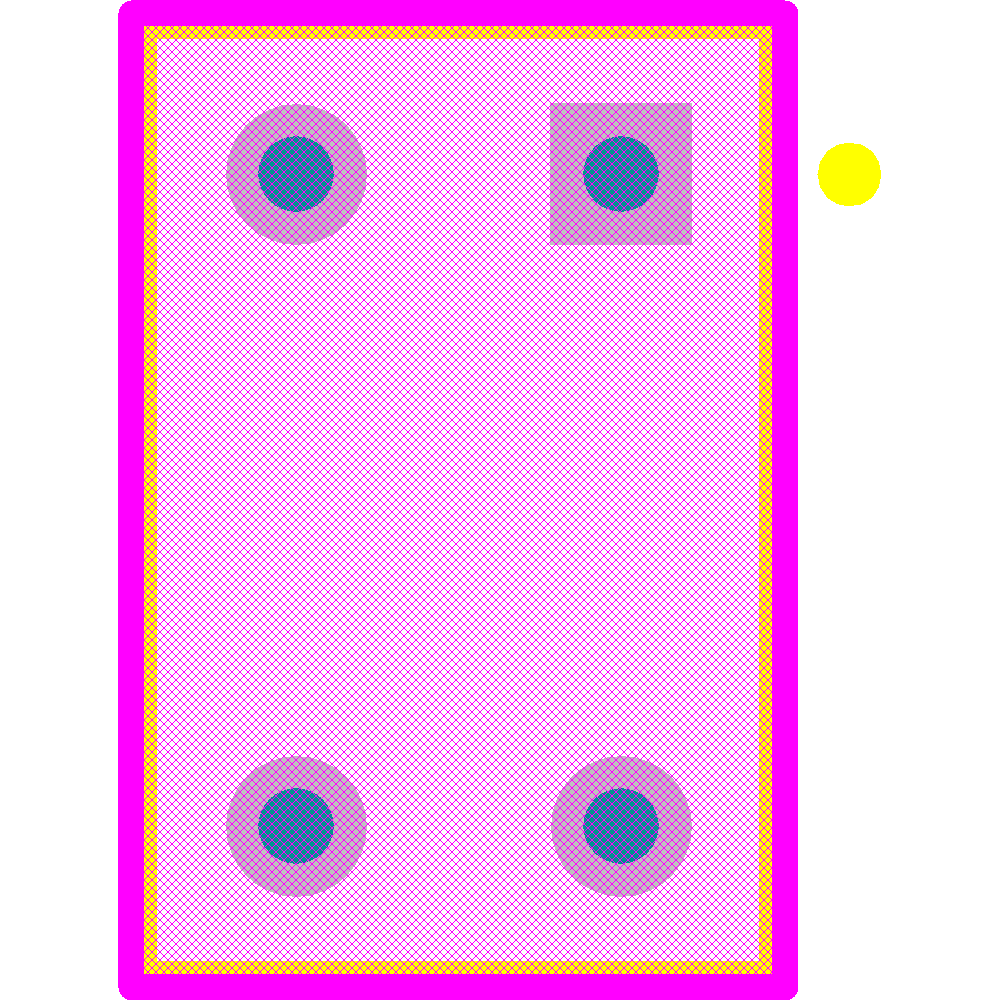

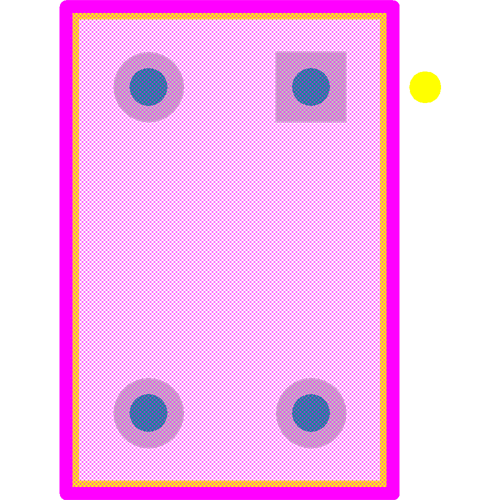

Images
