Electromechanical > Switches > Tactile Switches

B3F-3150 - Omron

Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1000000Cycle 0.98N Thru-Hole Bag

Technical Details

Actuator Length	3.4036mm
Ambient Temperature Range High	70°C
Color	White
Contact Current Rating	50mA
Contact Material	Gold, Silver
Contact Plating	Gold, Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	7.15mm
Electrical Life	1Mcycles
Height	7.4mm
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Lead Free	Lead Free
Length	7.3mm
Life (Cycles)	1Mcycles
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	70°C
Max Voltage Rating (DC)	24V
Mechanical Life	1Mcycles
Min Operating Temperature	-25°C
Mount	DIP, Through Hole
Number of Pins	4
Number of Poles	1
Number of Positions	1
Operating Force	1.27N
Orientation	Right Angle
Packaging	Bulk
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	250µm
Termination	PC Pins
Throw Configuration	SPST
Voltage Rating (DC)	24V
Weight	250mg
Width	6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron B3F-3150 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

B3F-3150 Symbol - Omron

B3F-3150 Symbol - Omron

B3F-3150 Symbol - Omron

B3F-3150 Symbol - Omron

‹ ›

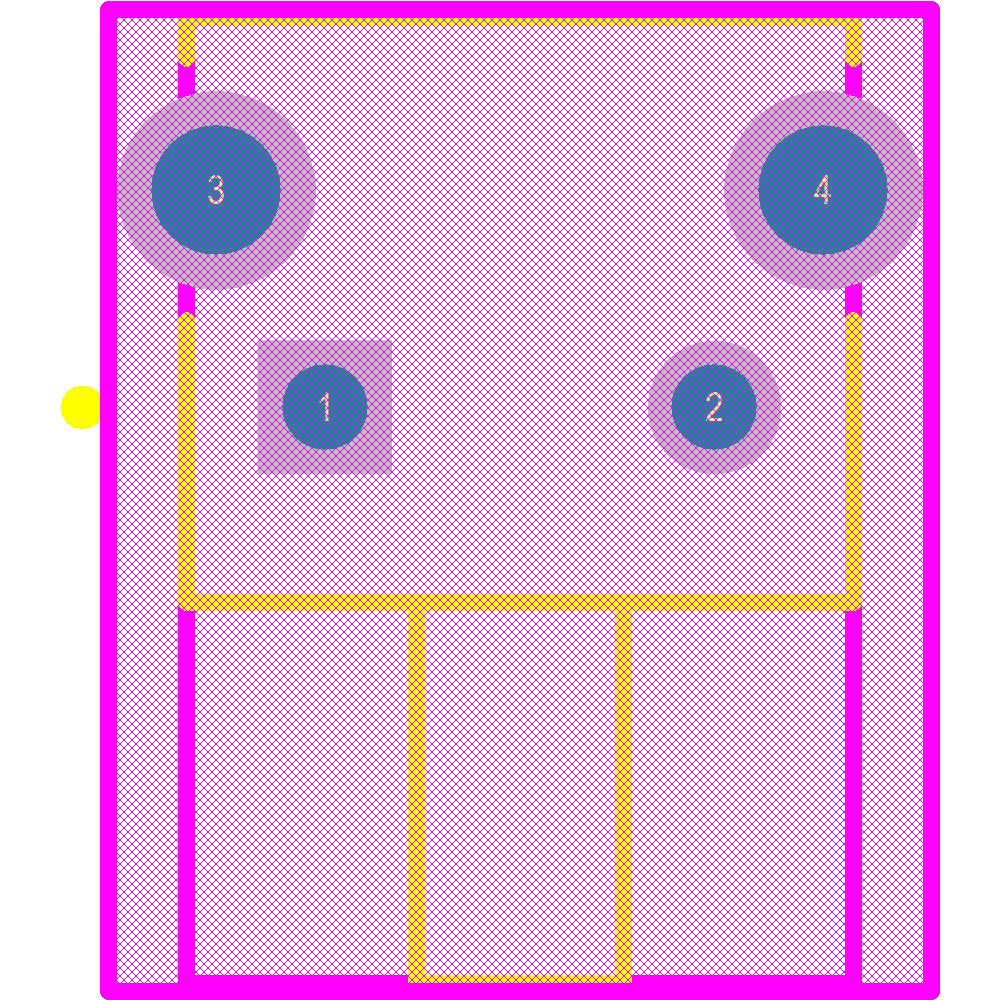

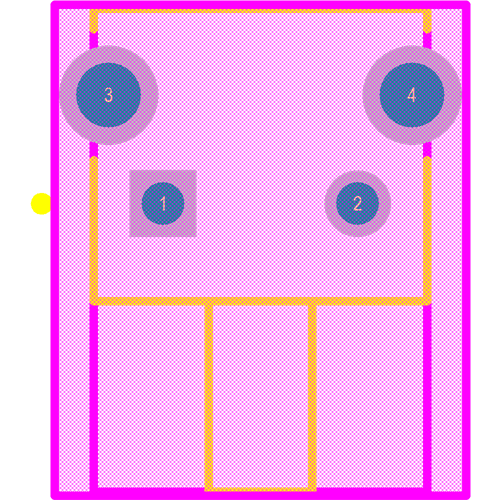

Footprint

B3F-3150 Footprint - Omron

B3F-3150 Footprint - Omron

B3F-3150 Footprint - Omron

B3F-3150 Footprint - Omron

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
APEM	MJTP1230F	Unknown
APEM	MJTP1232D	Unknown
TE Connectivity	FSM18JLH	Obsolete
Omron	B3F-1105	Production
APEM	MJTP1230G	Production
Omron	B3F-6152	Production
APEM	ADTS644RV	Production
Grayhill	95CW06D3	Production
Omron	B3F-6150	Production
Omron	B3F-6052	Production
