B3F-3152 - Omron
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag
Technical Details
| Actuator Length | 3.4036mm |
| Ambient Temperature Range High | 70°C |
| Color | Yellow |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 7.15mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 300kcycles |
| Height | 7.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 7.3mm |
| Life (Cycles) | 300kcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 300kcycles |
| Min Operating Temperature | -25°C |
| Mount | DIP, Through Hole |
| Number of Pins | 4 |
| Number of Poles | 1 |
| Number of Positions | 1 |
| Operating Force | 1.96N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Weight | 250mg |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

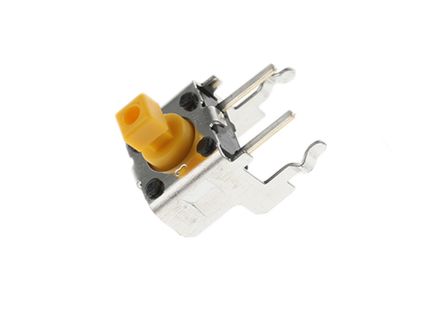

RS
