Electromechanical  >  Switches  >  Tactile Switches

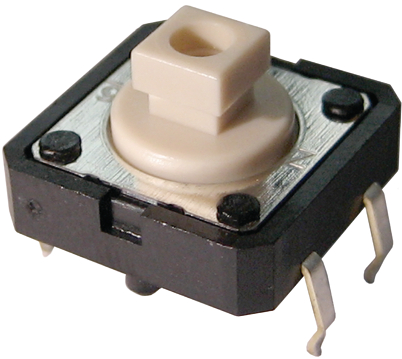

Omron - B3F-4050

B3F-4050 - Omron

Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 3000000Cycle 1.27N Thru-Hole Bag

 Datasheets

Technical Details

Actuator Length 3mm
Case/Package Radial
Color White
Contact Current Rating 50mA
Contact Material Gold, Silver
Contact Plating Silver
Contact Resistance 100mΩ
Current Rating 50mA
Depth 12mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 3Mcycles
Height 3.5mm
Harmonized Tariff Schedule (HTS) Code 8536.50.90.40
Illumination Type Illuminated, Non-Illuminated
Insulation Resistance 100MΩ
Introduction Date 1999-01-01
Lead Free Lead Free
Length 12mm
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 70°C
Max Voltage Rating (DC) 24V
Mechanical Life 3Mcycles
Min Operating Temperature -25°C
Mount DIP
Number of Poles 1
Number of Positions 1
Operating Force 1.76N
Packaging Bulk
REACH SVHC Yes
RoHS Compliant
Switch Function Off-Mom
Switch Travel 300µm
Termination PC Pins
Throw Configuration SPST
Voltage Rating (DC) 24V
Weight 850mg
Width 12mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

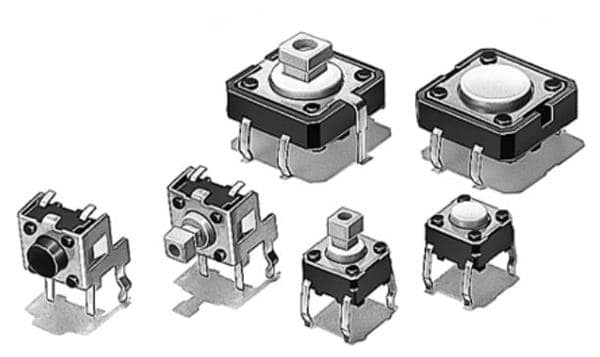

Omron B3F-4050 | Sager Electronics

Sager Electronics

Datasheets

 Sager Electronics
 TME
 Master Electronics

Lifecycle Status Indicator

   Production

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Omron
B3F-1105
Production
Omron
B3F-1002S
Production
Omron
B3F-1155
Production
Omron
B3F-1000S
Production
Omron
B3F-4100S
Production
Omron
B3F-1120S
Production
Omron
B3F-4055S
Production
Omron
B3F-1020S
Production
Omron
B3F-1022S
Production
Omron
B3F-4005S
Production

See more alternatives See less alternatives
