Electromechanical  >  Switches  >  Tactile Switches

Omron - B3F-4055

B3F-4055 - Omron

Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 2.55N Thru-Hole Bag

 Datasheets

Technical Details

Actuator Length 3mm
Ambient Temperature Range High 70°C
Color Yellow
Contact Current Rating 50mA
Contact Material Silver
Contact Plating Silver
Contact Resistance 100mΩ
Current Rating 50mA
Depth 12mm
Electrical Life 1Mcycles
Height 3.5mm
Illumination Type Illuminated, Non-Illuminated
Insulation Resistance 100MΩ
Lead Free Lead Free
Length 12mm
Life (Cycles) 1Mcycles
Lifecycle Status Production
Max Current Rating 50mA
Max Operating Temperature 70°C
Max Voltage Rating (DC) 24V
Mechanical Life 1Mcycles
Min Operating Temperature -25°C
Mount DIP
Number of Pins 4
Number of Positions 1
Operating Force 3.24N
Packaging Bulk
REACH SVHC Yes
RoHS Compliant
Switch Function Off-Mom
Switch Travel 300µm
Termination PC Pins
Throw Configuration SPST
Voltage Rating (DC) 24V
Weight 850mg
Width 12mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

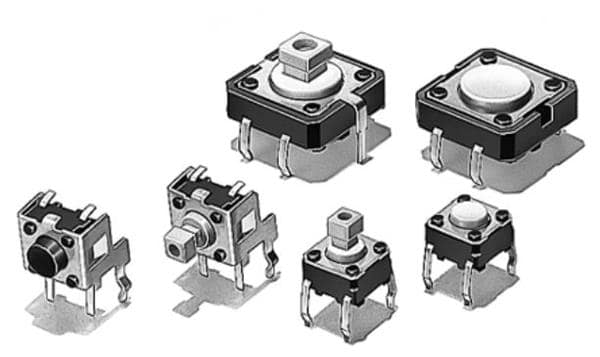

Omron B3F-4055 | Sager Electronics

Sager Electronics

Datasheets

 RS
 RS
 Sager Electronics

Lifecycle Status Indicator

   Production

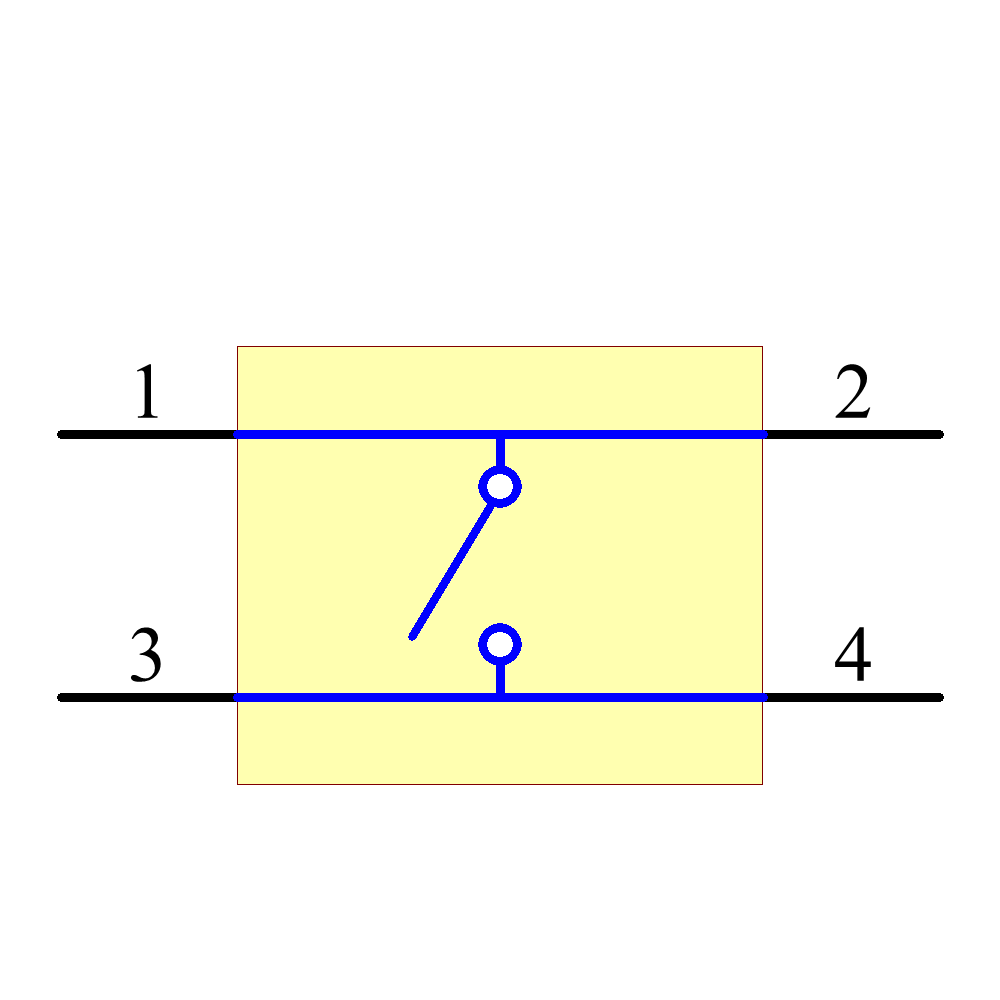

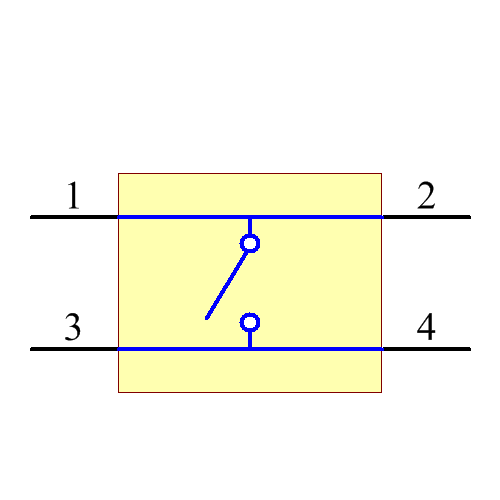

Symbol

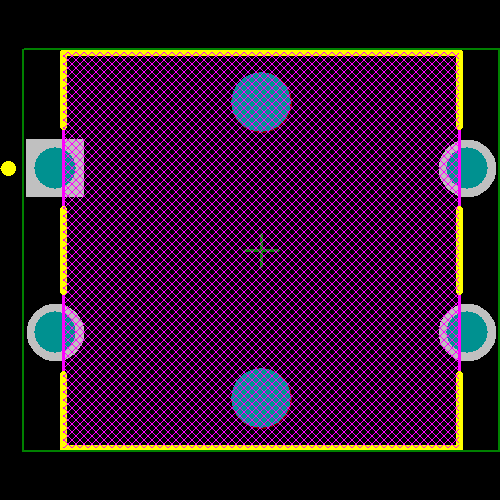

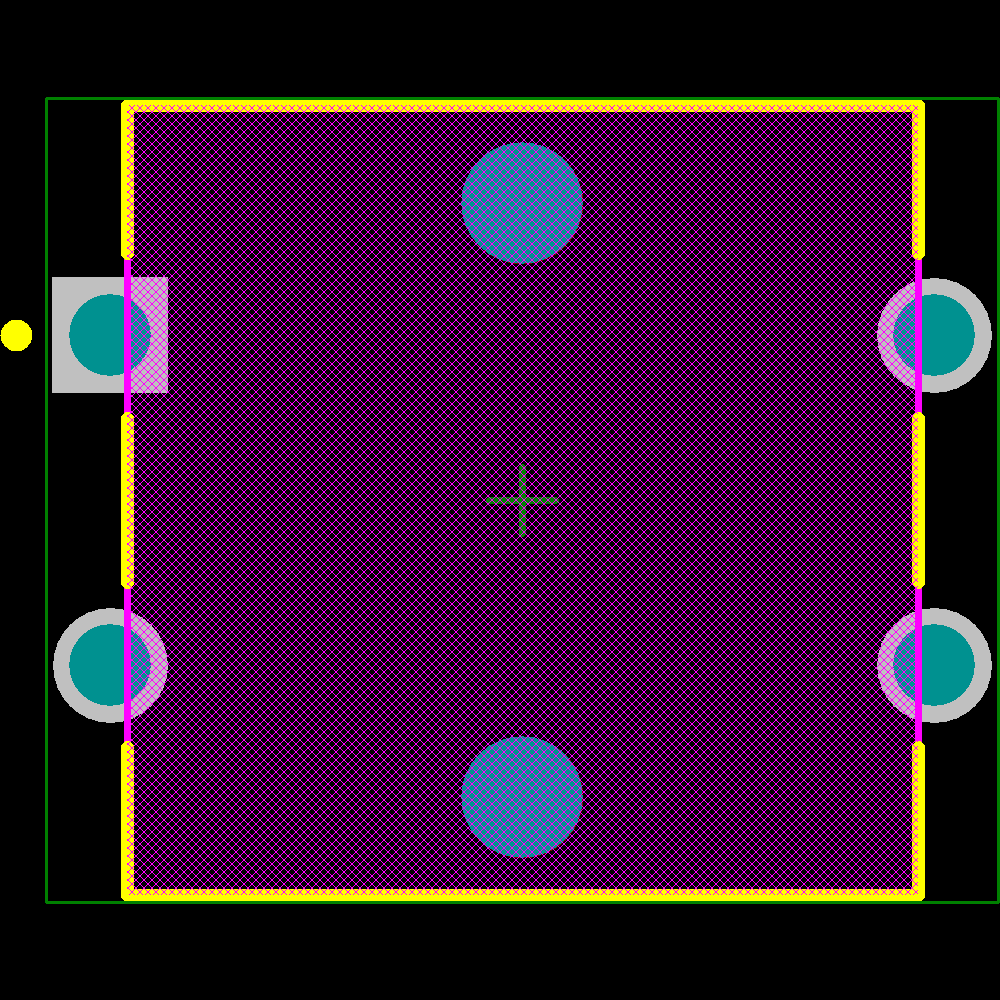

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Omron
B3F-1105
Production
Omron
B3F-1002S
Production
Omron
B3F-1155
Production
Omron
B3F-1000S
Production
Omron
B3F-4100S
Production
Omron
B3F-1120S
Production
Omron
B3F-4055S
Production
Omron
B3F-1020S
Production
Omron
B3F-1022S
Production
Omron
B3F-4005S
Production

See more alternatives See less alternatives
