B3F-4105 - Omron
Switch Tactile N.O. SPST Flat Plunger PC Pins 0.05A 24VDC 2.55N Thru-Hole Bag
Technical Details
| Actuator Length | 800µm |
| Ambient Temperature Range High | 70°C |
| Color | Yellow |
| Contact Current Rating | 50mA |
| Contact Material | Gold, Silver |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 3.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 12mm |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -25°C |
| Mount | DIP, Through Hole |
| Number of Poles | 1 |
| Number of Positions | 1 |
| Operating Force | 3.24N |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Schedule B | 8536509065, 8536509065|8536509065|8536509065|8536509065|8536509065 |
| Switch Function | Off-Mom |
| Switch Travel | 300µm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Weight | 850mg |
| Width | 12mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

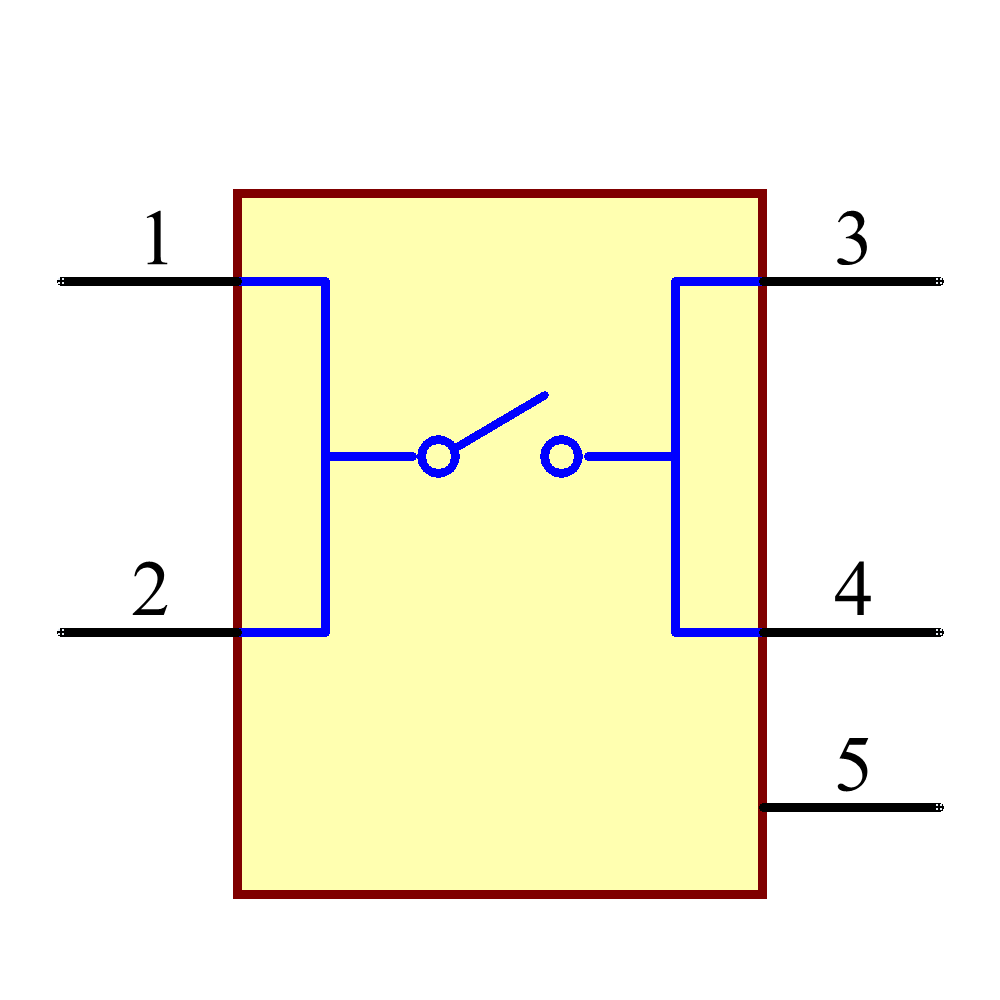

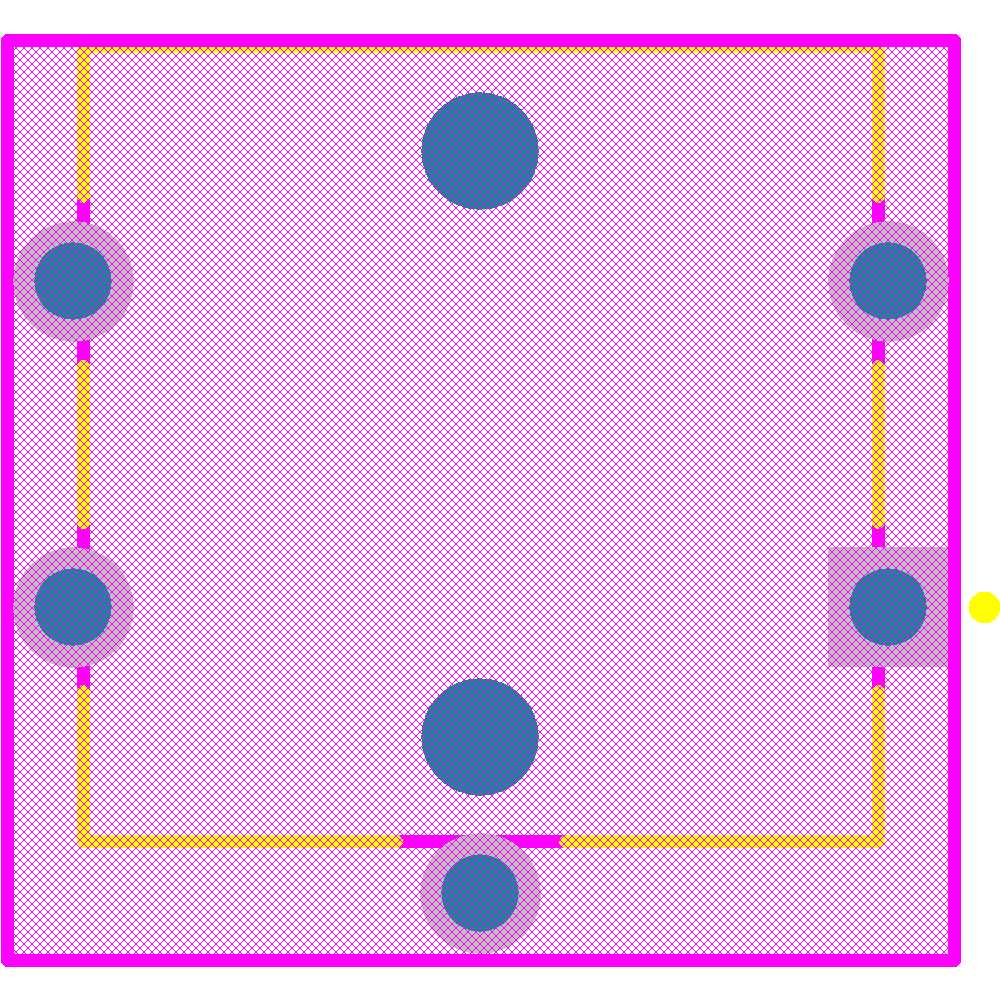

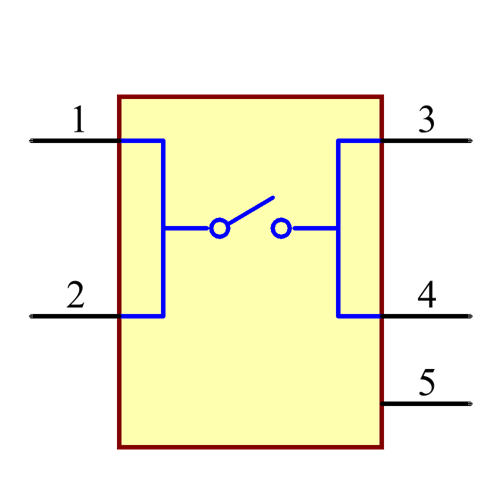

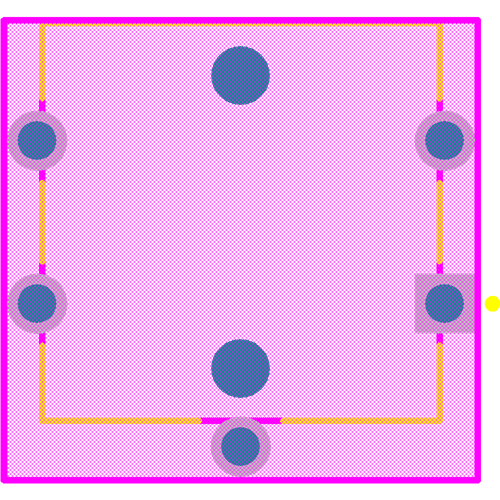

Images
