Electromechanical > Switches > Tactile Switches

B3F-5000 - Omron

Switch Tactile N.O. SPST Flat Round Button PC Pins 0.05A 24VDC 1.27N Thru-Hole Bag

Technical Details

Actuator Length	800µm
Ambient Temperature Range High	70°C
Color	Blue
Contact Current Rating	50mA
Contact Material	Gold, Silver
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	12mm
Electrical Life	10Mcycles
Height	3.5mm
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Lead Free	Lead Free
Length	12mm
Life (Cycles)	10Mcycles
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	70°C
Max Voltage Rating (DC)	24V
Mechanical Life	10Mcycles
Min Operating Temperature	-25°C
Mount	DIP, Through Hole
Number of Poles	1
Number of Positions	1
Operating Force	1.76N
Packaging	Bulk
REACH SVHC	Unknown
RoHS	Compliant
Switch Function	Off-Mom
Switch Travel	300µm
Termination	PC Pins
Throw Configuration	SPST
Voltage Rating (DC)	24V
Weight	850mg
Width	12mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Unknown

Images

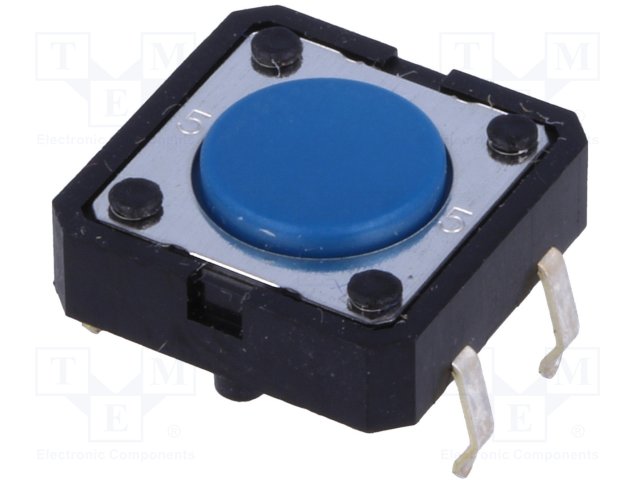

Omron B3F-5000 | TME

TME

Datasheets

Lifecycle Status Indicator

Production

Symbol

B3F-5000 Symbol - Omron

B3F-5000 Symbol - Omron

B3F-5000 Symbol - Omron

B3F-5000 Symbol - Omron

‹ ›

Footprint

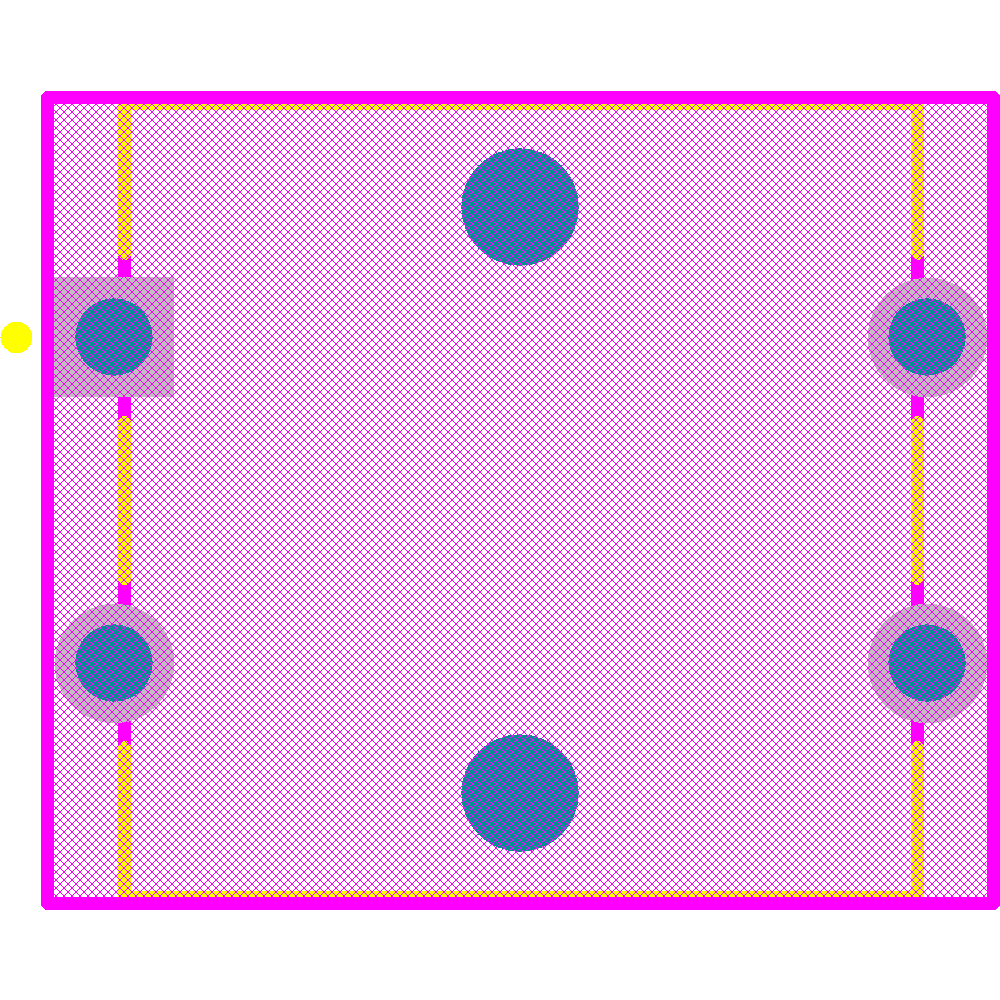

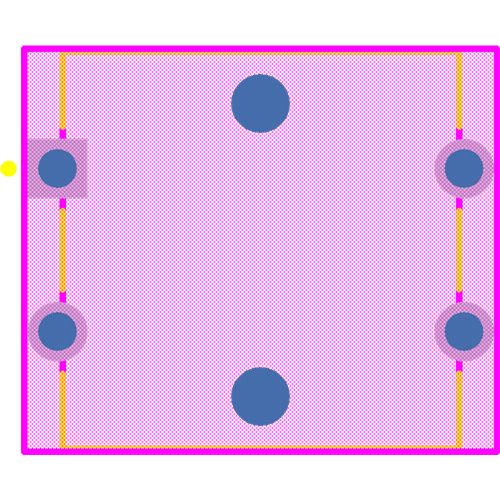

B3F-5000 Footprint - Omron

B3F-5000 Footprint - Omron

B3F-5000 Footprint - Omron

B3F-5000 Footprint - Omron

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Omron	B3F-1105	Production
Omron	B3F-1002S	Production
Omron	B3F-1155	Production
Omron	B3F-1000S	Production
Omron	B3F-4100S	Production
Omron	B3F-1120S	Production
Omron	B3F-4055S	Production
Omron	B3F-1020S	Production
Omron	B3F-1022S	Production
Omron	B3F-4005S	Production

See more alternatives See less alternatives
