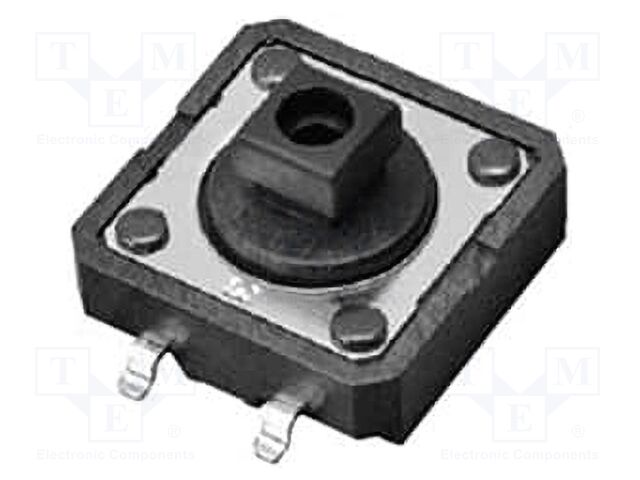

B3FS-4052P - Omron
Switch Tactile N.O. SPST Projected Plunger Gull Wing 0.05A 24VDC 1.47N SMD T/R
Technical Details
| Ambient Temperature Range High | 70°C |
| Color | Black |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Electrical Life | 1Mcycles |
| Height | 3.9mm |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Length | 12mm |
| Life (Cycles) | 3Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 3Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 1.47N |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP00 |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images
