B3S-1000 - Omron

Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 1.57N SMD Bag

Technical Details

Actuator Length	660.4µm
China RoHS	Compliant
Contact Current Rating	50mA
Contact Material	Bronze
Contact Plating	Silver
Contact Resistance	100mΩ
Country of Origin	Mainland China
Current Rating	50mA
Depth	9mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	500kcycles
Height	3.5mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	6.6mm
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	70°C
Max Voltage Rating (DC)	24V
Mechanical Life	500kcycles
Min Operating Temperature	-25°C
Mount	Surface Mount
Number of Poles	1
Number of Positions	1
Operating Force	1.57N
Packaging	Bulk
Ratings	Dust Tight, IP67, Waterproof
REACH SVHC	Yes
RoHS	Compliant
Sealable	IP67
Switch Function	Off-Mom
Switch Travel	250µm
Termination	Gull Wing
Throw Configuration	SPST
Voltage Rating	24V
Voltage Rating (DC)	24V
Weight	299.994654mg
Width	6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Omron B3S-1000 | Sager Electronics

Sager Electronics

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

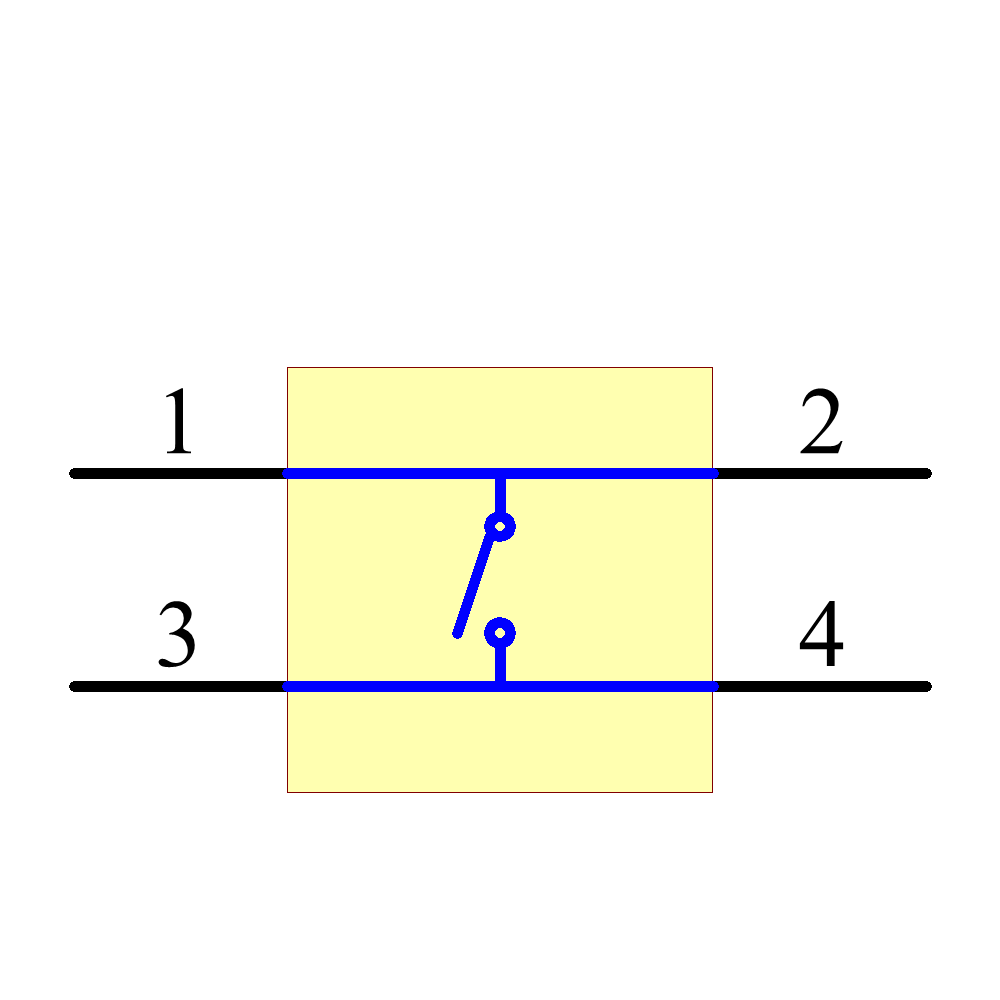

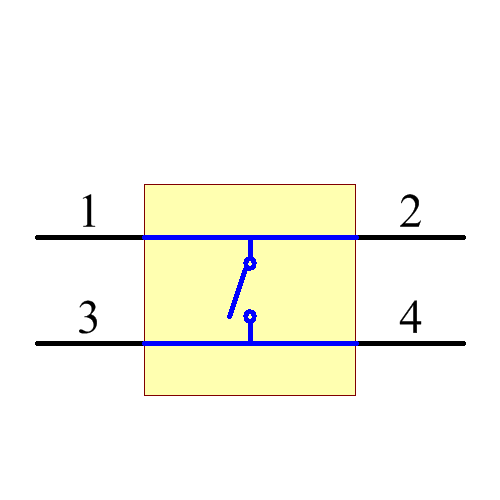

Symbol

B3S-1000 Symbol - Omron

B3S-1000 Symbol - Omron

B3S-1000 Symbol - Omron

B3S-1000 Symbol - Omron

‹ ›

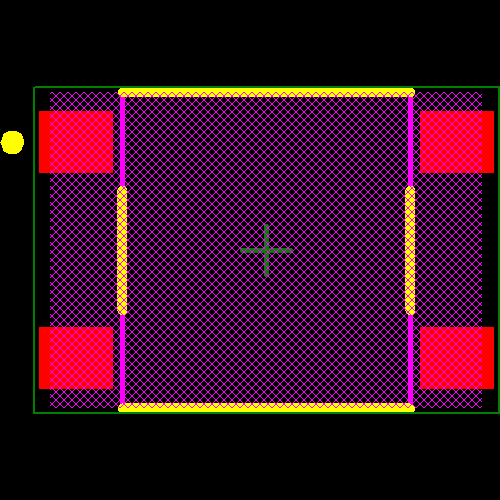

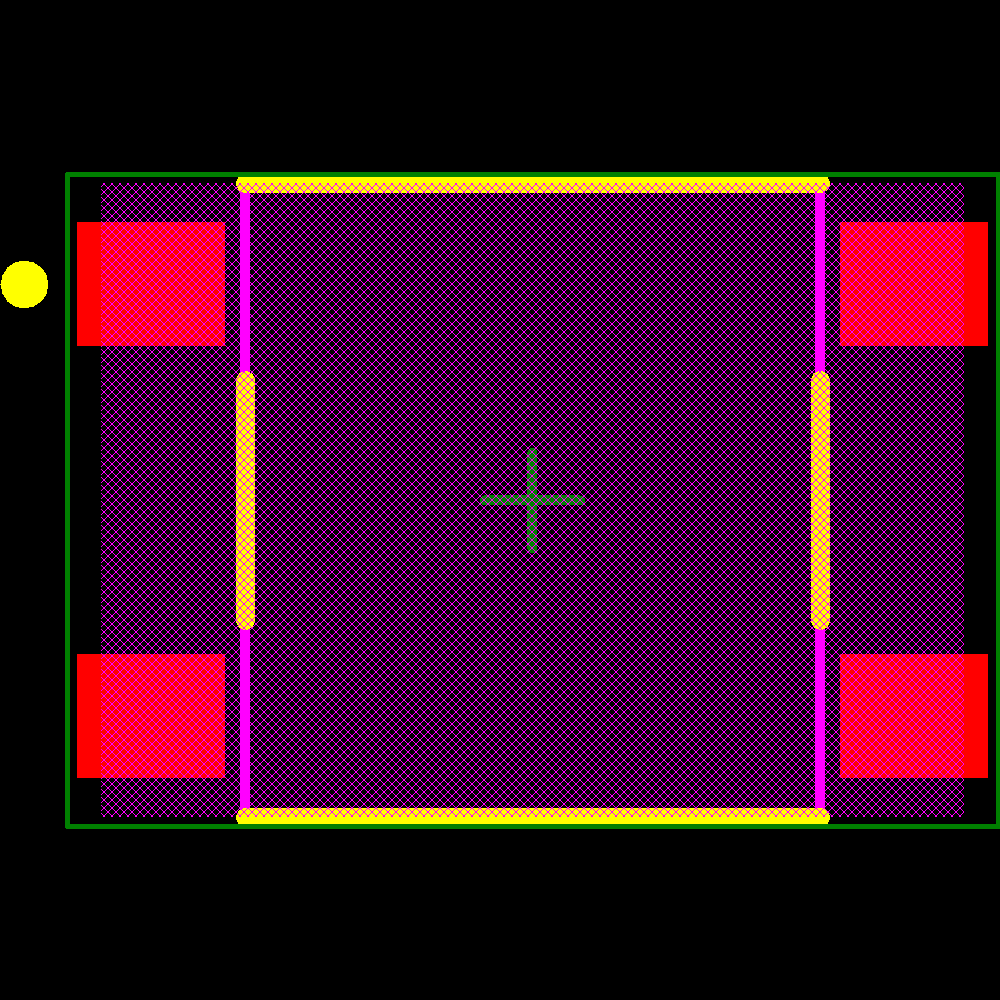

Footprint
