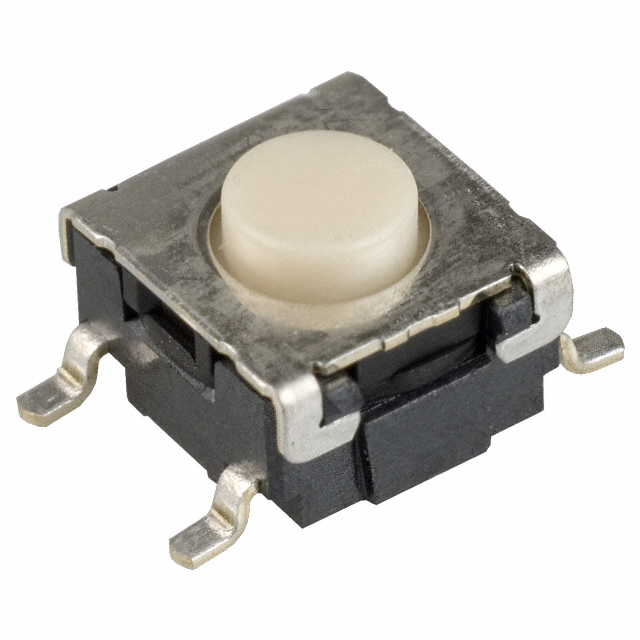

B3S-1102P - Omron
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 2.26N SMD T/R
Technical Details
| Actuator Length | 660.4µm |
| Contact Current Rating | 50mA |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 9mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 300kcycles |
| Height | 3.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 500kcycles |
| Min Operating Temperature | -25°C |
| Mount | Sealed, Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2.26N |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | IP67 |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Weight | 299.994654mg |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

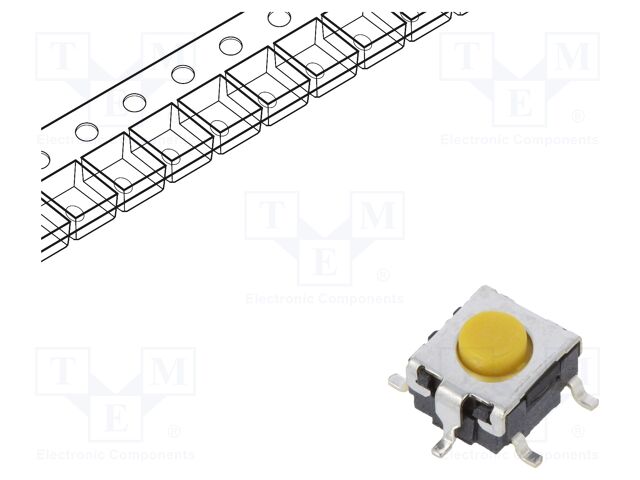

Images
