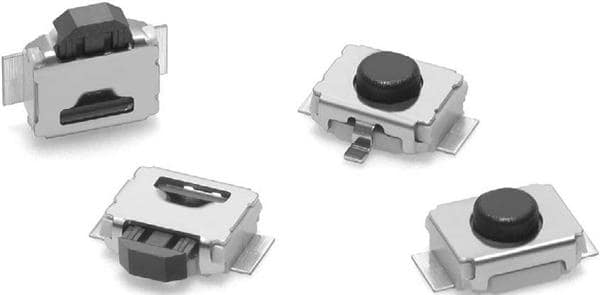

B3U-3000P - Omron
Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.59N SMD Embossed T/R
Technical Details
| Actuator Length | 700µm |
| Capacitance | 470µF |
| Case/Package | Radial |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 3.2mm |
| Diameter | 10mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 1.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2006-12-15 |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 3mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 2.08N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | Dust Proof, IP40 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Sealable | DUST PROOF |
| Switch Function | Off-Mom |
| Switch Travel | 200µm |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| Tolerance | 20% |
| Voltage Rating | 50V |
| Voltage Rating (DC) | 50V |
| Weight | 22mg |
| Width | 2.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
