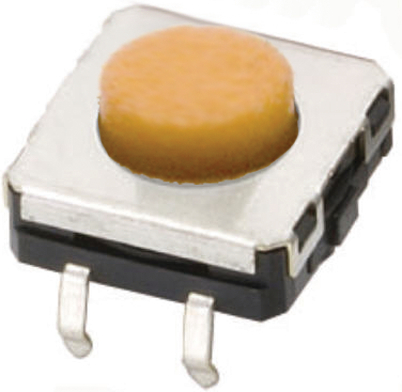

B3W-1000 - Omron
Switch Tactile N.O. SPST Flat Plunger PC Pins 0.05A 24VDC 1000000Cycle 1.57N Thru-Hole Bag
Technical Details
| Actuator Length | 660.4µm |
| Ambient Temperature Range High | 70°C |
| Color | White |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 6.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 1Mcycles |
| Height | 3.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.90.40 |
| Illumination Type | Illuminated, Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 1999-01-01 |
| Length | 6.6mm |
| Life (Cycles) | 1Mcycles |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 1Mcycles |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Pins | 2 |
| Number of Poles | 1 |
| Number of Positions | 1 |
| Operating Force | 1.57N |
| Orientation | Straight |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sealable | IP67 |
| Switch Function | Off-Mom |
| Switch Travel | 250µm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 24V |
| Weight | 300mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown

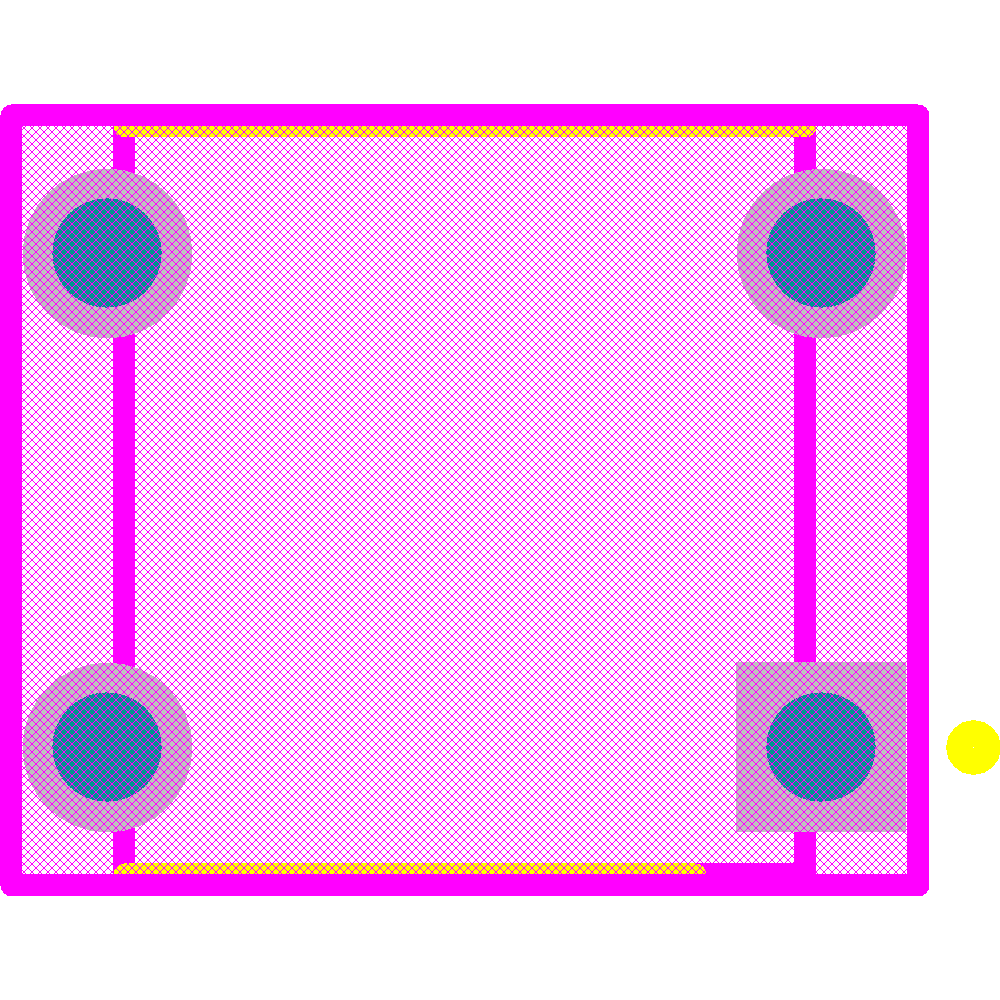

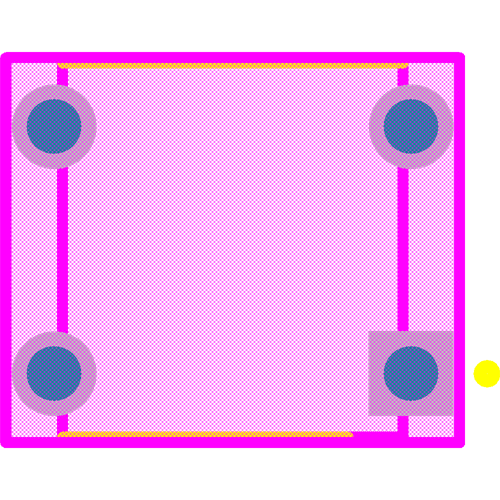

Images
