Electromechanical > Switches > Tactile Switches

B3W-1050 - Omron

Tactile Switch 24Vdc 50mA/24Vdc SPST NO Circuit Configuration Round Projected Button White

Technical Details

Actuator Length	3.6576mm
Ambient Temperature Range High	70°C
Color	White
Contact Current Rating	50mA
Contact Material	Silver
Contact Plating	Silver
Contact Resistance	100mΩ
Current Rating	50mA
Depth	7.7mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	1Mcycles
Height	3.4mm
Harmonized Tariff Schedule (HTS) Code	8536.50.90.40
Illumination Type	Illuminated, Non-Illuminated
Insulation Resistance	100MΩ
Introduction Date	1999-01-01
Length	6.6mm
Life (Cycles)	1Mcycles
Lifecycle Status	Production
Max Current Rating	50mA
Max Operating Temperature	70°C
Max Voltage Rating (DC)	24V
Mechanical Life	1Mcycles
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Poles	1
Number of Positions	1
Operating Force	1.57N
Orientation	Straight
Radiation Hardening	No
Ratings	Dust Tight, IP67, Waterproof
REACH SVHC	Yes
RoHS	Compliant
Sealable	IP67
Switch Function	Off-Mom
Switch Travel	250µm
Termination	PC Pins
Throw Configuration	SPST
Voltage Rating (DC)	24V
Weight	300mg
Width	6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron B3W-1050 | Sager Electronics

Sager Electronics

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

Symbol

B3W-1050 Symbol - Omron

B3W-1050 Symbol - Omron

B3W-1050 Symbol - Omron

B3W-1050 Symbol - Omron

‹ ›

Footprint

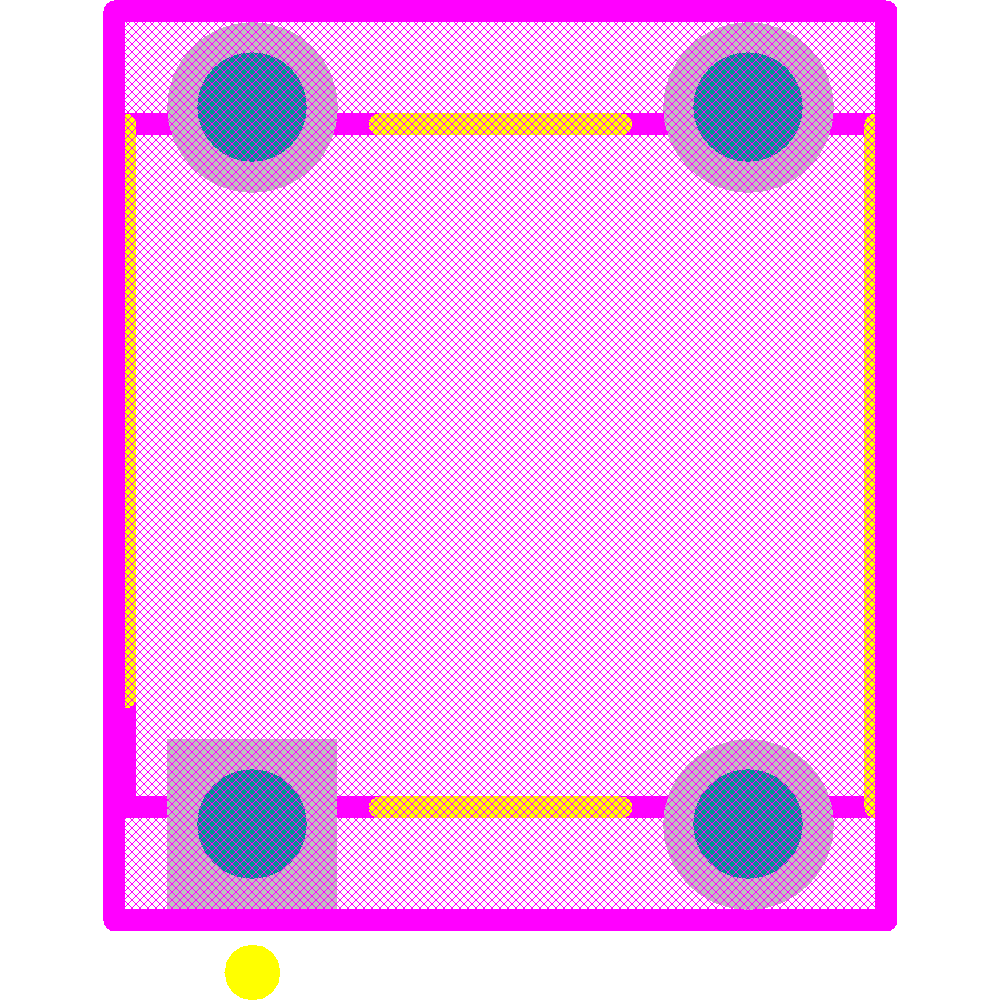

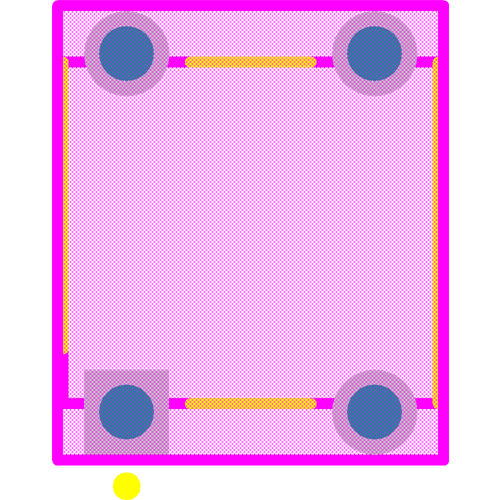

B3W-1050 Footprint - Omron

B3W-1050 Footprint - Omron

B3W-1050 Footprint - Omron

B3W-1050 Footprint - Omron

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
APEM	MJTP1230F	Unknown
APEM	MJTP1232D	Unknown
TE Connectivity	FSM18JLH	Obsolete
Omron	B3F-1105	Production
APEM	MJTP1230G	Production
Omron	B3F-6152	Production
APEM	ADTS644RV	Production
Grayhill	95CW06D3	Production
Omron	B3F-6150	Production
Omron	B3F-6052	Production

See more alternatives See less alternatives
