EE-SPY415 - Omron
Diffuse Photoelectric Sensor, 3mm Min, 19mm Max, 0.40-0.90V, Rectangular
Technical Details
| Collector Emitter Voltage (VCEO) | 16V |
| Current Rating | 25mA |
| Fall Time | 1ms |
| Height | 33mm |
| Input Current | 25mA |
| Introduction Date | 1999-02-08 |
| Lead Free | Lead Free |
| Length | 11mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 20mA |
| Max Collector Current | 30mA |
| Max Operating Temperature | 60°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 7V |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Operating Supply Current | 25mA |
| Operating Supply Voltage | 7V |
| Output Configuration | NPN - Open Collector |
| Output Current | 20mA |
| Packaging | Bulk |
| REACH SVHC | Unknown |
| Rise Time | 1ms |
| RoHS | Compliant |
| Sensing Distance | 19mm |
| Width | 9.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown

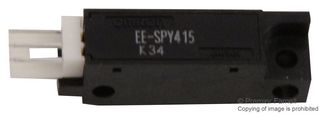

Images
