EE-SX398 - Omron

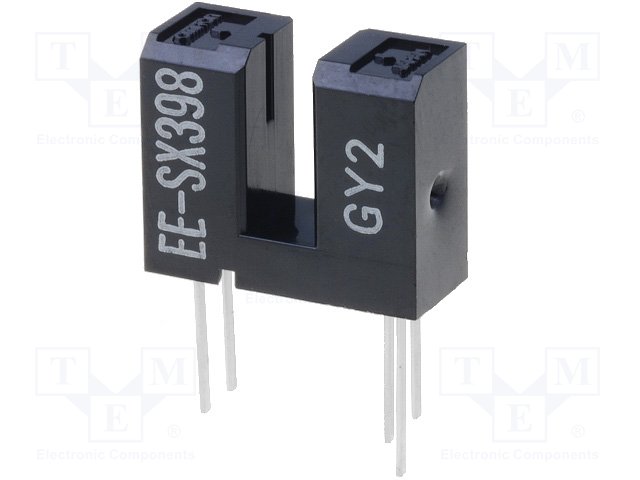

Omron EE-SX398 Sensor Slot-Photo Transistor Output NPN 5V-24V

Technical Details

Collector Emitter Voltage (VCEO)	28V
Fall Time	20µs
Forward Current	50mA
Forward Voltage	1.2V
Height	10mm
Input Current	50mA
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Low Level Output Current	16mA
Max Collector Current	16mA
Max Operating Temperature	75°C
Max Output Current	16mA
Max Power Dissipation	250mW
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Mount	PCB, Through Hole
Number of Channels	1
Number of Circuits	1
Number of Elements	1
Number of Pins	5
Operating Supply Current	3.2mA
Operating Supply Voltage	16V
Output Configuration	NPN - Open Collector
Peak Reverse Current	10nA
Peak Wavelength	870nm
Power Dissipation	250mW
Propagation Delay	20µs
REACH SVHC	Yes
Reverse Breakdown Voltage	4V
Reverse Voltage (DC)	4V
Rise Time	3µs
RoHS	Compliant
Sensing Distance	2.9972mm
Termination	Solder
Wavelength	940nm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes
