Bipolar Transistor, 15V, 0.7A, Low VCE(sat) NPN Single MCP

Technical Details

Case/Package	SC
China RoHS	Compliant
Collector Base Voltage (VCBO)	20V
Collector Emitter Breakdown Voltage	15V
Collector Emitter Saturation Voltage	150mV
Collector Emitter Voltage (VCEO)	15V
Contact Plating	Tin Bismuth
Country of Origin	Mainland China
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Gain Bandwidth Product	330MHz
Height	900µm
hFE Min	300
Introduction Date	2011-03-18
Lead Free	Lead Free
Length	2mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	15V
Max Collector Current	700mA
Max Frequency	330MHz
Max Operating Temperature	150°C
Max Power Dissipation	300mW
Min Operating Temperature	-55°C
Number of Pins	3
Packaging	Tape and Reel
Polarity	NPN
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080
Transition Frequency	330MHz
Width	1.25mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

onsemi 15C01M-TL-E | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

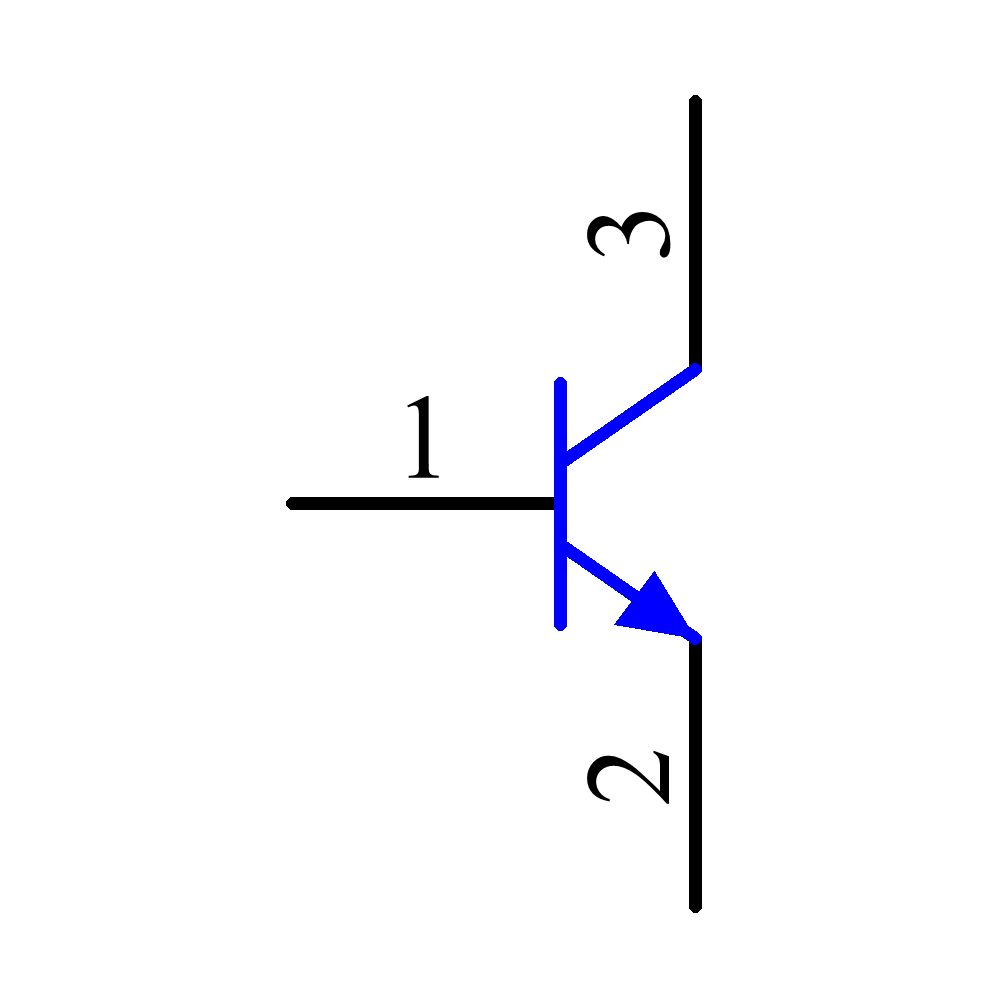

15C01M-TL-E Symbol - onsemi

15C01M-TL-E Symbol - onsemi

15C01M-TL-E Symbol - onsemi

15C01M-TL-E Symbol - onsemi

‹ ›

Footprint

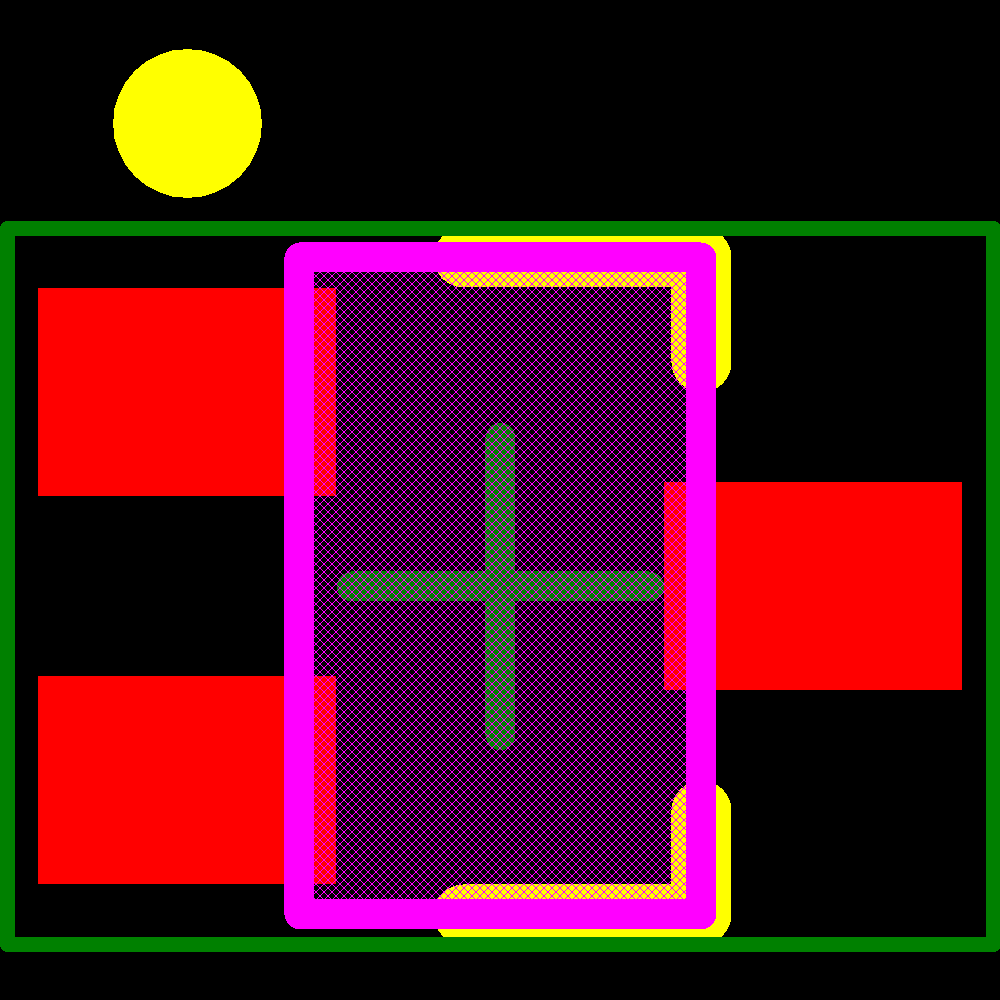

15C01M-TL-E Footprint - onsemi
