Technical Details
| Case/Package | TO-236-3 |
| Contact Plating | Tin Bismuth |
| Continuous Drain Current (ID) | 170mA |
| Country of Origin | Mainland China |
| Drain to Source Breakdown Voltage | -100V |
| Drain to Source Resistance | 18Ω |
| Drain to Source Voltage (Vdss) | -100V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 81ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 14pF |
| Introduction Date | 2014-05-07 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 600mW |
| Min Breakdown Voltage | 100V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Packaging | Digi-Reel® |
| Power Dissipation | 600mW |
| Rds On Max | 18Ω |
| REACH SVHC | Yes |
| Rise Time | 18ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 200ns |
| Turn-On Delay Time | 21ns |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

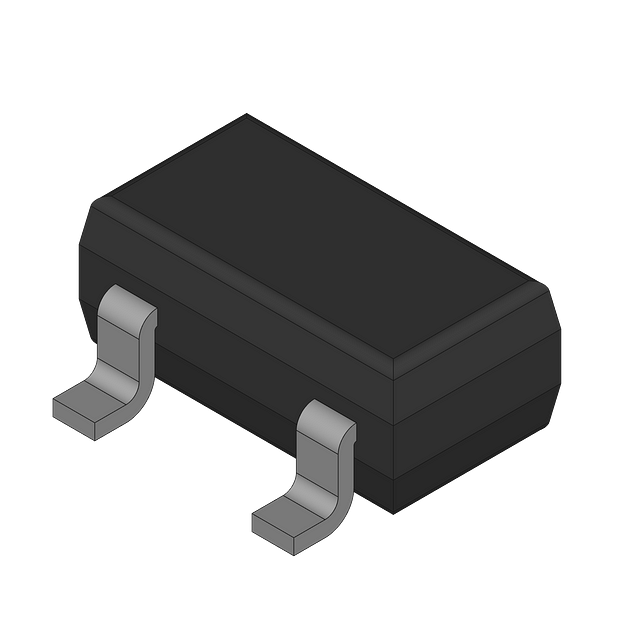

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Comchip | NRND | ||
| Nexperia | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 24790
|
$ | 0.2134 | 0.1771 | 0.1579 | |||||
| Avnet |
US: 3000
|
$ | 0.131 | |||||||
| Flip Electronics |
US: 3000
|
$ | ||||||||
