onsemi - 1N4741ATR

1N4741ATR - onsemi

1N4741A Series 11 V ±5% 1 W Axial Through Hole Zener Diode - DO-41

 Datasheets

Technical Details

Body Material Glass
Case/Package Axial
China RoHS Non-Compliant
Contact Plating Tin
Country of Origin Mainland China
Diameter 2.72mm
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
ESD Protection No
Height 2.72mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Impedance 8Ω
Introduction Date 1999-01-01
Lead Free Lead Free
Length 5.2mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Material Glass
Max Junction Temperature (Tj) 200°C
Max Operating Temperature 200°C
Max Power Dissipation 1W
Max Reverse Leakage Current 5µA
Min Operating Temperature -65°C
Mount Through Hole
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Output Current 1.1A
Packaging Cut Tape
Peak Reverse Current 5µA
Polarity Unidirectional
Power Dissipation 1W
Power Rating 1W
Radiation Hardening No
REACH SVHC Yes
Reference Voltage 11V
Reverse Standoff Voltage 8.4V
Reverse Voltage 8.4V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050
Test Current 23mA
Tolerance 5%
Voltage Rating (DC) 11V
Voltage Tolerance 5%
Weight 245mg
Working Voltage 11V
Zener Current 23mA
Zener Voltage 11V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

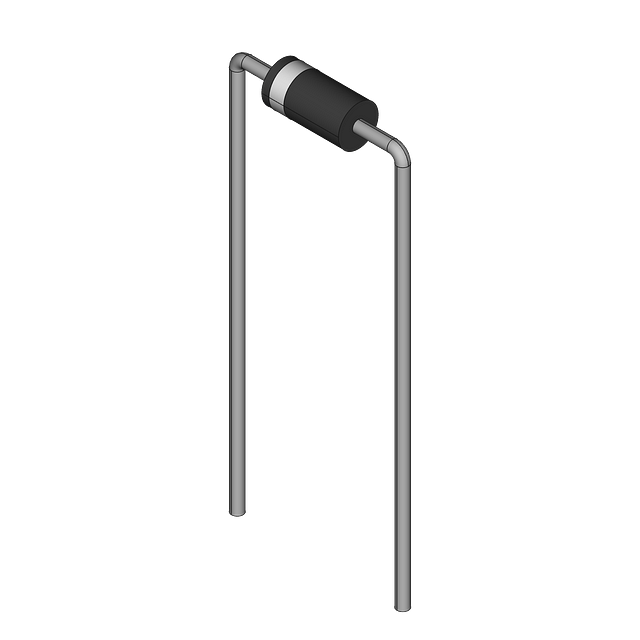

onsemi 1N4741ATR | Rochester Electronics

Rochester Electronics

Datasheets

 Farnell
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production
Symbol
Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
1N4741A
Production
Diodes Inc.
1N4741A
Obsolete
Nexperia
1N4741A,113
Production
onsemi
1N4741A_T50R
Unknown
Central Semiconductor
1N4741A TR
Unknown
Central Semiconductor
1N4741A
Production
Vishay
1N4741A
Production
Diodes Inc.
1N4741A-A
Obsolete
Rectron
1N4741A
Production
