Technical Details
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Current | 8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Height | 3.68mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 1Ω |
| Introduction Date | 1982-12-01 |
| Lead Free | Contains Lead |
| Length | 8.89mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Dissipation | 5W |
| Power Rating | 5W |
| REACH SVHC | No |
| Reference Voltage | 5.6V |
| Reverse Standoff Voltage | 2V |
| RoHS | Compliant |
| Test Current | 220mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 5.6V |
| Voltage Tolerance | 5% |
| Width | 3.68mm |
| Zener Current | 220mA |
| Zener Voltage | 5.6V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

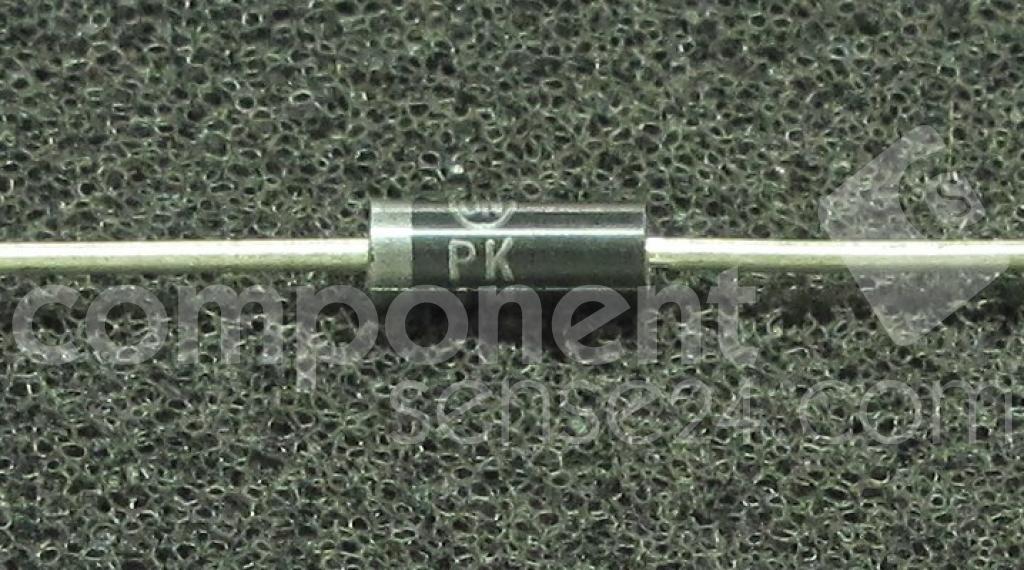

Images
Component Sense
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| Motorola | Obsolete | ||
| onsemi | Obsolete |
