1N5355BG - onsemi

Diode, Zener, Vr 18V, If 1A, Pkg Case 17, Vf 1.2V, Tj +200DEGC, Cs 5.5A, Pd 5W, Ir 65MA

Technical Details

Breakdown Voltage	18V
Case/Package	Axial
China RoHS	Non-Compliant
Contact Plating	Tin
Country of Origin	Mainland China
Diameter	3.68mm
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
ESD Protection	Yes
Forward Voltage	1.2V
Halogen Free	Halogen Free
Height	3.68mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Impedance	2.5Ω
Introduction Date	2000-06-28
Lead Free	Lead Free
Length	8.89mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	200°C
Max Power Dissipation	5W
Max Reverse Leakage Current	500nA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	0
Number of Terminals	2
Packaging	Bulk
Peak Reverse Current	500nA
Polarity	Unidirectional
Power Dissipation	5W
Power Rating	5W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	18V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050, 8541100050\|8541100050\|8541100050, 8541100050\|8541100050\|8541100050\|8541100050
Test Current	65mA
Tolerance	5%
Voltage Rating (DC)	18V
Voltage Tolerance	5%
Weight	4.535924g
Width	3.68mm
Working Voltage	18V
Zener Current	65mA
Zener Voltage	18V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1N5355BG | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

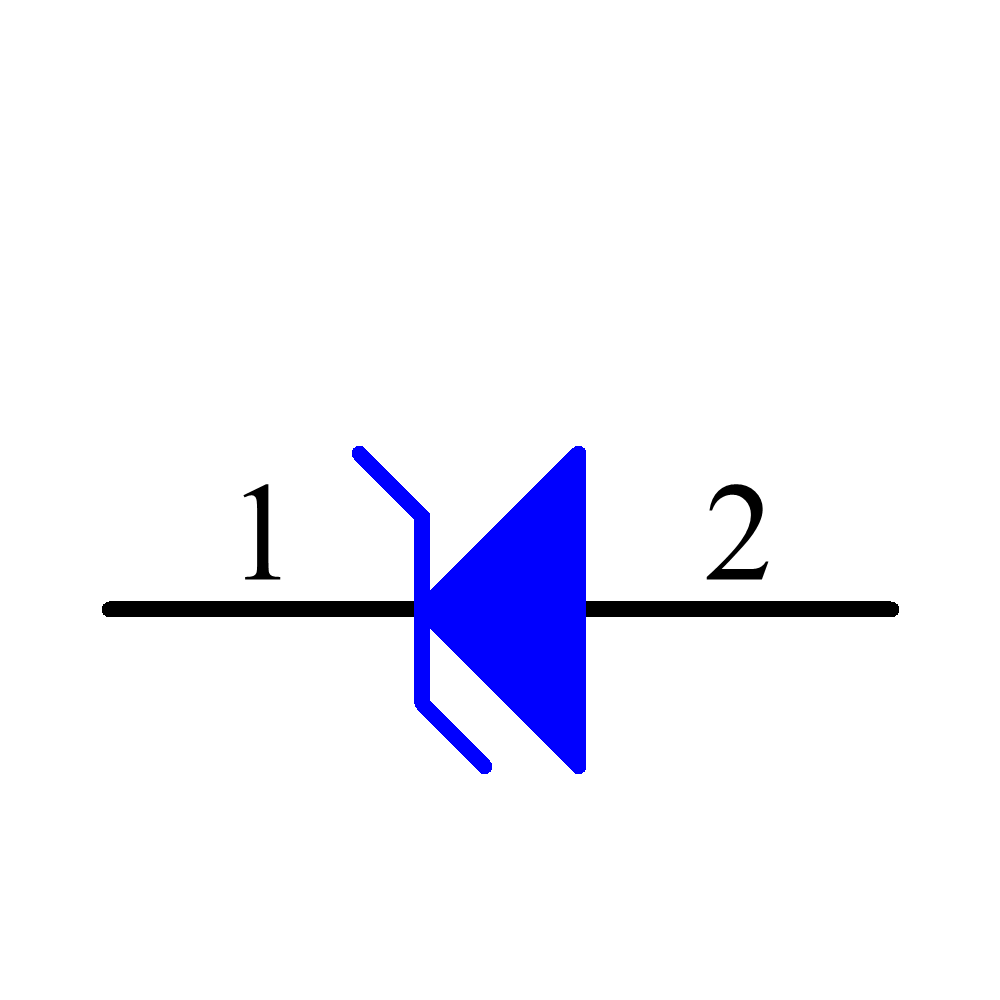

1N5355BG Symbol - onsemi

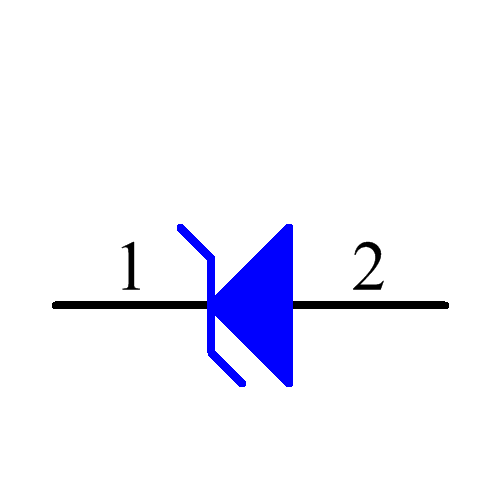

1N5355BG Symbol - onsemi

1N5355BG Symbol - onsemi

1N5355BG Symbol - onsemi

‹ ›

Footprint

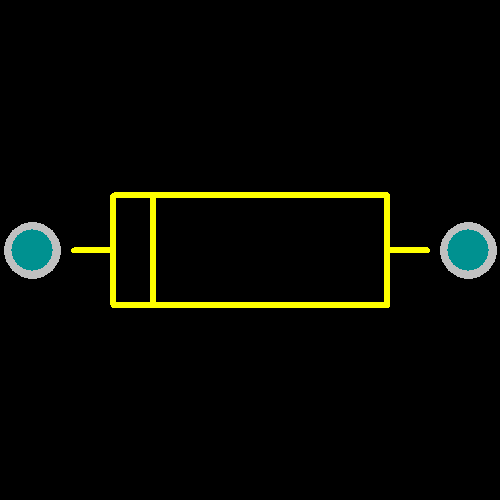

1N5355BG Footprint - onsemi

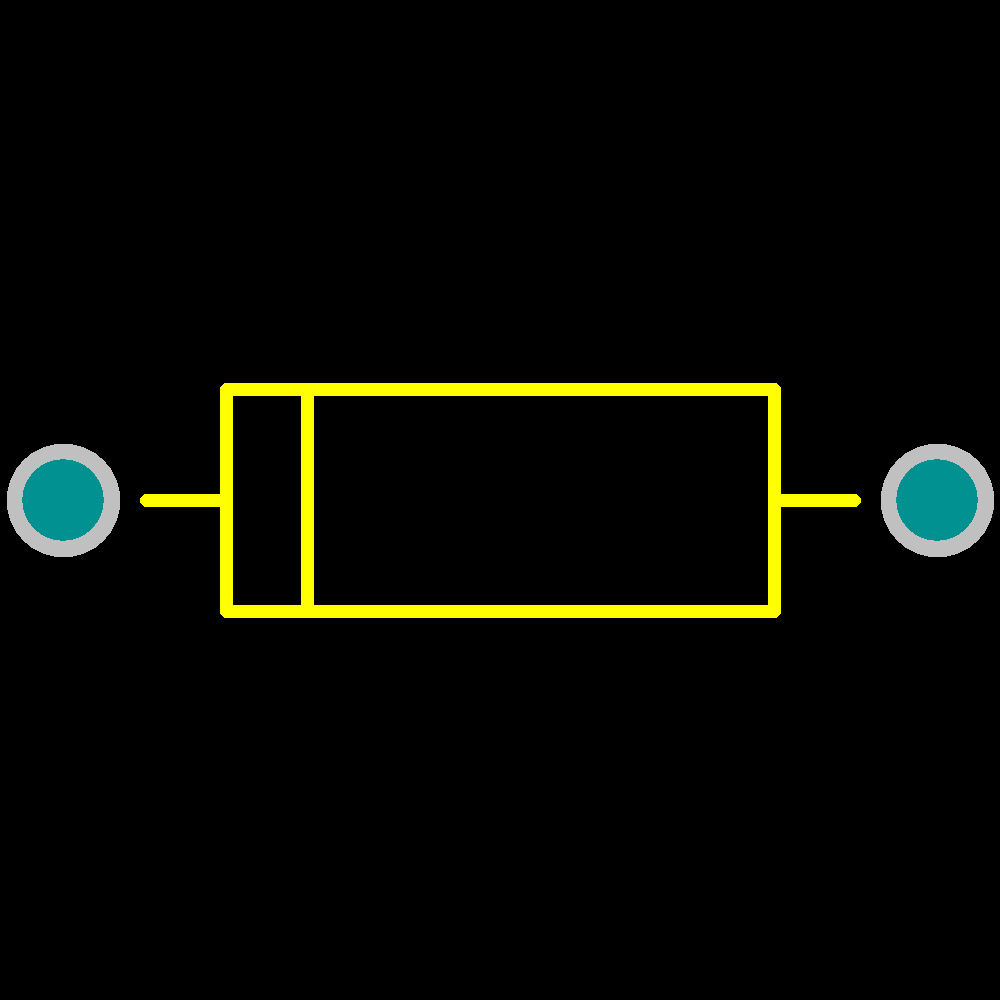

1N5355BG Footprint - onsemi
