1N5357BG - onsemi
Diode, Zener, Vr 20V, If 1A, Pkg Case 17, Vf 1.2V, Tj +200DEGC, Cs 5.1A, Pd 5W, Ir 65MA
Technical Details
| Breakdown Voltage | 20V |
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Diameter | 3.68mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 1.2V |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 3Ω |
| Introduction Date | 2000-06-28 |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 500nA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 0 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Dissipation | 5W |
| Power Rating | 5W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 20V |
| RoHS | Compliant |
| Schedule B | 8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050 |
| Test Current | 65mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 20V |
| Voltage Tolerance | 5% |
| Weight | 4.535924g |
| Width | 3.68mm |
| Working Voltage | 20V |
| Zener Current | 65mA |
| Zener Voltage | 20V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

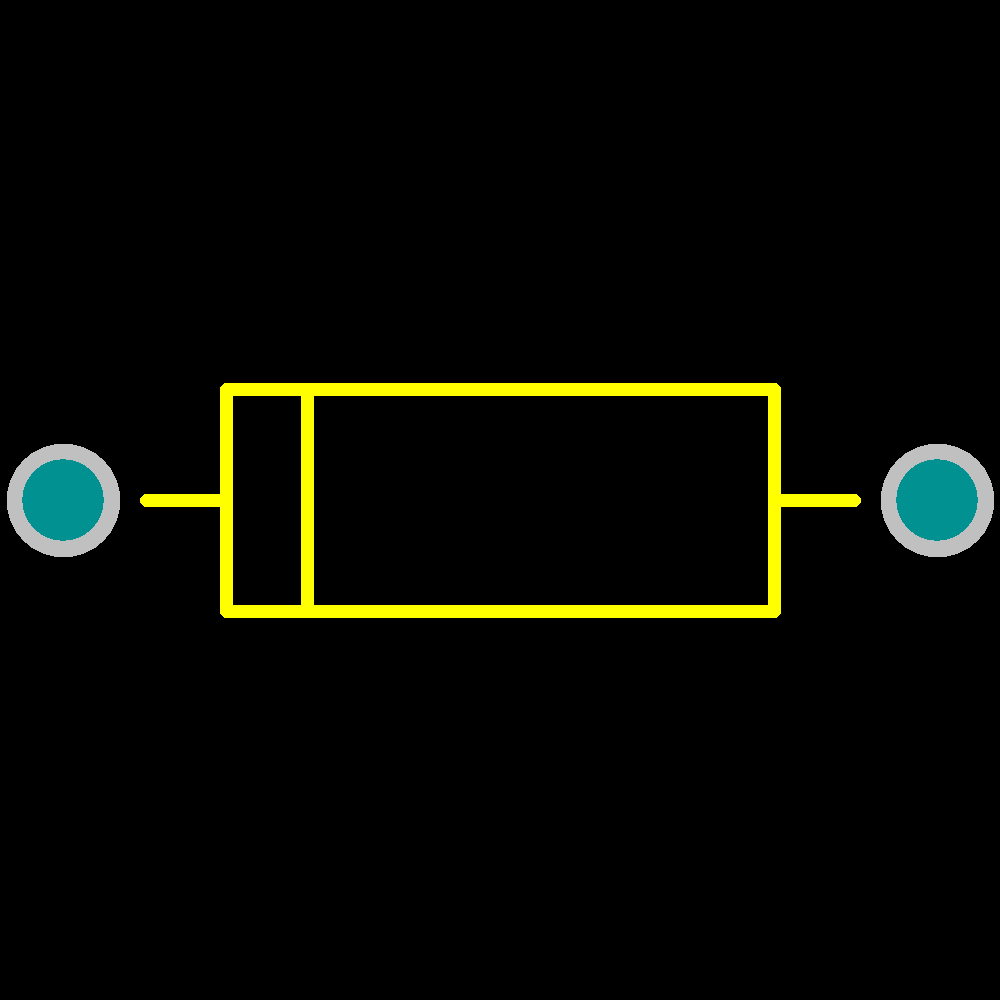

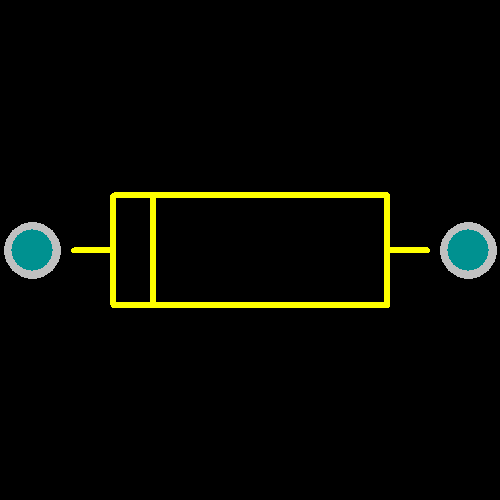

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Semikron | Unknown | ||
| onsemi | Obsolete | ||
| Diotec | Production | ||
| onsemi | Production | ||
| Semtech | Production | ||
| Semtech | Production | ||
| Semtech | Production | ||
| Central Semiconductor | Production | ||
| Semtech | Production |
