Discrete Semiconductors  >  Diodes  >  Zener Diodes

onsemi - 1N5357BRLG

1N5357BRLG - onsemi

1N5357B Series 5 W 1 A 20 V Axial Zener Voltage Regulator Diode - CASE-017AA

 Datasheets

Technical Details

Case/Package Axial
China RoHS Non-Compliant
Element Configuration Single
Forward Voltage 1.2V
Halogen Free Halogen Free
Height 3.68mm
Impedance 3Ω
Lead Free Lead Free
Length 8.89mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Material Plastic
Max Operating Temperature 200°C
Max Power Dissipation 5W
Max Reverse Leakage Current 500nA
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 0
Number of Terminals 2
Packaging Tape and Reel
Peak Reverse Current 500nA
Polarity Unidirectional
Power Dissipation 5W
Power Rating 5W
Radiation Hardening No
REACH SVHC No
Reference Voltage 20V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|85
Test Current 65mA
Tolerance 5%
Voltage Rating (DC) 20V
Voltage Tolerance 5%
Weight 4.535924g
Width 3.68mm
Working Voltage 20V
Zener Current 65mA
Zener Voltage 20V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

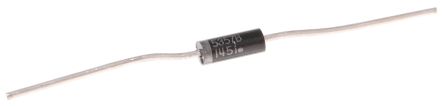

onsemi 1N5357BRLG | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production
Symbol

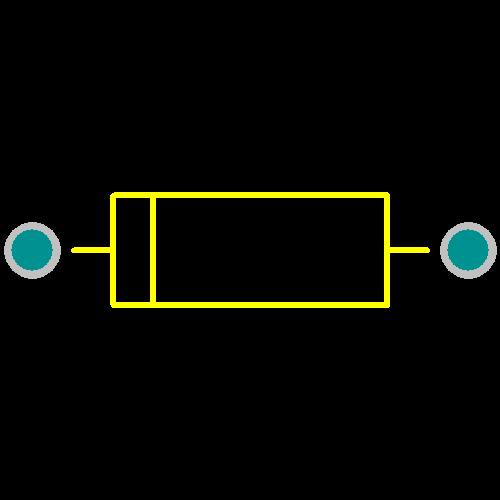

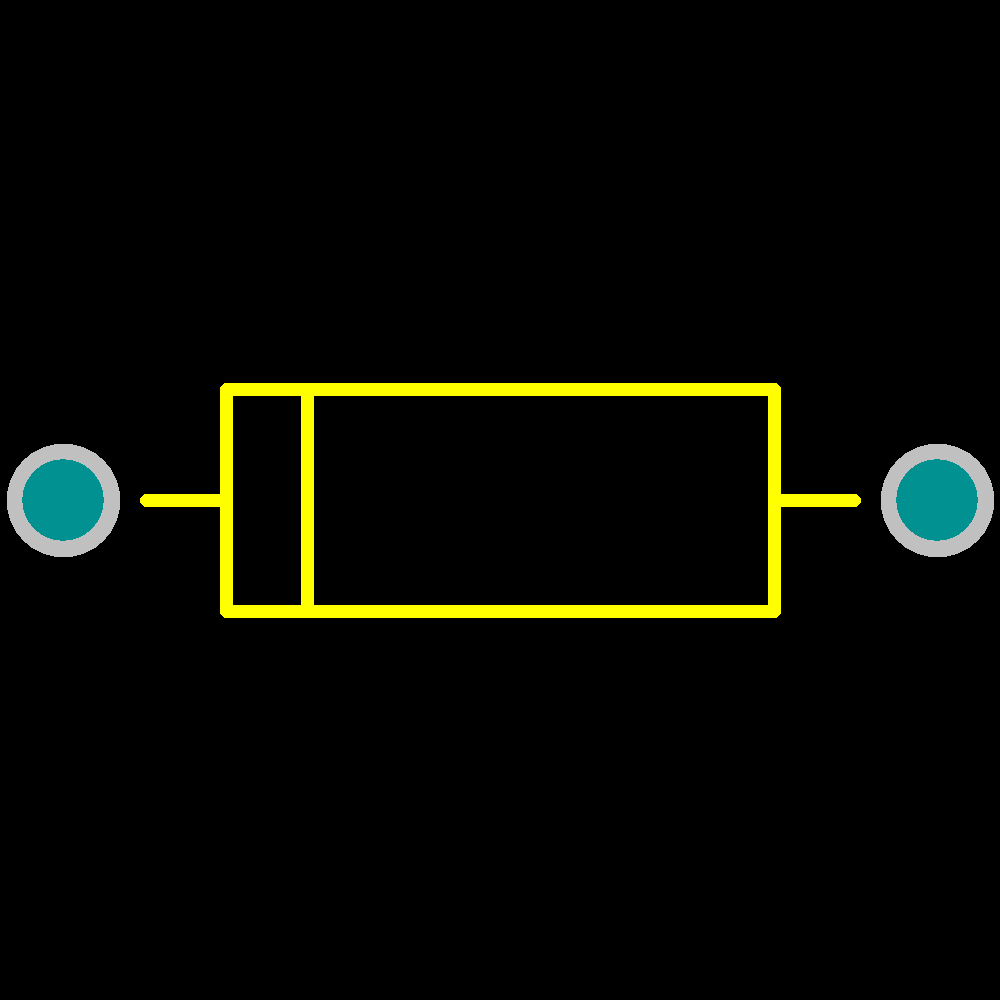

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
1N5357B
Obsolete
Semikron
1N5357B
Unknown
onsemi
1N5357BG
Production
onsemi
1N5357BRL
Obsolete
Diotec
1N5357B
Production
Semtech
1N4965
Production
Semtech
JAN1N4965
Production
Semtech
JANTXV1N4965
Production
Central Semiconductor
CZ5357B
Production
Semtech
JANTX1N4965
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
6547628P
DE: 460
 $ 0.4536 0.3945 0.3131 0.3131
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1249922
DE: 460
 $ 0.1726
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
6547628
DE: 140
 $ 0.5276 0.4536 0.3945 0.3131 0.3131
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chip One Stop
1N5357BRLG
JP: 3970
 $ 0.457 0.457 0.457 0.457 0.457 0.443
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
1N5357BRLG
US: 4000
 $ 0.2689 0.1605 0.1463
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
1N5357BRLG
US: 4000
 $ 0.2689 0.1605 0.1463
 Historical Pricing  Historical Stock Levels
Quantity
Location
Rochester Electronics
1N5357BRLG
US: 9737
 $ 0.3471 0.2881 0.2569
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
1N5357BRLG
US: 7950
 $ 0.3905 0.3211
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
1N5357BRLG
US: 4000
 $ 0.1888 0.1731
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
1N5357BRLG
US: 3970
 $ 0.457 0.443
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
1N5357BRLG
US: 1640
 $ 0.3905 0.3211
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
1N5357BRLGOSCT-ND
DE: 7991
 $ 0.4808 0.4105 0.4105 0.4808 0.1699 0.1699
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
1N5357BRLGOSTR-ND
DE: 4000
 $ 0.1552
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
863-1N5357BRLG
US: 6308
 $ 0.46 0.389 0.389 0.272 0.161 0.151
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
2317474
DE: 0
 $ 0.4586 0.4586 0.3205 0.1898 0.1898
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
2440554
DE: 0
 $ 0.1775
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
1N5357BRLG
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
1N5357BRLG
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
8762072
CA: 0
 $ 0.199
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
1N5357BRLG
US: 0
 $ 0.1383
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
1N5357BRLG
US: 0
 $ 0.195
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2317474
SG: 0
 $ 0.4272 0.4272 0.2997 0.1768 0.1738
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2440554
SG: 0
 $ 0.1654
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Microchip USA
1N5357BRLG
US: 2439
 $ 2.9624 2.9532
 Historical Pricing  Historical Stock Levels
Quantity
Location
Win Source
5900-1N5357BRLG
CN: 4000
 $ 0.1734 0.1454
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
1N5357BRLG
HK: 41563
 $ 0.0937 0.0937 0.0909 0.0861 0.0861
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
1N5357BRLG
SG: 8000
 $ 0.2007 0.1908
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fmall Co., Limited
1N5357BRLG
HK: 7170
 $ 0.1221 0.1221 0.1221 0.1142 0.1077 0.0985
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C9086
CN: 605
 $ 0.5891 0.4811 0.4351 0.3779 0.3366 0.3366
 Historical Pricing  Historical Stock Levels
Quantity
Location
ZTZ Technology Limited
1N5357BRLG
CN: 95950
 $ 0.1764 0.1666 0.1666 0.147 0.1372 0.1372
 Historical Pricing  Historical Stock Levels
Quantity
Location
RC Electronics
1N5357BRLG
CN: 77909
 $ 0.22 0.20 0.20 0.19 0.18 0.17
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
1N5357BRLG
CN: 56298
 $ 0.405 0.27 0.27 0.162 0.135 0.135
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
1N5357BRLG
CN: 11258
 $ 0.51 0.51 0.51 0.51 0.51 0.1391
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
1N5357BRLG
HK: 4024
 $ 0.2245 0.1663 0.1663 0.1446 0.1352 0.1214
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
1N5357BRLG
CN: 4002
 $ 0.4128 0.4128 0.242 0.1434 0.1342
 Historical Pricing  Historical Stock Levels
Quantity
Location
GoKey Chip Technology Co. Inc.
1N5357BRLG
CN: 85
 $ 0.2856 0.2856 0.2155 0.2155
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
1N5357BRLG
CN: 5149
 $ 0.1775 0.1638
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
1N5357BRLG
US: 1221
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
XingHuan International
1N5357BRLG
CN: 55000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
1N5357BRLG
CN: 18882
 $ 0.49 0.4655 0.4655 0.441 0.4361 0.4312
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
1N5357BRLG
US: 17091
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
1N5357BRLG
PL: 0
 $ 0.4463 0.4093 0.4093 0.2835 0.196 0.196
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
1N5357BRLG
US: 3970
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
1N5357BRLG
US: 8000
 $ 0.2138
 Historical Pricing  Historical Stock Levels
Quantity
Location
