Discrete Semiconductors  >  Diodes  >  Zener Diodes

onsemi - 1N5370BG

1N5370BG - onsemi

Diode, Zener, Vr 56V, If 1A, Pkg Case 17, Vf 1.2V, Tj +200DEGC, Cs 2.3A, Pd 5W, Ir 20MA

 Datasheets

Technical Details

Breakdown Voltage 56V
Case/Package Axial
China RoHS Non-Compliant
Country of Origin Mainland China
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Forward Voltage 1.2V
Halogen Free Halogen Free
Height 6.35mm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Impedance 35Ω
Introduction Date 2000-06-28
Lead Free Lead Free
Length 6.35mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Material Plastic
Max Operating Temperature 200°C
Max Power Dissipation 5W
Max Reverse Leakage Current 500nA
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 0
Number of Terminals 2
Packaging Bulk
Peak Reverse Current 500nA
Polarity Unidirectional
Power Dissipation 5W
Power Rating 5W
Radiation Hardening No
REACH SVHC No
Reference Voltage 56V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050, 8541100050|8541100050|8541100050, 8541100050|8541100050|8541100050|8541100050
Test Current 20mA
Tolerance 5%
Voltage Rating (DC) 56V
Voltage Tolerance 5%
Weight 4.535924g
Width 6.35mm
Working Voltage 56V
Zener Current 20mA
Zener Voltage 56V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

onsemi 1N5370BG | Farnell

Farnell

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production
Symbol

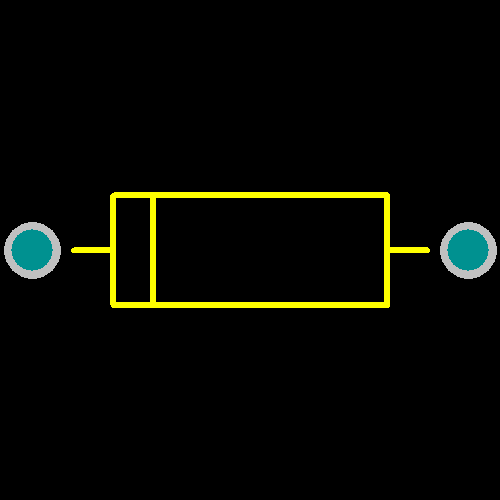

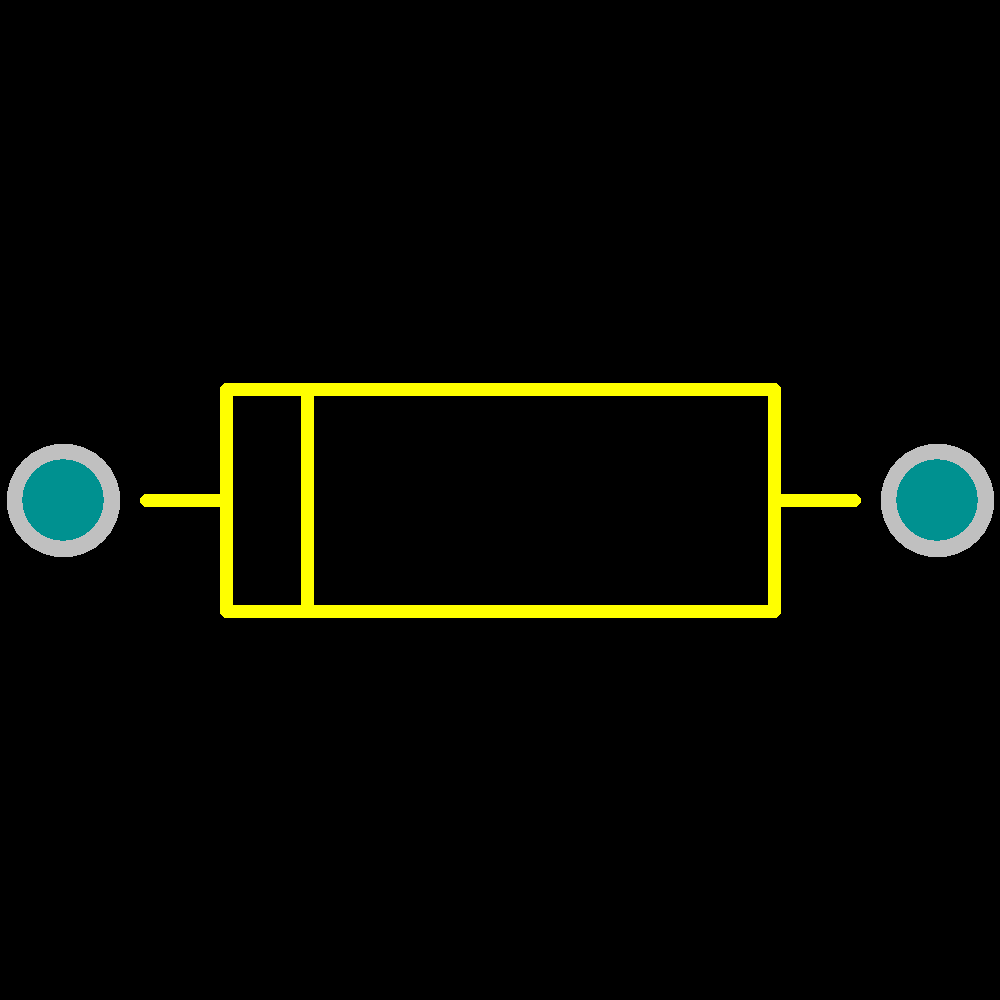

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
1N5370BRLG
Production
onsemi
1N5370B
Obsolete
onsemi
1N5370BRL
Obsolete
onsemi
1N5345BRLG
Production
onsemi
1N5357BG
Production
onsemi
1N5366BRLG
Production
onsemi
1N5336BG
Production
onsemi
1N5334BRLG
Production
onsemi
1N5335BRLG
Production
onsemi
1N5335BG
Production

See more alternatives See less alternatives
