Discrete Semiconductors > Diodes > Zener Diodes

1N5372BRLG - onsemi

Zener Diode Single 62V 5% 42Ohm 5000mW 2-Pin Case 017AA-01 T/R

Technical Details

Case/Package	Axial
China RoHS	Non-Compliant
Country of Origin	Mainland China
Diameter	3.68mm
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Halogen Free	Halogen Free
Height	8.89mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Impedance	42Ω
Introduction Date	2000-06-28
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	200°C
Max Power Dissipation	5W
Max Reverse Leakage Current	500nA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	0
Number of Terminals	2
Packaging	Tape and Reel
Polarity	Unidirectional
Power Dissipation	5W
Power Rating	5W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	62V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050, 8541100050\|8541100050\|8541100050, 8541100050\|8541100050\|8541100050\|8541100050
Test Current	20mA
Tolerance	5%
Voltage Rating (DC)	62V
Voltage Tolerance	5%
Zener Current	20mA
Zener Voltage	62V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1N5372BRLG | Rochester Electronics

Rochester Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

1N5372BRLG Symbol - onsemi

1N5372BRLG Symbol - onsemi

1N5372BRLG Symbol - onsemi

1N5372BRLG Symbol - onsemi

‹ ›

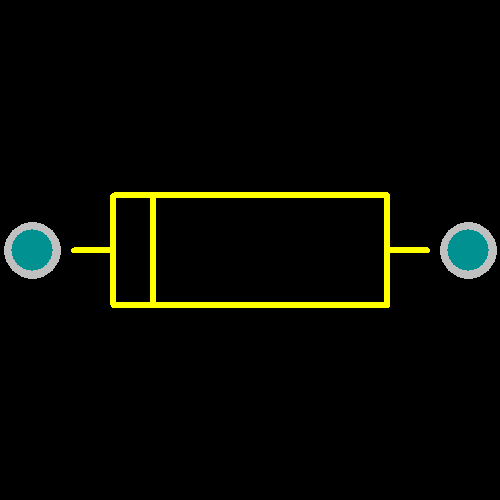

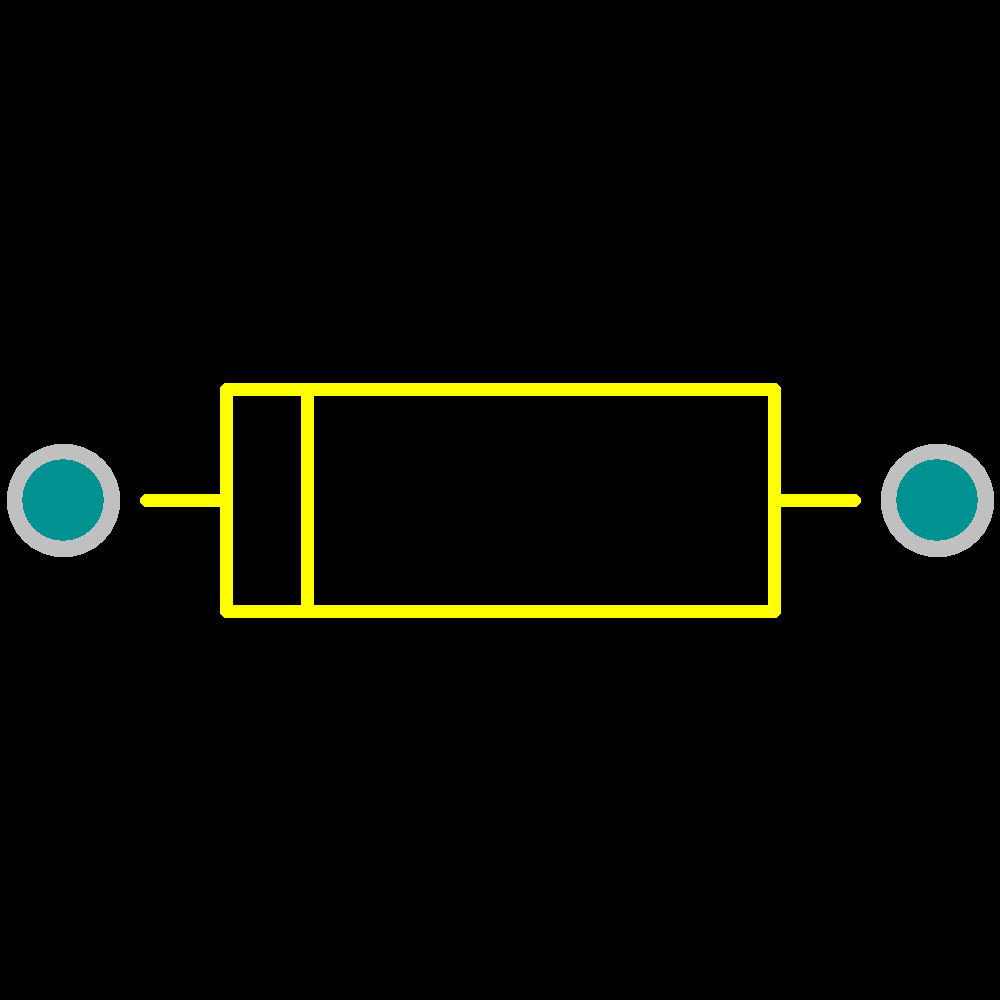

Footprint

1N5372BRLG Footprint - onsemi

1N5372BRLG Footprint - onsemi

1N5372BRLG Footprint - onsemi

1N5372BRLG Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	1N5372B	Obsolete
onsemi	1N5372BRL	Obsolete
onsemi	1N5372BG	Production
Multicomp	1N5372B	Production
onsemi	1N5345BRLG	Production
onsemi	1N5362BRLG	Production
onsemi	1N5339BG	Production
onsemi	1N5384BRLG	Production
onsemi	1N5333BRLG	Production
onsemi	1N5344BRLG	Production
