1N6281A - onsemi
Trans Voltage Suppressor Diode, 1500W, 23.1V V(RWM), Unidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 27V |
| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Clamping Voltage | 37.5V |
| Composition | Zener |
| Contact Plating | Tin |
| Diameter | 5.3mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 3.5V |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1982-12-01 |
| Lead Free | Contains Lead |
| Length | 9.5mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 28.4V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 25.7V |
| Min Operating Temperature | -65°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 23.1V |
| Packaging | Bulk |
| Peak Pulse Power | 1.5kW |
| Peak Reverse Current | 5µA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Power Rating | 1.5kW |
| REACH SVHC | No |
| Reverse Standoff Voltage | 23.1V |
| RoHS | Compliant |
| Termination | Axial |
| Voltage Rating (DC) | 27V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

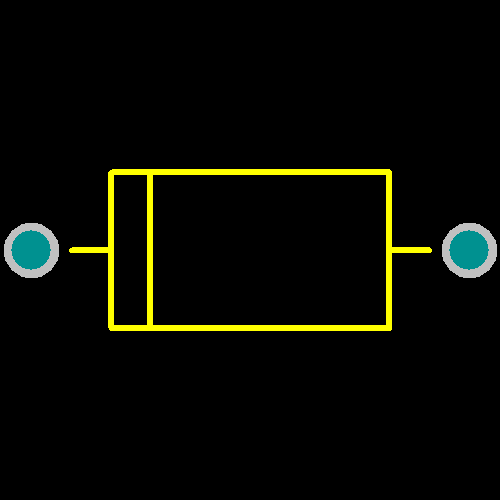

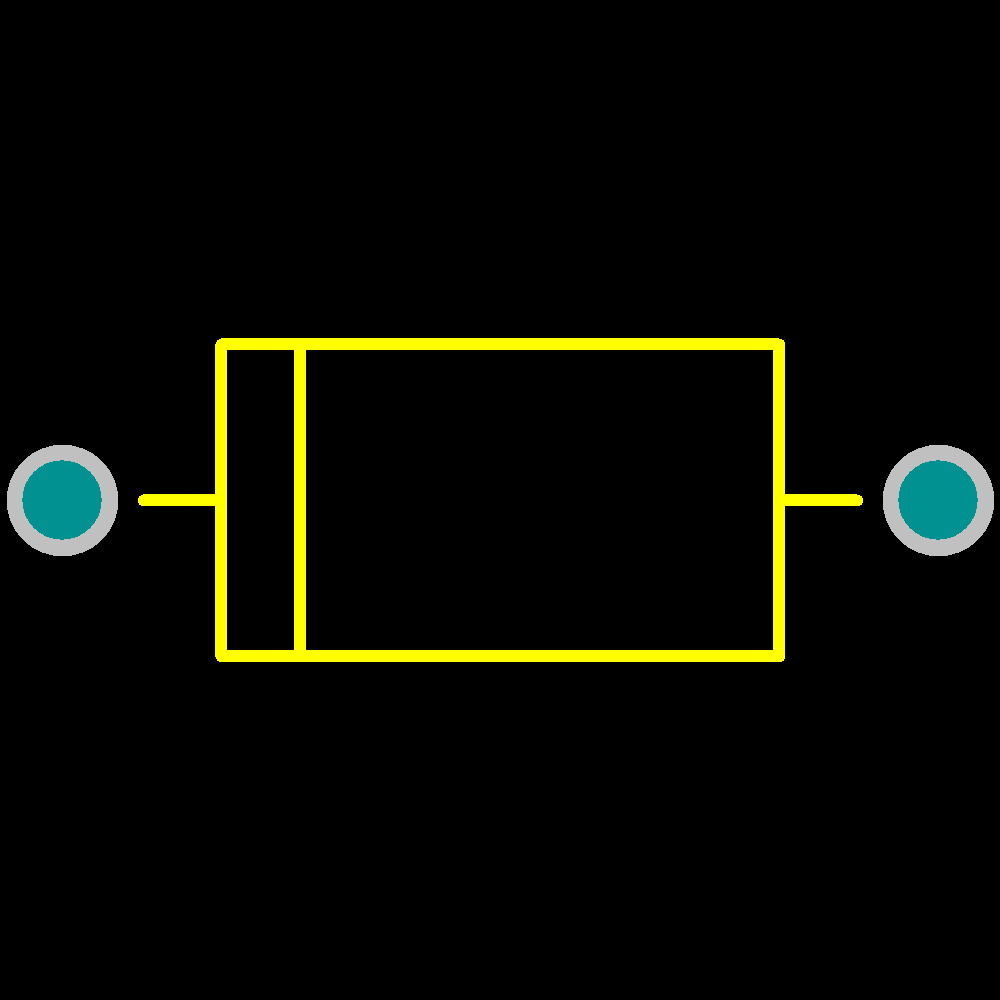

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| STMicroelectronics | Unknown | ||
| onsemi | Obsolete | ||
| Vishay | Obsolete | ||
| Semikron | Unknown | ||
| Littelfuse | Obsolete | ||
| Central Semiconductor | Unknown | ||
| Littelfuse | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Central Semiconductor | Unknown | ||
| onsemi | Obsolete |
