Technical Details
| Breakdown Voltage | 15.16V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 21.5V |
| Composition | Zener |
| Country of Origin | Malaysia |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1996-08-01 |
| Lead Free | Contains Lead |
| Leakage Current | 2.5µA |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 15.92V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Max Surge Current | 18.6A |
| Min Breakdown Voltage | 14.4V |
| Min Operating Temperature | -65°C |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 13V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 18.6A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 2.5µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 14.4V |
| Reverse Standoff Voltage | 13V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

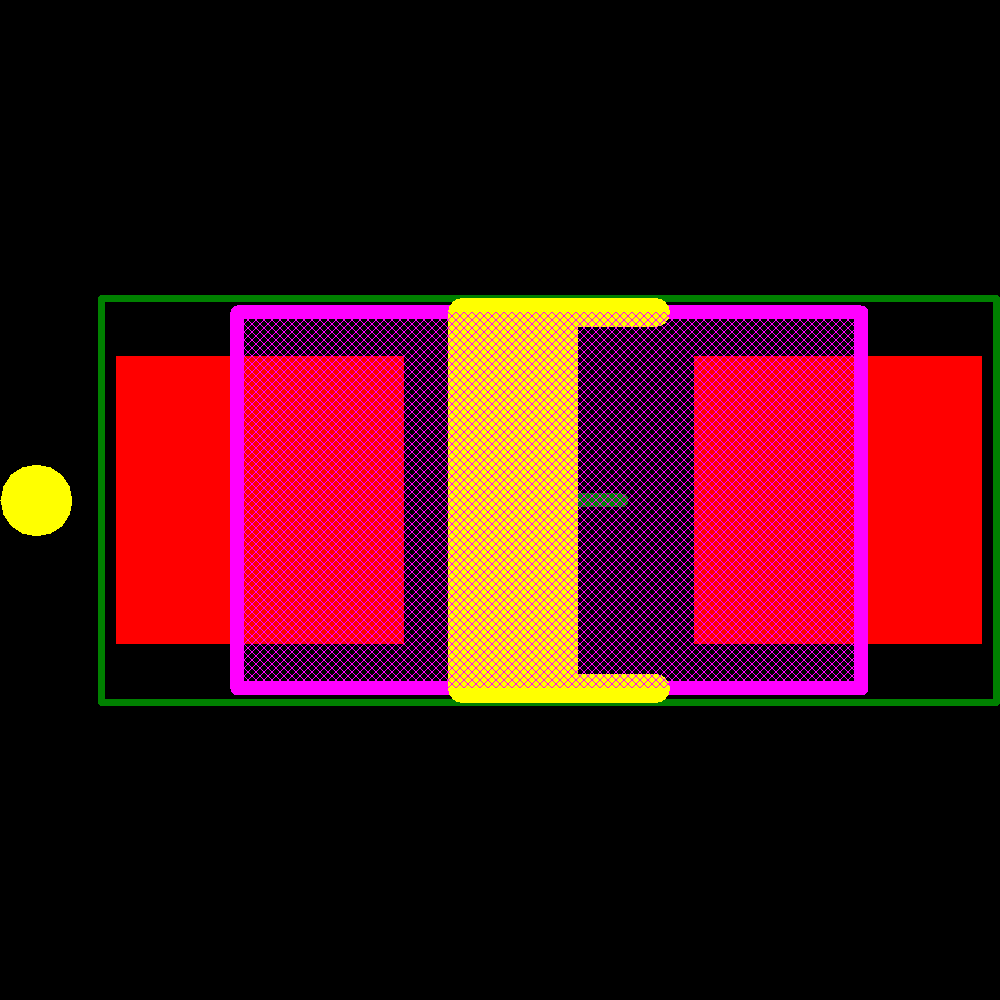

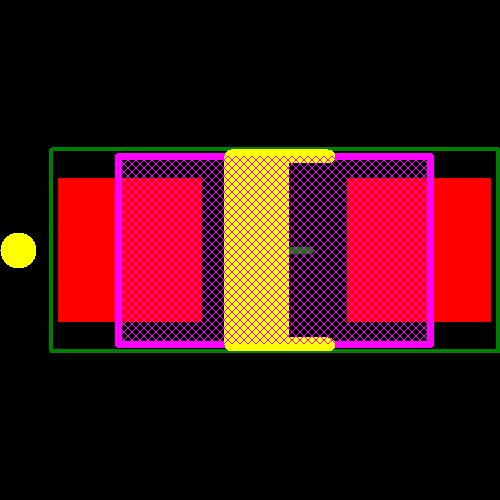

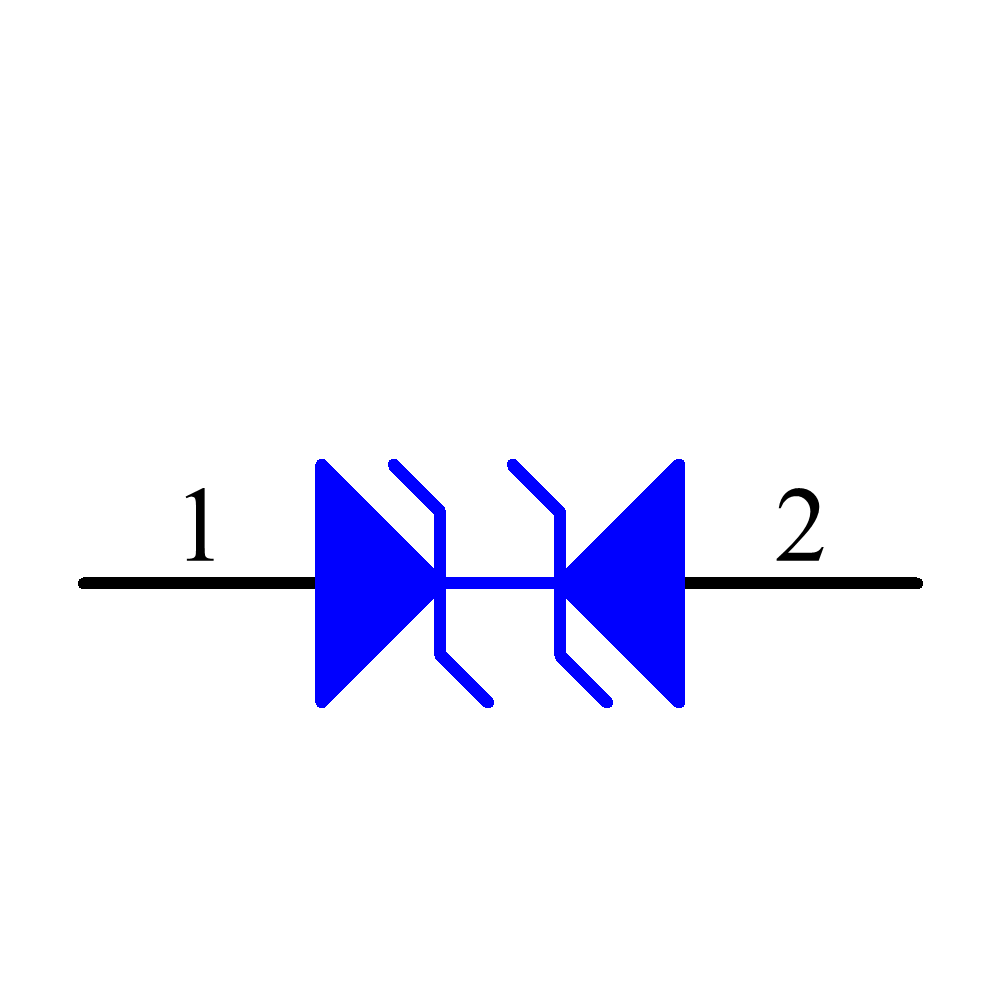

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Taiwan Semiconductor | Production | ||
| onsemi | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Production | ||
| EIC Semiconductor | Production | ||
| EIC Semiconductor | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Rectron | Production | ||
| Taiwan Semiconductor | Production |
