Technical Details
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Country of Origin | Malaysia |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 7Ω |
| Introduction Date | 1996-04-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Material | Plastic |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 500nA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Dissipation | 500mW |
| Power Rating | 1.5W |
| REACH SVHC | No |
| Reference Voltage | 13V |
| Reverse Standoff Voltage | 9.9V |
| RoHS | Compliant |
| Test Current | 28.8mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 13V |
| Voltage Tolerance | 5% |
| Zener Current | 28.8mA |
| Zener Voltage | 13V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

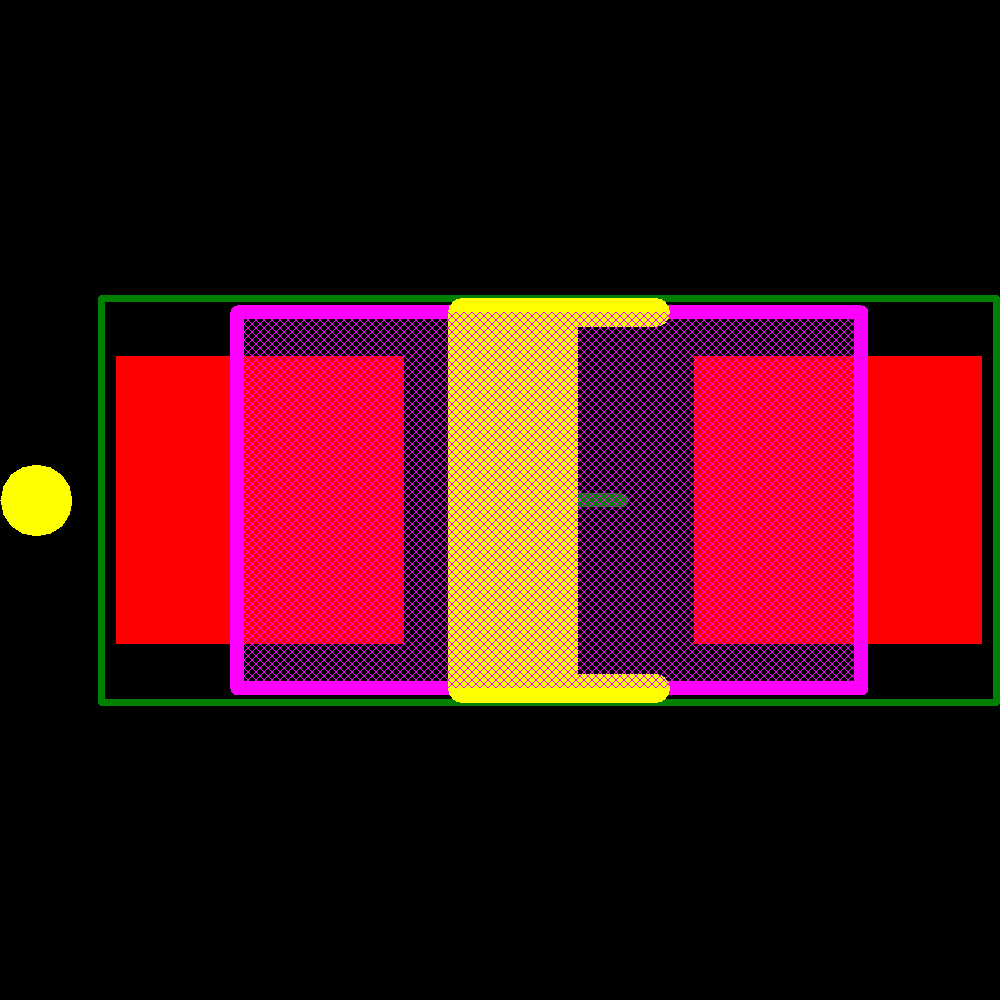

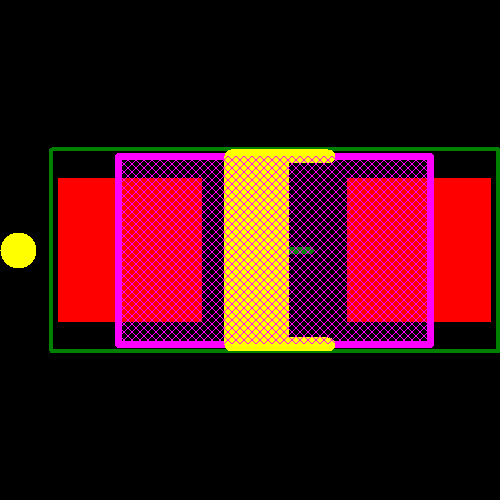

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panjit | Production | ||
| onsemi | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| Panjit | Production | ||
| Panjit | Production | ||
| onsemi | Production | ||
| Taiwan Semiconductor | Production | ||
| Taiwan Semiconductor | Production | ||
| onsemi | Production |
