Discrete Semiconductors  >  Diodes  >  Zener Diodes

onsemi - 1SMA5929BT3G

1SMA5929BT3G - onsemi

Zener Diode Single 15V 5% 9Ohm 1500mW Automotive 2-Pin SMA T/R / DIODE ZENER 15V 1.5W SMA

 Datasheets

Technical Details

Breakdown Voltage 15.75V
Case/Package SMA
China RoHS Non-Compliant
Contact Plating Tin
Country of Origin Vietnam
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
ESD Protection Yes
Forward Voltage 1.5V
Halogen Free Halogen Free
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Impedance 9Ω
Introduction Date 1999-01-01
Lead Free Lead Free
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Material Plastic
Max Operating Temperature 150°C
Max Power Dissipation 500mW
Max Reverse Leakage Current 500nA
Min Operating Temperature -65°C
Number of Elements 1
Number of Pins 2
Number of Terminals 2
Packaging Tape and Reel
Peak Reverse Current 500nA
Polarity Unidirectional
Power Dissipation 500mW
Power Rating 1.5W
Radiation Hardening No
REACH SVHC No
Reference Voltage 15V
Reverse Standoff Voltage 11.4V
RoHS Compliant
Schedule B 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|85
Test Current 25mA
Tolerance 5%
Voltage Rating (DC) 15V
Voltage Tolerance 5%
Working Voltage 15V
Zener Current 25mA
Zener Voltage 15V

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

onsemi 1SMA5929BT3G | Future Electronics

Future Electronics

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production
Symbol

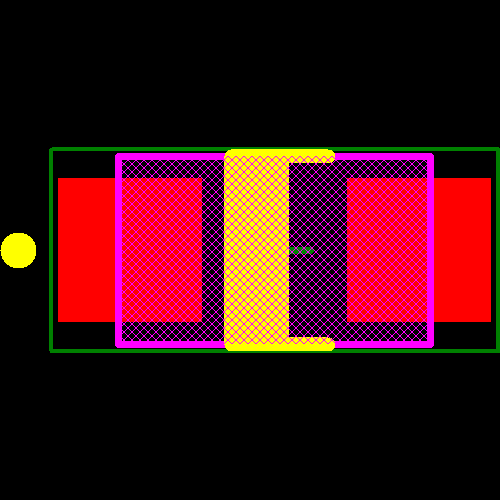

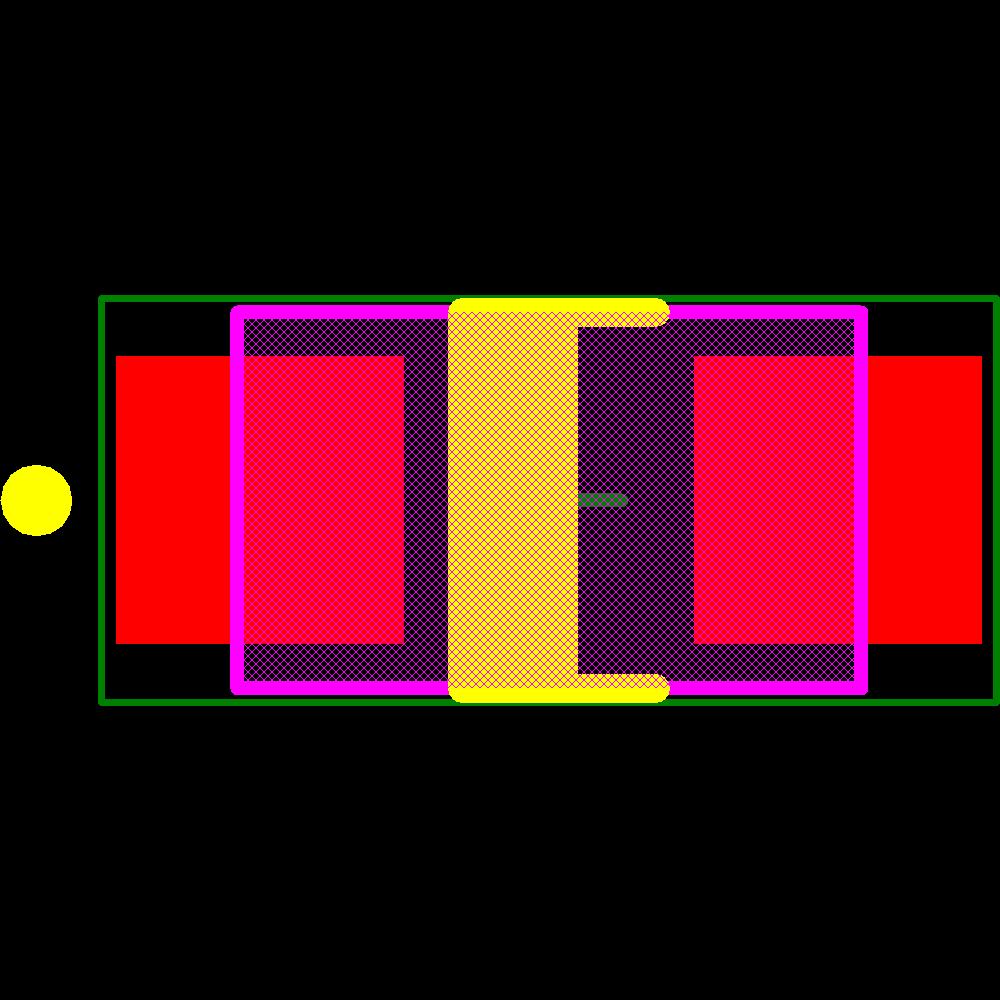

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
SZ1SMA5929BT3G
Production
Taiwan Semiconductor
1SMA5929
Production
Panjit
1SMA5929_R2_10001
Production
onsemi
1SMA5929BT3
Obsolete
Panjit
1SMA5929_R1_10001
Production
Taiwan Semiconductor
1SMA5929HR2
Production
Panjit
1SMA5929_R1_00001
Production
Taiwan Semiconductor
1SMA5929 R2
Production
Taiwan Semiconductor
1SMA5929 M2G
Production
Taiwan Semiconductor
1SMA5929 R3G
Production

See more alternatives See less alternatives
