Discrete Semiconductors > Diodes > Zener Diodes

1SMB5926BT3G - onsemi

Diode Zener Single 11V 5% 550mW Automotive 2-Pin SMB T/R

Technical Details

Case/Package	SMB
China RoHS	Non-Compliant
Element Configuration	Single
Forward Voltage	1.5V
Halogen Free	Halogen Free
Height	2.28mm
Impedance	5.5Ω
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	550mW
Max Reverse Leakage Current	1µA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Packaging	Tape and Reel
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Dissipation	550mW
Power Rating	3W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	11V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050, 8541100050\|8541100050\|8541100050, 8541100050\|8541100050\|8541100050\|8541100050
Test Current	34.1mA
Tolerance	5%
Voltage Rating (DC)	11V
Voltage Tolerance	5%
Width	3.95mm
Working Voltage	11V
Zener Current	34.1mA
Zener Voltage	11V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1SMB5926BT3G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

1SMB5926BT3G Symbol - onsemi

1SMB5926BT3G Symbol - onsemi

1SMB5926BT3G Symbol - onsemi

1SMB5926BT3G Symbol - onsemi

‹ ›

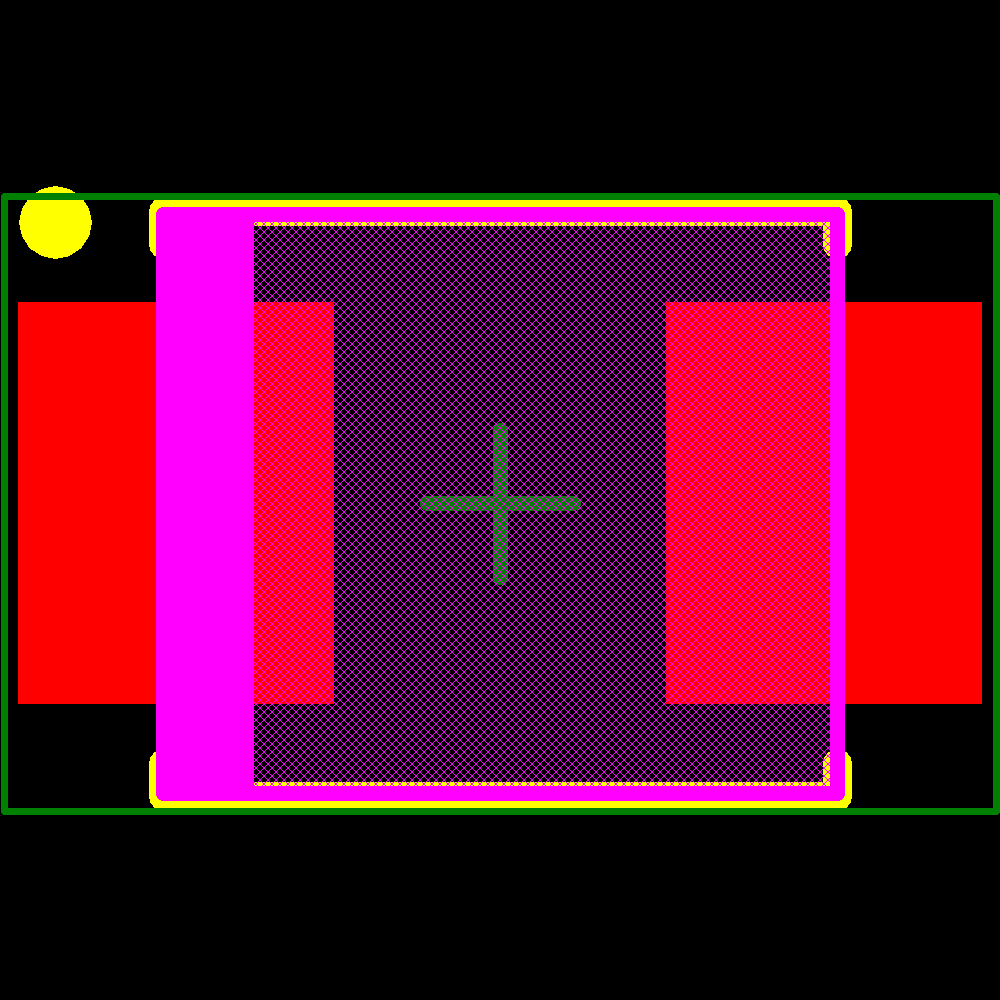

Footprint

1SMB5926BT3G Footprint - onsemi

1SMB5926BT3G Footprint - onsemi

1SMB5926BT3G Footprint - onsemi

1SMB5926BT3G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	1SMA5926BT3G	Production
onsemi	1SMB5926BT3	Obsolete
onsemi	1SMA5926BT3	Obsolete
onsemi	SZ1SMA5926BT3G	Production
Diodes Inc.	1SMB5937B-13	Production
MCC	SMBJ5370B-TP	Production
MCC	SMBJ5388B-TP	Production
Vishay	SMBZ5932B-M3/5B	Production
Vishay	SMBZ5935B-M3/52	Production
onsemi	SZ1SMB5940BT3G	Production
