Discrete Semiconductors > Diodes > Zener Diodes

1SMB5937BT3G - onsemi

Diode Zener Single 33V 5% 550mW Automotive 2-Pin SMB T/R

Technical Details

Breakdown Voltage	33V
Case/Package	SMB
China RoHS	Non-Compliant
Contact Plating	Tin
Country of Origin	Vietnam
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
ESD Protection	Yes
Forward Voltage	1.5V
Halogen Free	Halogen Free
Height	2.28mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Impedance	33Ω
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Material	Plastic
Max Operating Temperature	150°C
Max Power Dissipation	550mW
Max Reverse Leakage Current	1µA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Packaging	Tape and Reel
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Dissipation	550mW
Power Rating	3W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	33V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|85
Test Current	11.4mA
Tolerance	5%
Voltage Rating (DC)	33V
Voltage Tolerance	5%
Width	3.95mm
Working Voltage	33V
Zener Current	11.4mA
Zener Voltage	33V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1SMB5937BT3G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

1SMB5937BT3G Symbol - onsemi

1SMB5937BT3G Symbol - onsemi

1SMB5937BT3G Symbol - onsemi

1SMB5937BT3G Symbol - onsemi

‹ ›

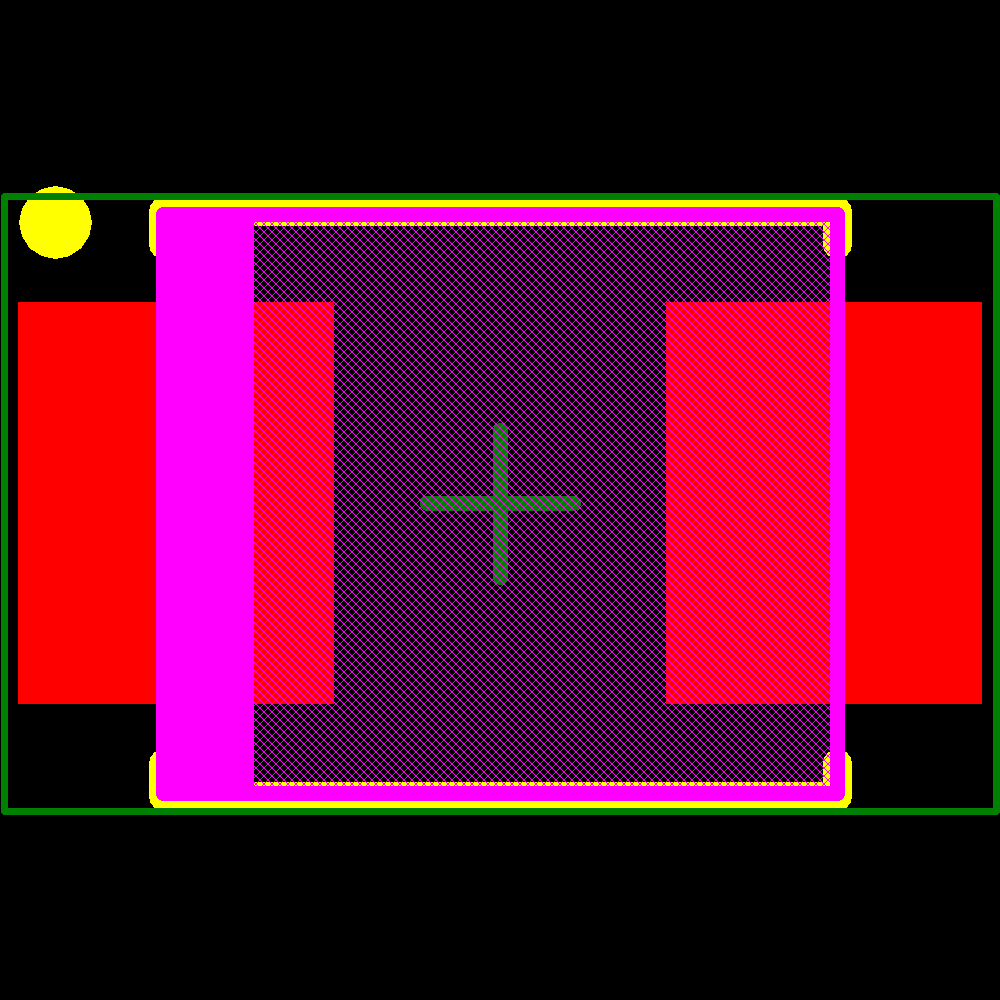

Footprint

1SMB5937BT3G Footprint - onsemi

1SMB5937BT3G Footprint - onsemi

1SMB5937BT3G Footprint - onsemi

1SMB5937BT3G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	1SMB5937BT3	Obsolete
Vishay	SMZJ3801A-E3/5B	Obsolete
Vishay	SMZJ3801A-E3/52	Obsolete
Vishay	SMZJ3801A	Obsolete
Diodes Inc.	1SMB5937B-13	Production
MCC	SMBJ5370B-TP	Production
MCC	SMBJ5388B-TP	Production
Vishay	SMBZ5932B-M3/5B	Production
Vishay	SMBZ5935B-M3/52	Production
onsemi	SZ1SMB5940BT3G	Production

See more alternatives See less alternatives
