1SMB5944BT3G - onsemi

Diode, Zener, Vr 62V, If 200MA, Pkg Smb, Vf 1.5V, Tj +150C, Pd 3W, Ir 6MA, -65 to +150C

Technical Details

Case/Package	SMB
China RoHS	Non-Compliant
Contact Plating	Tin
Country of Origin	Vietnam
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
ESD Protection	Yes
Forward Voltage	1.5V
Halogen Free	Halogen Free
Height	2.28mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Impedance	100Ω
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	550mW
Max Reverse Leakage Current	1µA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Packaging	Tape and Reel
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Dissipation	550mW
Power Rating	3W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	62V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050, 8541100050\|8541100050\|8541100050, 8541100050\|8541100050\|8541100050\|8541100050
Test Current	6mA
Tolerance	5%
Voltage Rating (DC)	62V
Voltage Tolerance	5%
Width	3.95mm
Working Voltage	62V
Zener Current	6mA
Zener Voltage	62V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

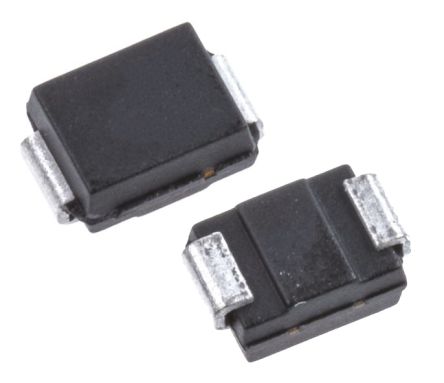

onsemi 1SMB5944BT3G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

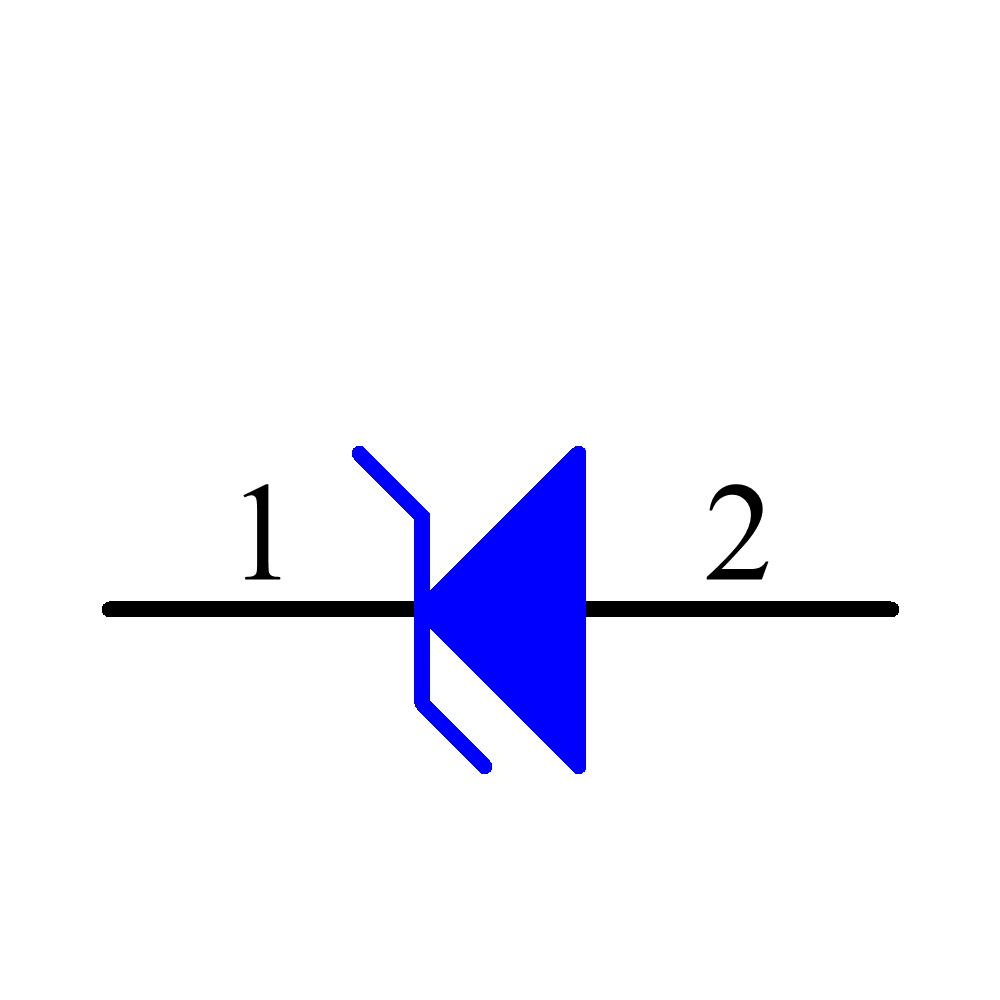

1SMB5944BT3G Symbol - onsemi

1SMB5944BT3G Symbol - onsemi

1SMB5944BT3G Symbol - onsemi

1SMB5944BT3G Symbol - onsemi

‹ ›

Footprint

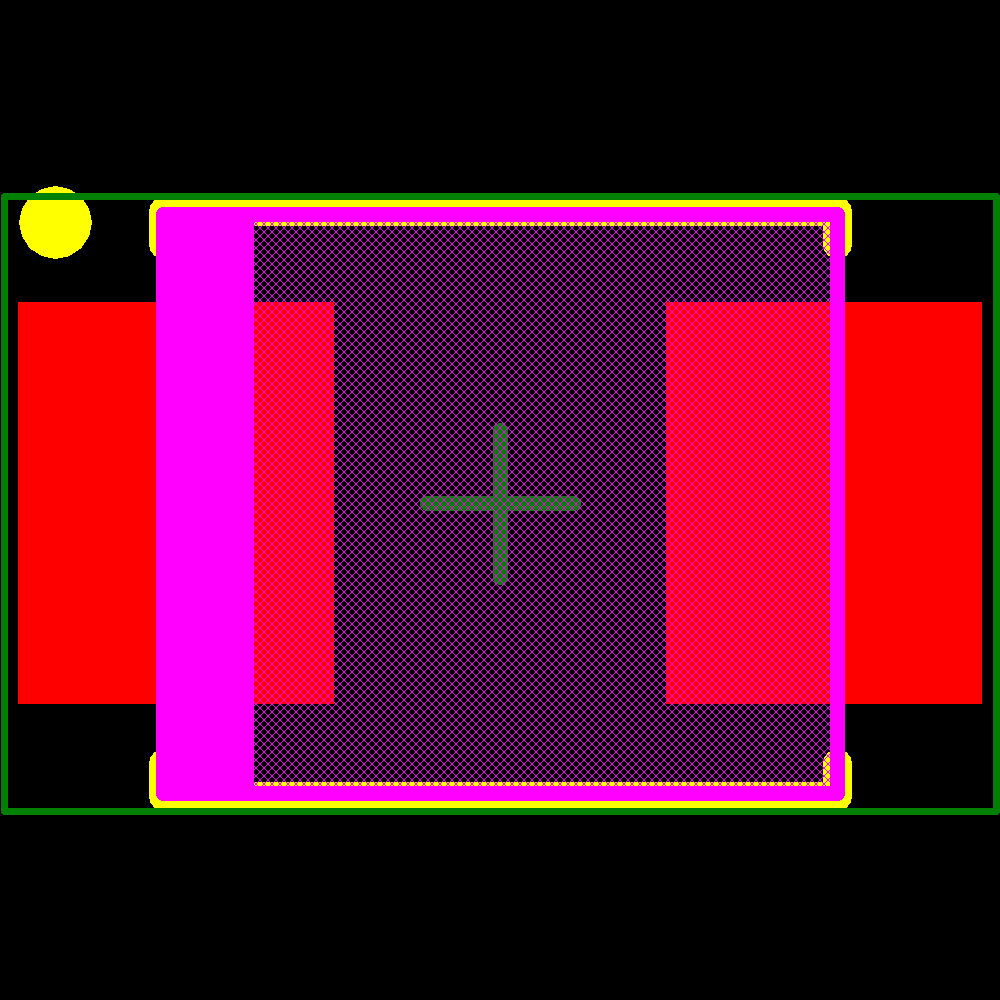

1SMB5944BT3G Footprint - onsemi

1SMB5944BT3G Footprint - onsemi

1SMB5944BT3G Footprint - onsemi

1SMB5944BT3G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	1SMA5944BT3G	Obsolete
onsemi	1SMA5944BT3	Obsolete
onsemi	1SMB5944BT3	Obsolete
Vishay	SMZJ3808A-E3/52	Obsolete
Vishay	SMZJ3808A-E3/5B	Obsolete
Vishay	SMZJ3808A	Obsolete
Diodes Inc.	1SMB5937B-13	Production
MCC	SMBJ5370B-TP	Production
MCC	SMBJ5388B-TP	Production
Vishay	SMBZ5932B-M3/5B	Production

See more alternatives See less alternatives
