1SMB5948BT3G - onsemi

Diode, Zener, Vr 91V, If 200MA, Pkg Smb, Vf 1.5V, Tj +150DEGC, Pd 3W, Ir 4.1MA

Technical Details

Case/Package	SMB
China RoHS	Non-Compliant
Country of Origin	Vietnam
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Forward Voltage	1.5V
Halogen Free	Halogen Free
Height	2.28mm
Harmonized Tariff Schedule (HTS) Code	8541.10.00.50
Impedance	200Ω
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	550mW
Max Reverse Leakage Current	1µA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Packaging	Tape and Reel
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Dissipation	550mW
Power Rating	3W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	91V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050, 8541100050\|8541100050\|8541100050, 8541100050\|8541100050\|8541100050\|8541100050
Test Current	4.1mA
Tolerance	5%
Voltage Rating (DC)	91V
Voltage Tolerance	5%
Width	3.95mm
Working Voltage	91V
Zener Current	4.1mA
Zener Voltage	91V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1SMB5948BT3G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

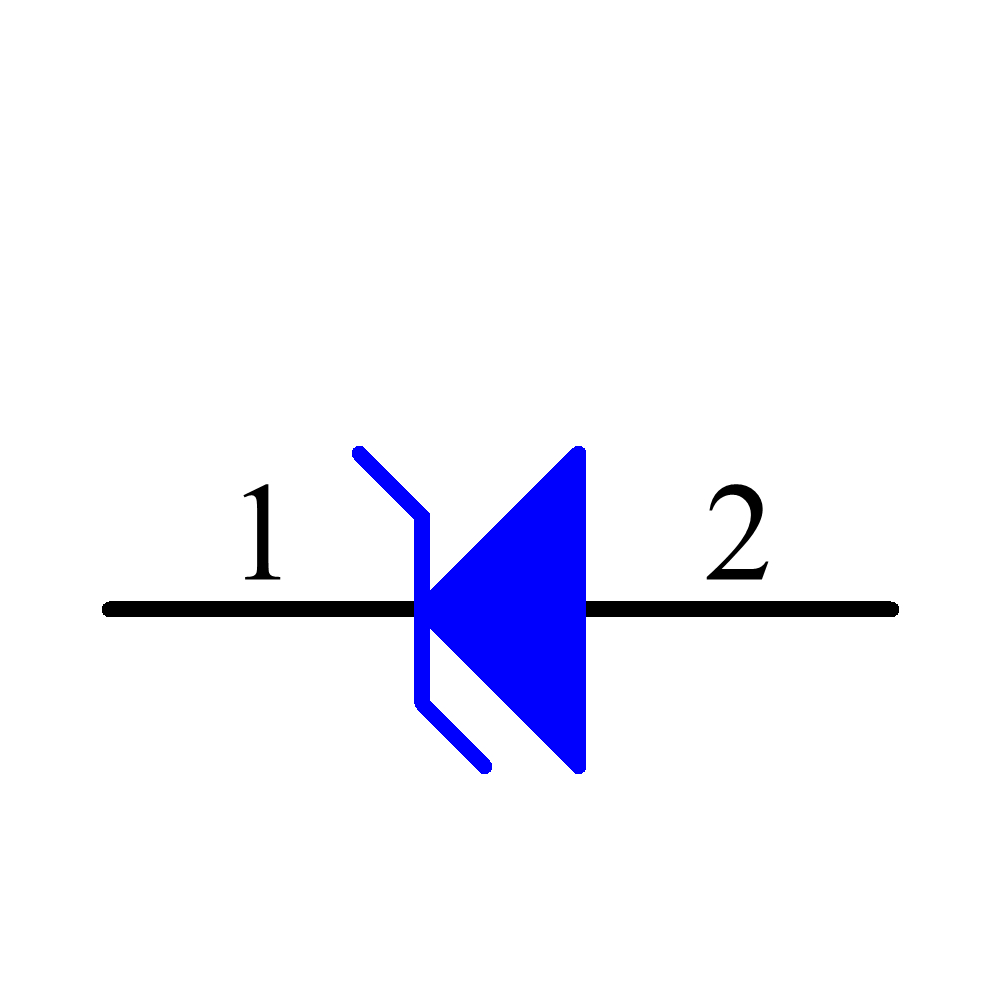

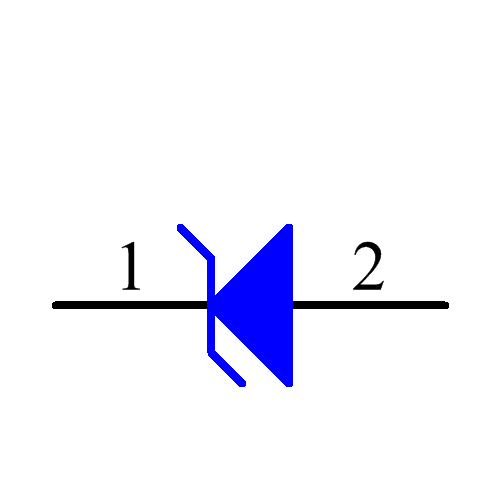

Symbol

1SMB5948BT3G Symbol - onsemi

1SMB5948BT3G Symbol - onsemi

1SMB5948BT3G Symbol - onsemi

1SMB5948BT3G Symbol - onsemi

‹ ›

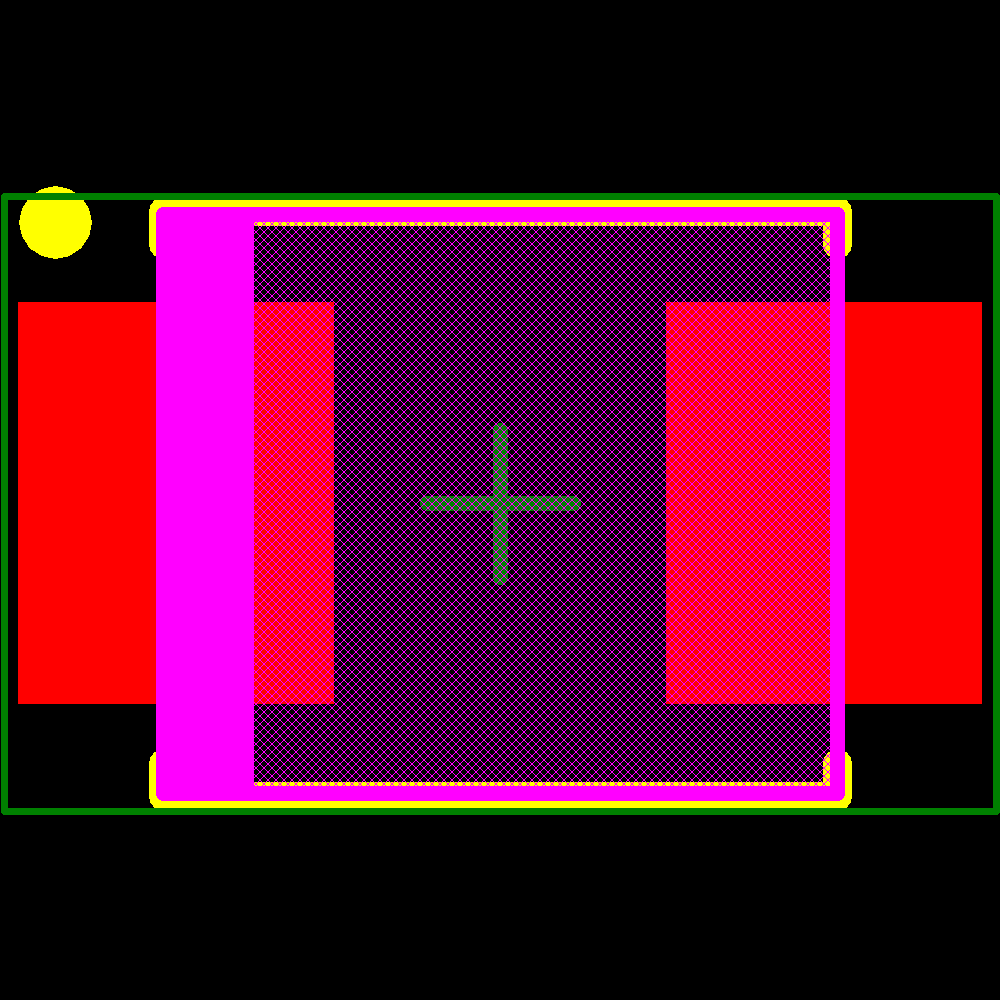

Footprint
