1SMB5949BT3G - onsemi

Diode; Zener; Vr 100V; If 200mA; Pkg SMB; Vf 1.5V; Tj +150degc; Pd 3W; Ir 3.7mA

Technical Details

Breakdown Voltage	105V
Case/Package	SMB
China RoHS	Non-Compliant
Contact Plating	Tin
Element Configuration	Single
ESD Protection	Yes
Forward Voltage	1.5V
Halogen Free	Halogen Free
Height	2.28mm
Impedance	250Ω
Lead Free	Lead Free
Length	4.6mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	550mW
Max Reverse Leakage Current	1µA
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	2
Number of Terminals	2
Packaging	Tape and Reel
Peak Reverse Current	1µA
Polarity	Unidirectional
Power Dissipation	550mW
Power Rating	3W
Radiation Hardening	No
REACH SVHC	No
Reference Voltage	100V
RoHS	Compliant
Schedule B	8541100050, 8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|8541100050\|85
Test Current	3.7mA
Tolerance	5%
Voltage Rating (DC)	100V
Voltage Tolerance	5%
Width	3.95mm
Working Voltage	100V
Zener Current	3.7mA
Zener Voltage	100V

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 1SMB5949BT3G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

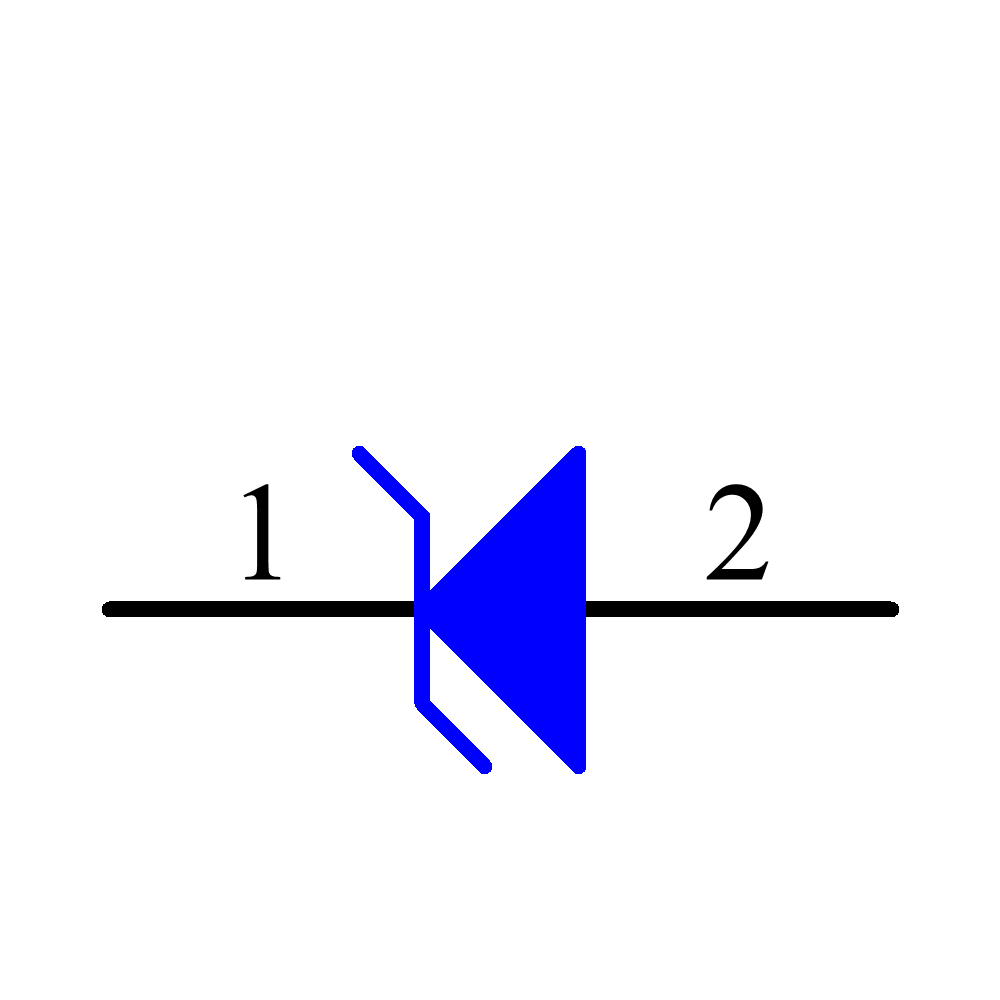

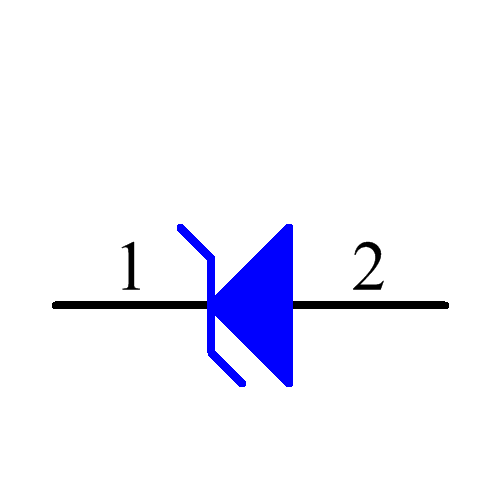

Symbol

1SMB5949BT3G Symbol - onsemi

1SMB5949BT3G Symbol - onsemi

1SMB5949BT3G Symbol - onsemi

1SMB5949BT3G Symbol - onsemi

‹ ›

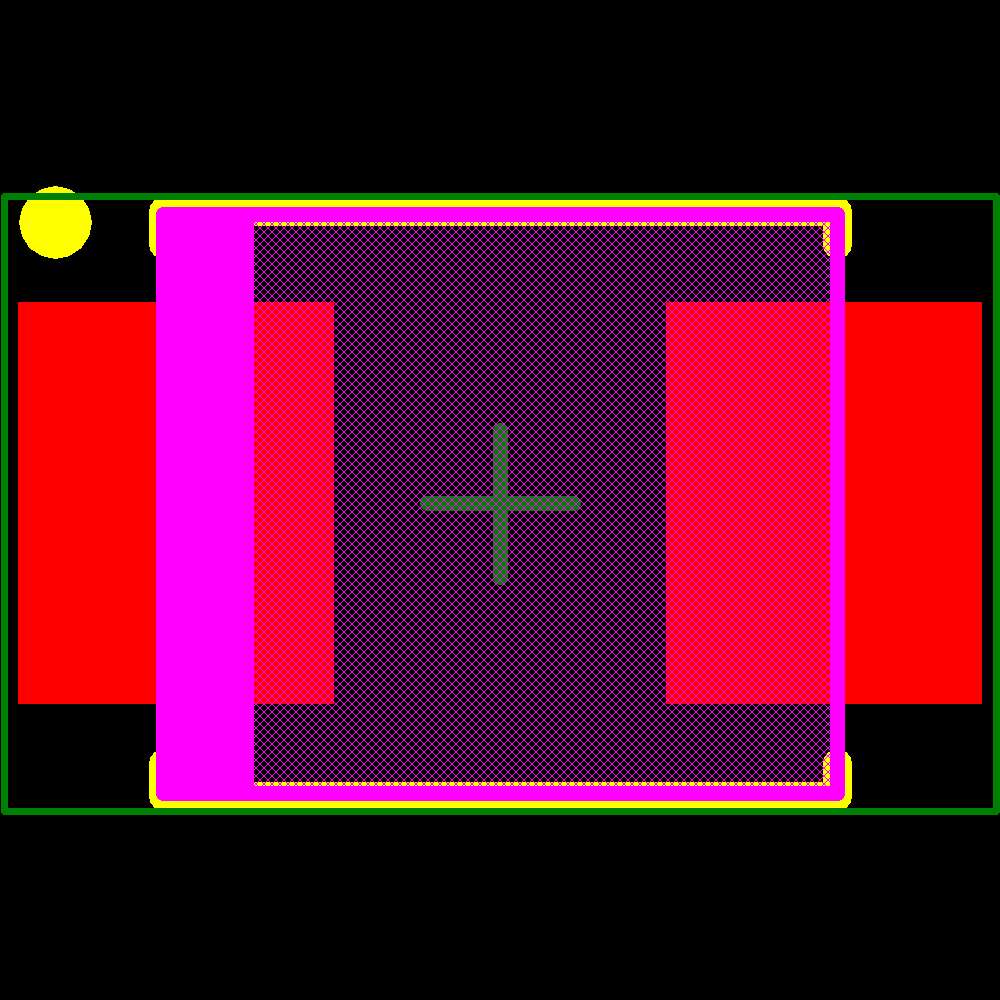

Footprint
