2N3772G - onsemi
Transistor, Bipolar, Si, NPN, High Power, Vceo 60VDC, IC 20A, Pd 150W, TO-204, Hfe 5
Technical Details
| Body Material | Metal |
| Case/Package | TO-204-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1.4V |
| Collector Emitter Voltage (VCEO) | 60V |
| Current Rating | 20A |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 7V |
| Frequency | 200kHz |
| Gain Bandwidth Product | 200kHz |
| Height | 26.67mm |
| hFE Min | 5 |
| Lead Free | Lead Free |
| Length | 39.37mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 20A |
| Max Frequency | 200kHz |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 150W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Polarity | NPN |
| Power Dissipation | 150W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 200kHz |
| Voltage Rating (DC) | 60V |
| Weight | 13.607771g |
| Width | 8.509mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

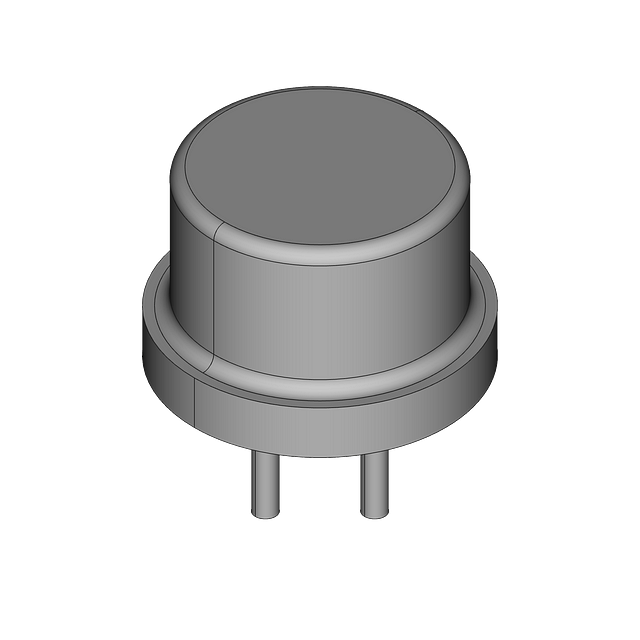

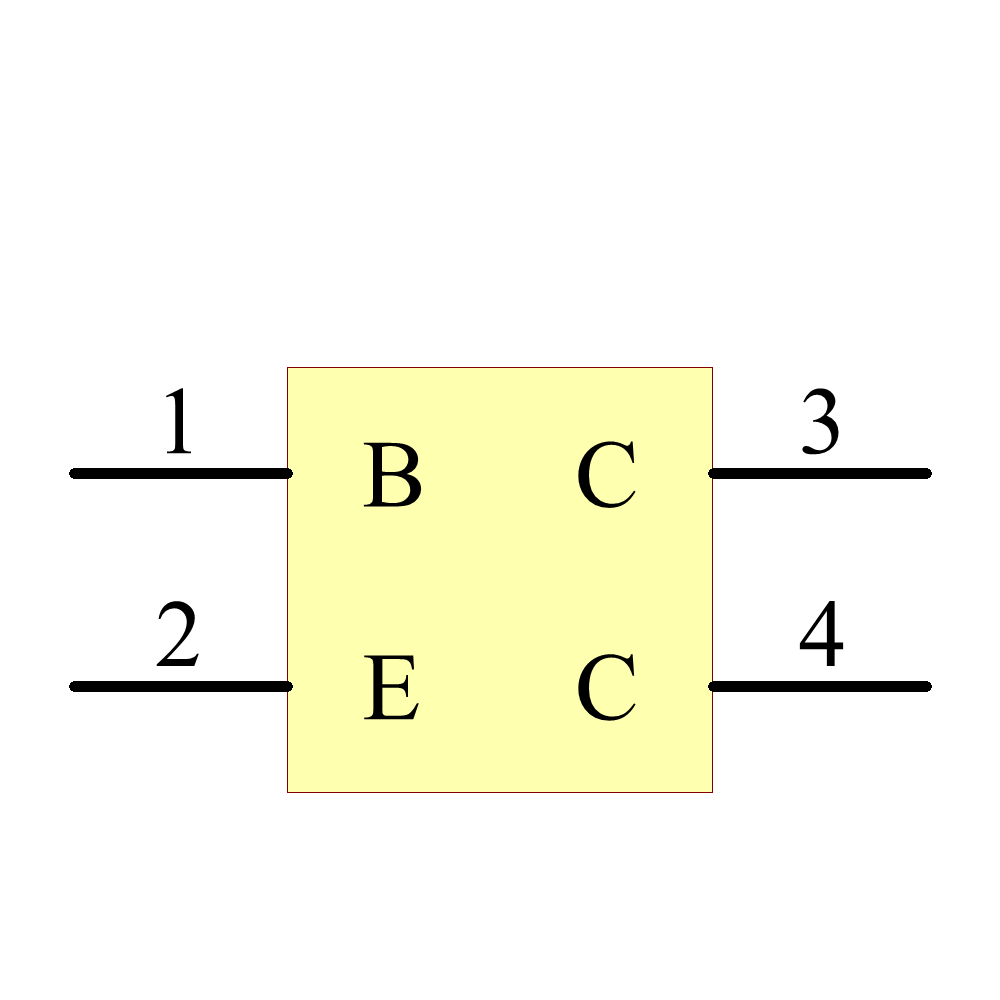

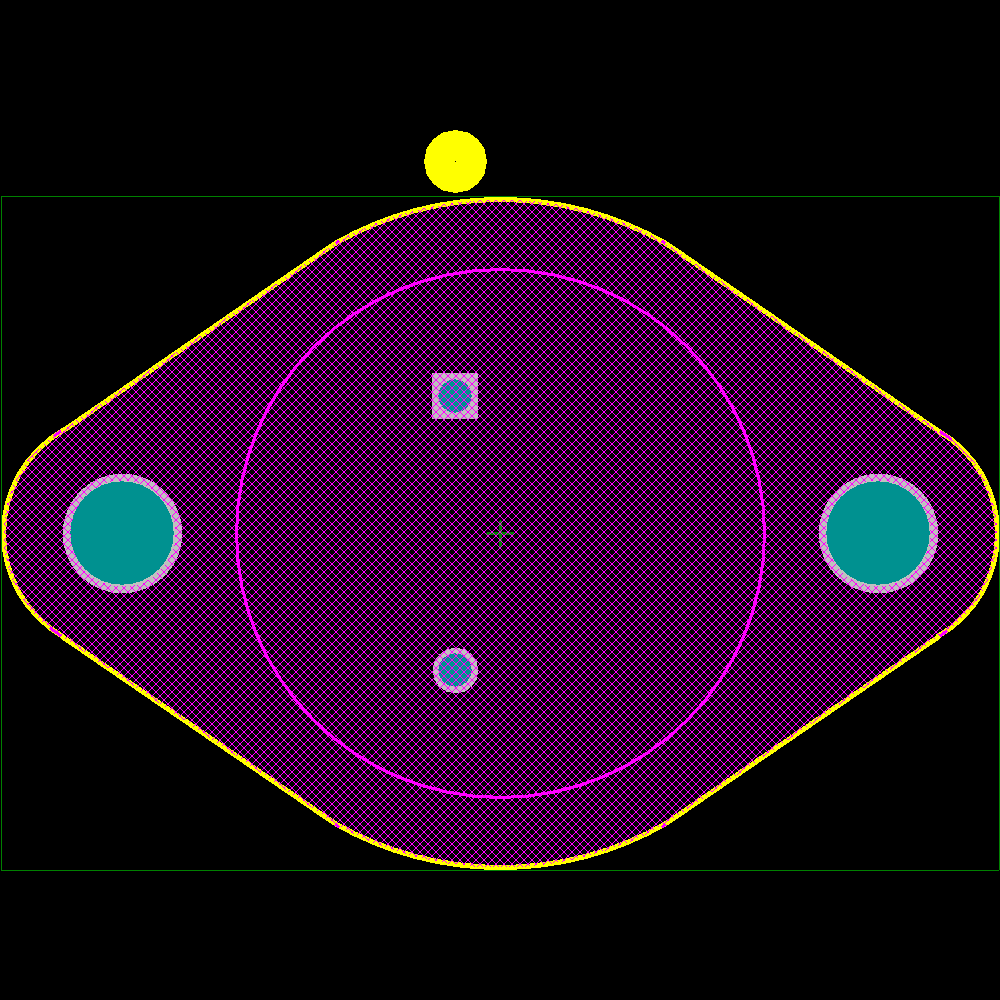

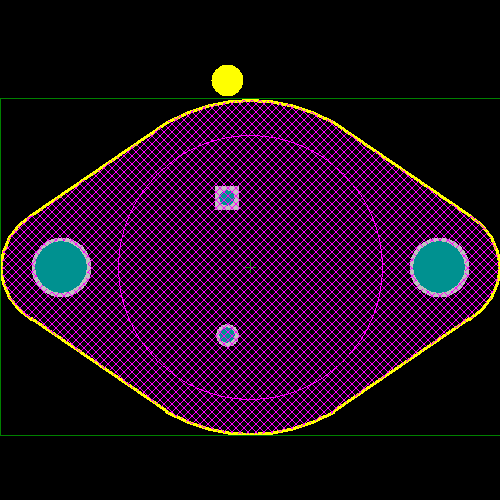

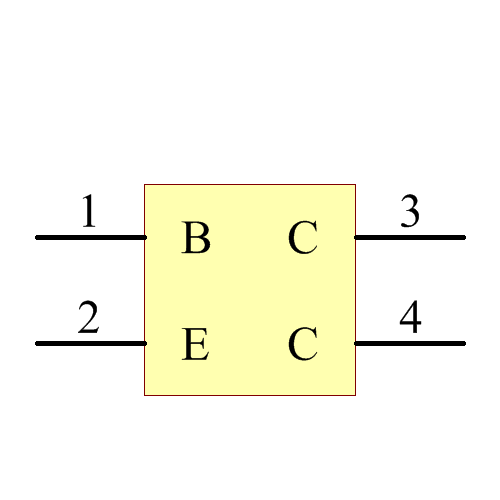

Images
