2N5191G - onsemi

Bipolar (BJT) Single Transistor, NPN, 60 V, 4 A, 40 W, TO-225AA, Through Hole

Technical Details

Case/Package	TO-225
China RoHS	Compliant
Collector Base Voltage (VCBO)	60V
Collector Emitter Breakdown Voltage	60V
Collector Emitter Saturation Voltage	1.4V
Collector Emitter Voltage (VCEO)	60V
Country of Origin	Mainland China
Current Rating	4A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	2MHz
Gain Bandwidth Product	2MHz
Halogen Free	Halogen Free
Height	6.35mm
hFE Min	10
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	31.75mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	4A
Max Frequency	2MHz
Max Operating Temperature	150°C
Max Power Dissipation	40W
Min Operating Temperature	-65°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Bulk
Polarity	NPN
Power Dissipation	40W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	2MHz
Voltage Rating (DC)	60V
Weight	4.535924g
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

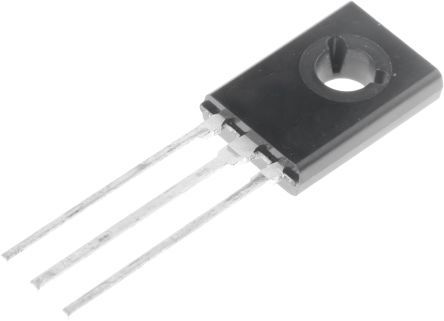

onsemi 2N5191G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

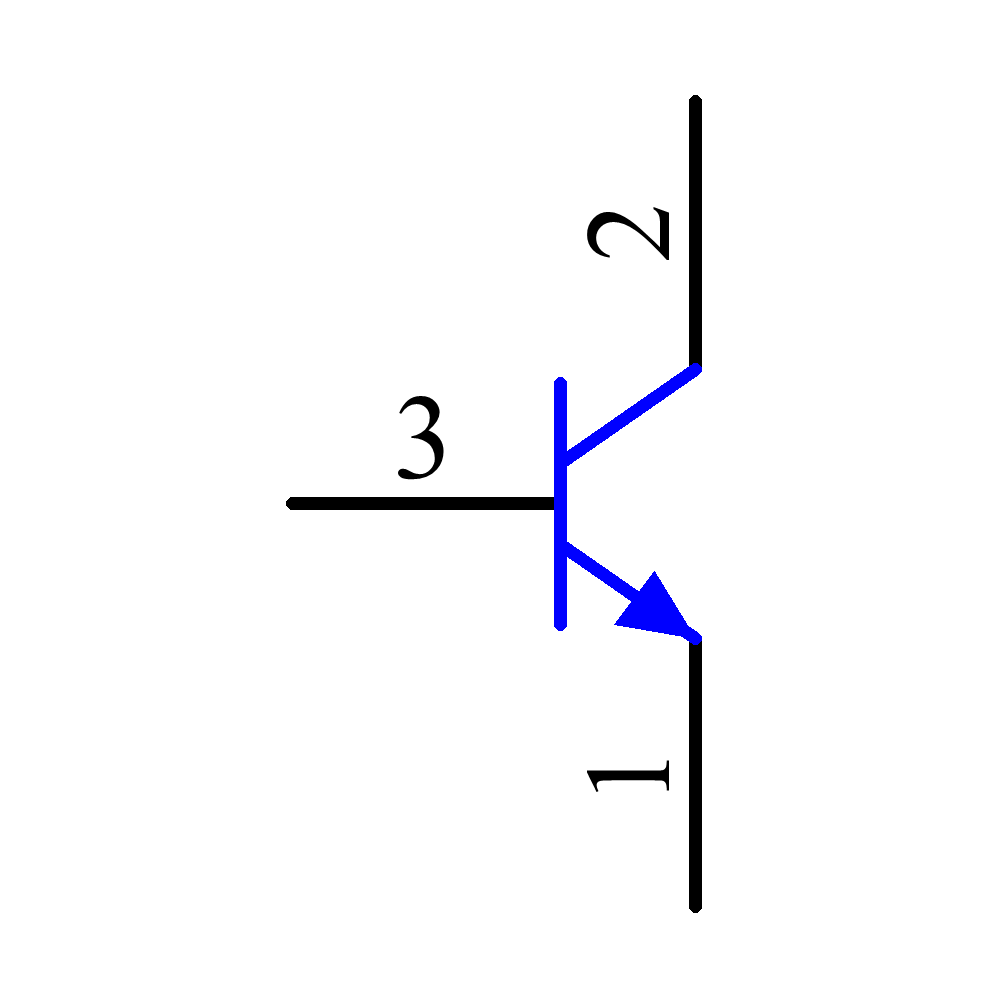

2N5191G Symbol - onsemi

2N5191G Symbol - onsemi

2N5191G Symbol - onsemi

2N5191G Symbol - onsemi

‹ ›

Footprint

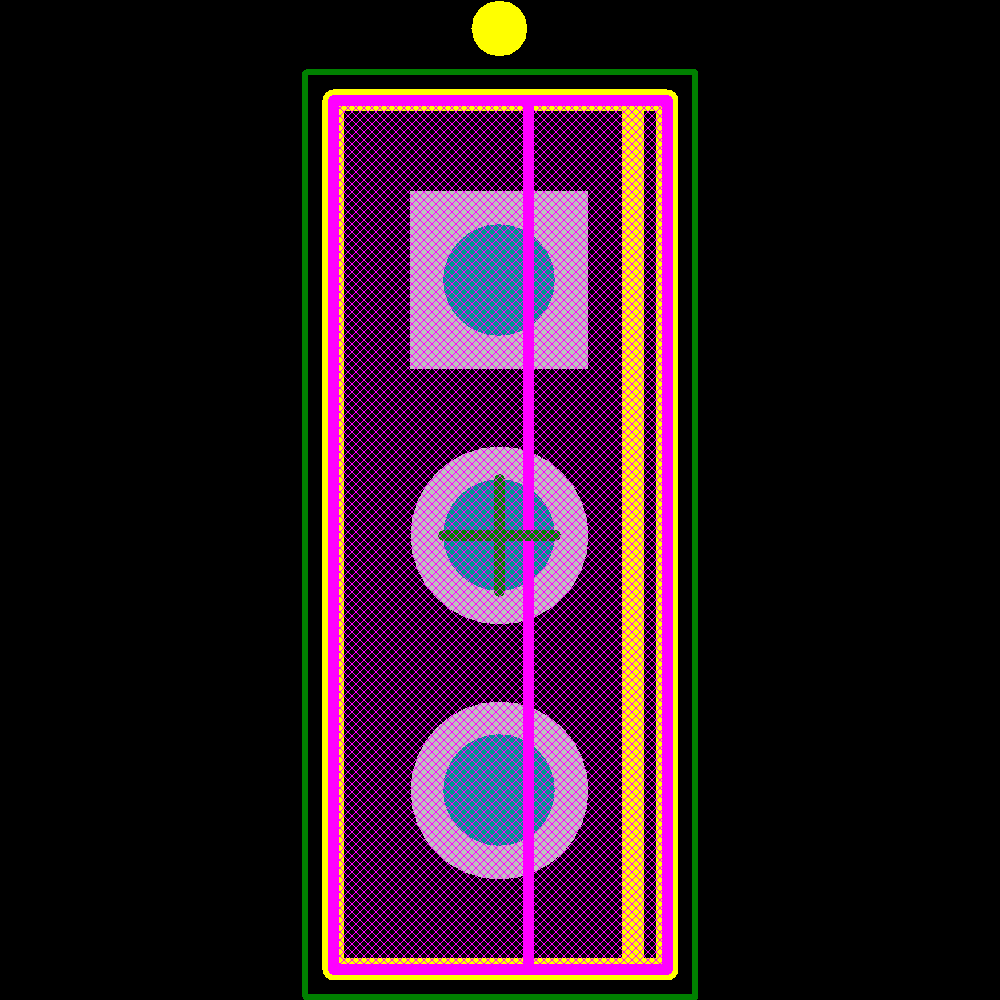

2N5191G Footprint - onsemi

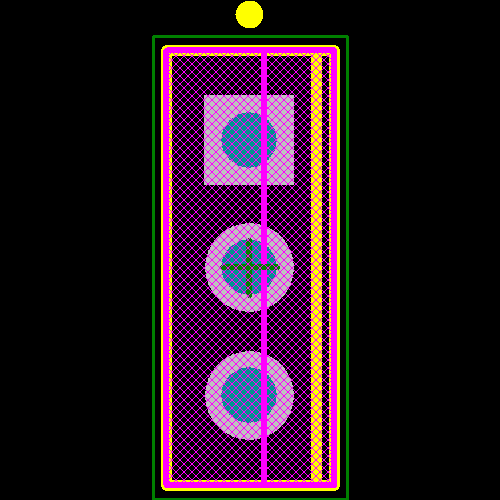

2N5191G Footprint - onsemi
