Technical Details
| Breakdown Voltage | -30V |
| Case/Package | TO-92 |
| Continuous Drain Current (ID) | 1.5mA |
| Current Rating | 7mA |
| Drain to Source Voltage (Vdss) | 30V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -30V |
| Height | 4.78mm |
| Introduction Date | 2003-10-14 |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Lifecycle Status | Obsolete |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 350mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 350mW |
| RoHS | Compliant |
| Voltage Rating | 30V |
| Voltage Rating (DC) | 4V |
| Weight | 200.998119mg |
| Width | 4.19mm |
Compliance
RoHS : Unconfirmed

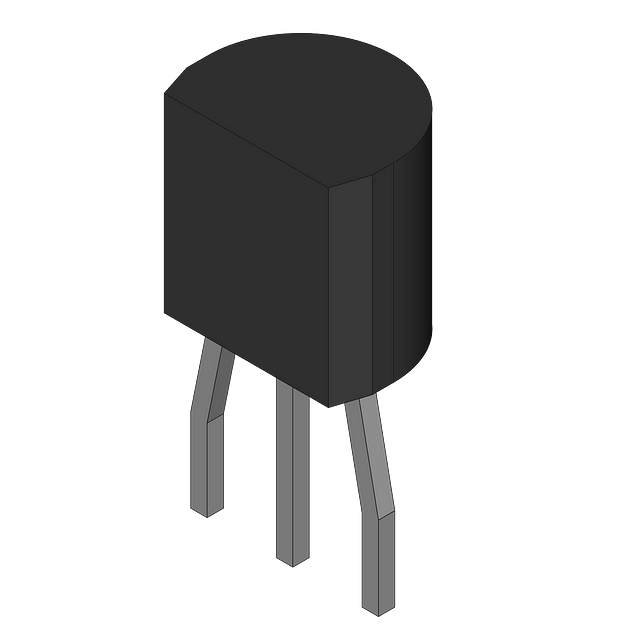

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 24824
|
$ | 0.3831 | 0.318 | 0.2835 | |||||
| Verical |
US: 16901
|
$ | 0.3975 | 0.3544 | ||||||
| Verical |
US: 6150
|
$ | 0.3975 | 0.3544 | ||||||
