2N6286 - onsemi
Power Bipolar Transistor, 20A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-204AA, Metal, 2 Pin
Technical Details
| Body Material | Metal |
| Case/Package | TO-204-2 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Voltage (VCEO) | 80V |
| Continuous Collector Current | 20A |
| Current Rating | -20A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 100 |
| Introduction Date | 1979-06-29 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Collector Current | 20A |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 160W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 160W |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Transition Frequency | 4MHz |
| Voltage Rating (DC) | -80V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

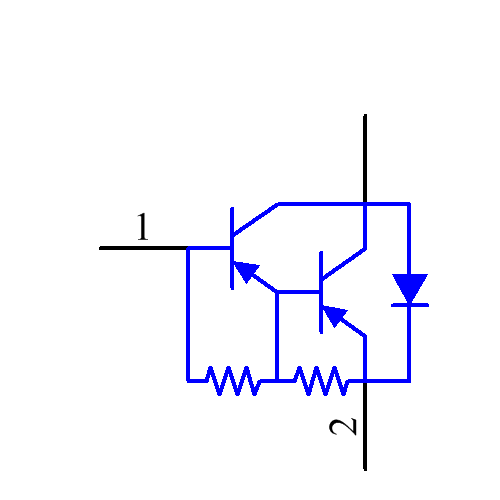

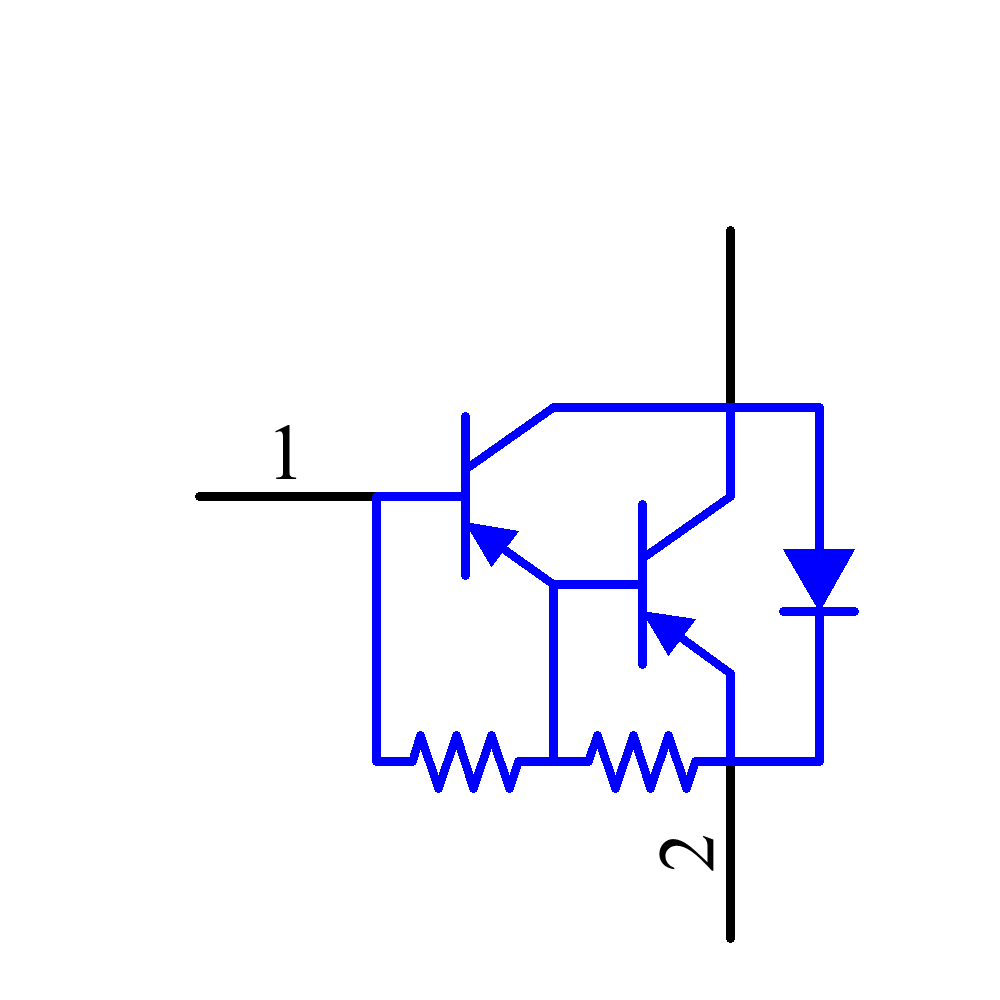

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | EOL |
